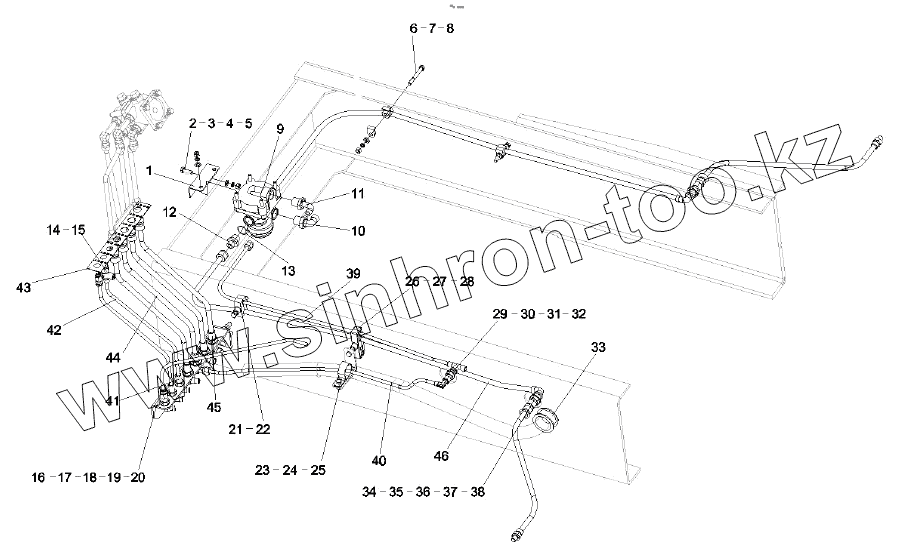

Каталог запасных частей к технике: SANY SY5250GJB6C. 10929319 Cab lower pipeline installation
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | А820101347822 | Plate, , fixing, valve, relay | |
| 2 | А210111000090 | Bolt | |
| 3 | А210307000012 | Nut | |
| 4 | А210401000017 | Washer 8gb93 | |
| 5 | А210405000007 | Washer | |
| 6 | А210110000306 | Bolt | |
| 7 | А229900004283 | Bracket, lower, clamp, pipe, single | |
| 8 | А229900004282 | Bracket, upper, clamp, pipe, single | |
| 9 | 60016876 | Valve, relay | |
| 10 | А229900003050 | Adaptor, right angle, adjustable | |
| 11 | А229900003046 | Adaptor, right angle, adjustable | |
| 12 | А210770000392 | Connector, pipe | |
| 13 | А229900002973 | Washer, seal | |
| 14 | А229900004146 | Connector, tee | |
| 15 | В210780001045 | Connector, pipe | |
| 16 | 10467263 | Bracket, hose | |
| 17 | А210111000027 | Bolt | |
| 18 | А210307000017 | Nut | |
| 19 | А210401000001 | Washer | |
| 20 | А210405000011 | Washer | |
| 21 | А229900004205 | Bracket, lower, double pipe clamp | |
| 22 | А229900004204 | Bracket, upper, double pipe clamp | |
| 23 | А229900003851 | Clamp, cord | |
| 24 | А210111000089 | Bolt | |
| 25 | А820101338919 | Bracket, hose | |
| 26 | А210111000096 | Bolt | |
| 27 | А229900004346 | Bracket, upper, , four-pipe clamp | |
| 28 | А229900004347 | Bracket, lower, four-pipe clamp | |
| 29 | 10206934 | Connector, tee | |
| 30 | В210780000418 | Connector, pipe | |
| 31 | А210334000015 | Nut | |
| 32 | А210431000005 | Washer | |
| 33 | А820606030810 | Ring, through, wire | |
| 34 | А229900003250 | Connector, right angle, bulkhead | |
| 35 | А229900004442 | Body, connector, through, clamp end | |
| 36 | А210431000006 | Washer | |
| 37 | А229900003129 | Hose, brake | |
| 38 | А210338000000 | Nut | |
| 39 | А819700001855 | Tube GP, nylon | |
| 40 | А819700001858 | Tube GP, nylon | |
| 41 | А210748300000 | Body, connector | |
| 42 | А229900005304 | Hose, brake | |
| 43 | А820101041223 | Mark, bracket, hose | |
| 44 | А229900005108 | Hose, brake | |
| 45 | 10206989 | Connector body | |
| 46 | А819700001836 | Tube GP, nylon |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
