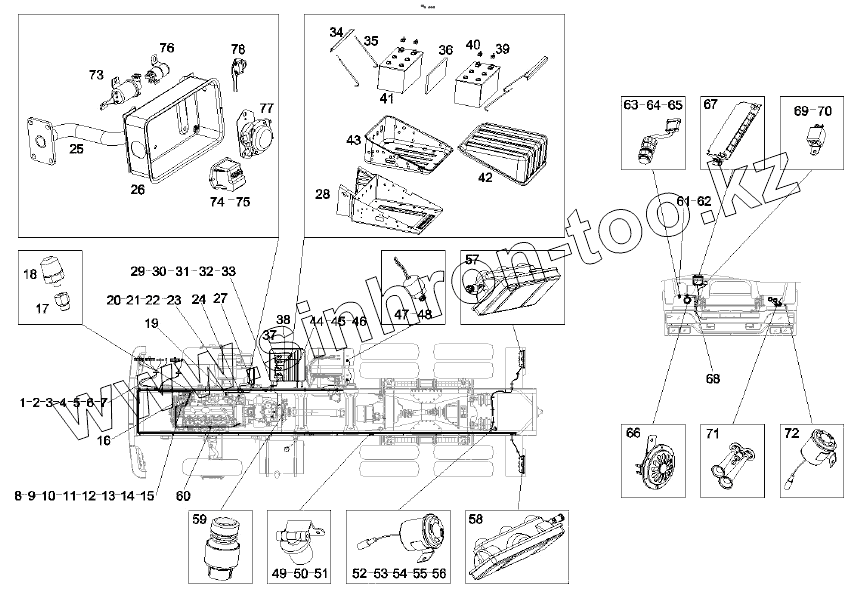

Каталог запасных частей к технике: SANY SY5250GJB6C. 10783745 Chassis electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 10783677 | Harness GP, chassis | |
| 2 | А820606030809 | Ring, through, wire | |
| 3 | А249900000765 | Ring, wire through | |
| 4 | А820606030847 | Ring, through, wire | |
| 5 | А820606030970 | Ring, through, wire | |
| 6 | А229900003076 | Clamp, cord | |
| 7 | А249900001458 | Clamp, cord | |
| 8 | 10034117 | Bracket, fixed, harness, engine | |
| 9 | А229900004673 | Clamp | |
| 10 | А210111000089 | Bolt | |
| 11 | А210111000092 | Bolt | |
| 12 | А210307000012 | Nut | |
| 13 | А210405000007 | Washer | |
| 14 | А210401000017 | Washer 8gb93 | |
| 15 | Ю444140 | Ring, through, wire, harness, engine | |
| 16 | 10034119 | Bracket, fixed, harness, engine | |
| 17 | 10024625 | Connector, sensor, pressure | |
| 18 | В240600000007 | Sensor, pressure | |
| 19 | А810201058834 | Fusible electric cable GP | |
| 20 | А210111000027 | Bolt | |
| 21 | А210307000017 | Nut | |
| 22 | А210405000011 | Washer | |
| 23 | А210401000001 | Washer | |
| 24 | 60012781 | Line, power supply | |
| 25 | А810422002581 | Bracket GP, electric control box | |
| 26 | А249900001418 | Box, appliance, electric | |
| 27 | 60012784 | Line, power supply | |
| 28 | 60006735 | Battery tank body assembly | |
| 29 | А210111000448 | Bolt | |
| 30 | А210114000040 | Bolt | |
| 31 | А210114000014 | Bolt | |
| 32 | А210319000024 | Nut | |
| 33 | А210319000013 | Nut | |
| 34 | 10183905 | Strip, pressure, battery | |
| 35 | 10183907 | Hook, towing, pressure strip | |
| 36 | А820604000197 | Bulkhead, battery | |
| 37 | 60012789 | Line, power supply | |
| 38 | 60012804 | Line, power supply | |
| 39 | 60013321 | Battery Terminal As - Negative | |
| 40 | 60013322 | Battery Terminal As - Positive | |
| 41 | 60071633 | Battery | |
| 42 | А229900003077 | Battery tank cover assembly | |
| 43 | А229900007325 | Lining, inner, frame, battery | |
| 44 | А210111000090 | Bolt | |
| 45 | А210404000005 | Washer | |
| 46 | А210404000004 | Washer | |
| 47 | 60027400 | Switch, air pressure, low | |
| 48 | А229900003353 | Washer, seal | |
| 49 | А220400000515 | Valve, air, electromagnetic | |
| 50 | 10618981 | Bracket, valve, air, electromagnetic | |
| 51 | А210111000091 | Bolt | |
| 52 | А249900000826 | Buzzer, reversing | |
| 53 | А210111000080 | Bolt | |
| 54 | А210307000016 | Nut | |
| 55 | А210404000009 | Washer | |
| 56 | А210401000016 | Washer | |
| 57 | А241100000622 | Right combination tail light assembly | |
| 58 | А241100000623 | Left combinition tail lamp assembly | |
| 59 | 60009094 | Sensor, mileage, speed | |
| 60 | 10188994 | Bracket, fixed, harness, engine | |
| 61 | А210210000005 | Screw | |
| 62 | А210405000006 | Washer | |
| 63 | 11076522 | Bracket, switch, proximity | |
| 64 | А241200000648 | Switch, proximity | |
| 65 | А210264000004 | Screw, tapping | |
| 66 | А240500000097 | Electric horn assembly | |
| 67 | В249900001220 | Box, control, ECU | |
| 68 | А820101339728 | Bracket, fixed, harness | |
| 69 | В240700000432 | Relay, ECU | |
| 70 | А210202000028 | Screw | |
| 71 | А240500000091 | Horn, air, two tone, electric control | |
| 72 | А249900000825 | Annunciator | |
| 73 | А240700000335 | Relay | |
| 74 | В240700000433 | Relay | |
| 75 | А210111000081 | Bolt | |
| 76 | В240700000375 | Relay, breaker | |
| 77 | В240700000378 | Relay, battery | |
| 78 | А241200000699 | Switch, lifter, hydraulic |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
