60046501 Pump & Tube, Fuel Injection

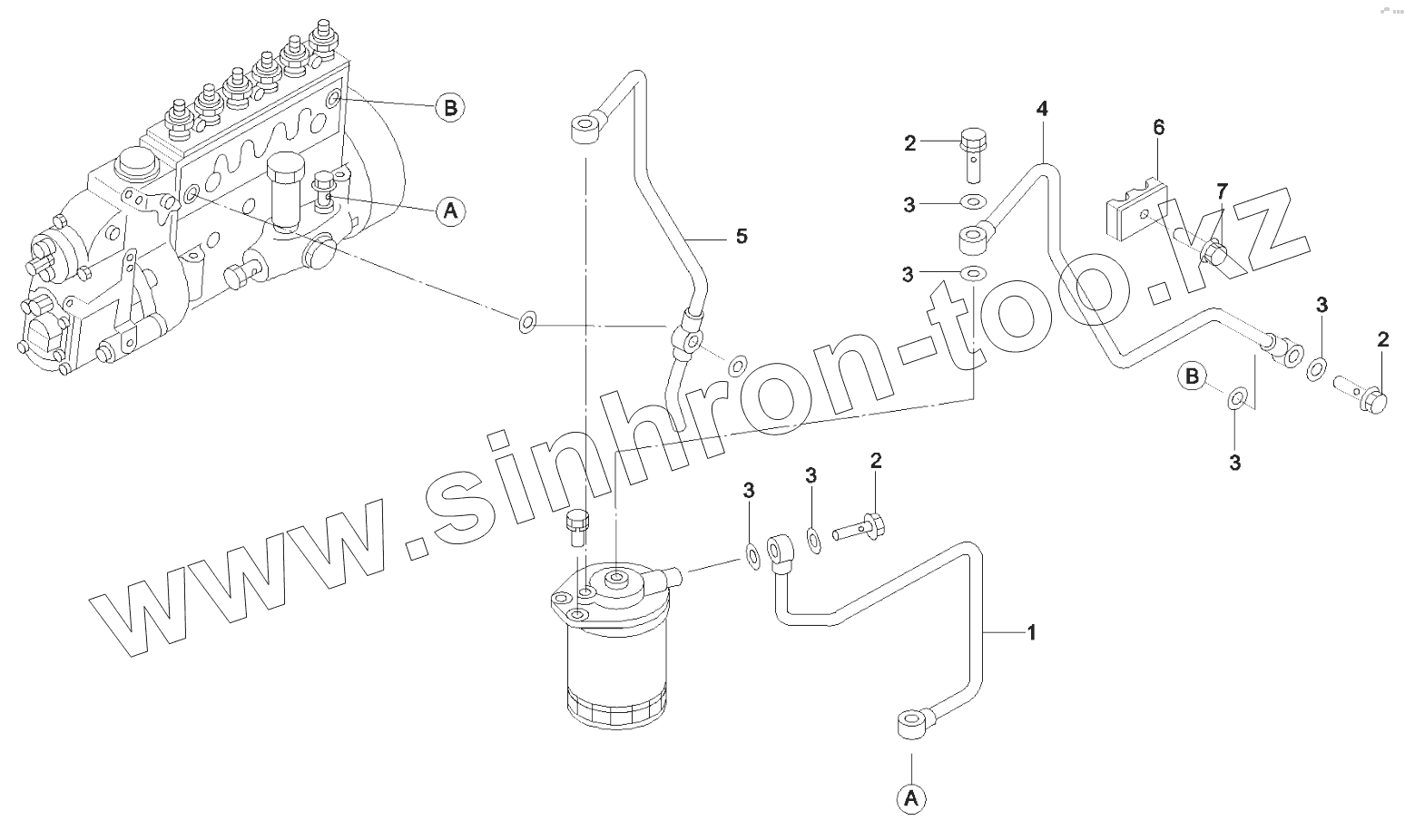

Каталог запасных частей к технике: SANY SY335C8. 60046501 Pump & Tube, Fuel Injection
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
QY50CS93
RSC45C
RSC45C
SDCY90K6C
SSR120AC-8
STC250H
STC250S5
STG190C-8
SY135C8
SY210C8
SY215C9
SY335C8
SY5250GJB6C
SY5320THB 470C-8S
SY55C9
SY65C
SY75C
SY75C9I2H
SYM5190THBDZ 30
YZ18C
YZ20C
Схема
>
Не выбрано
11094238 Hydraulic Excavator SY335C8
11174503 Slewing device
11454048 Pipeline, main, hydraulic
11454048 Pipeline, main, hydraulic
11454048 Pipeline, main, hydraulic
A810201024318 Hose AS, oil outlet
A810201010292 Tank, hydraulic
B220301000357 Pump, plunger
60083712 Body, pump
60083712 Body, pump
60015495 Pump, gear
60063719 Regulator, main pump
60063719 Regulator, main pump
B220401000190 Valve, main control
B220401000190 Valve, main control
B220401000190 Valve, main control
B220401000190 Valve, main control
B220401000190 Valve, main control
A810101040144 Dynamic System
A810102060101 Damping & drive system
A810102070197 Exhaust system
A810102090112 Cooling System
A810102070196 Air inlet system
A810102020174 Fuel System
10186452 Tank GP, fuel
A810102010094 Control system, throttle
60046506 Kit, Gasket (Engine)
60046516 Cover GP, Valve Mechanism
60046515 Cylinder Head AS
60046508 Cylinder Block
60046520 Oil Pan & Lever Gauge (Engine)
60046519 Camshaft & Valve Mechanism
60046519 Camshaft & Valve Mechanism
60046517 Crank Connecting Rod & Flywheel
60046521 Timing gearbox and flywheel housing
60046512 Manifold GP, Air Inlet
60046514 Manifold GP, Exhaust
60046497 Breathing System
60046502 Pump, Water
60046511 Thermostat & Housing
60046507 Hose, Water (Engine)
60046522 Fan & Belt, Fan
60046500 Turbocharger
60046498 Fuel Injection System
60046498 Fuel Injection System
60046498 Fuel Injection System
60046501 Pump & Tube, Fuel Injection
60046503 Cooler & Filter, Oil
60046503 Cooler & Filter, Oil
60046509 Oil Pump & Strainer
60046510 Lines GP, Engine Oil
60046510 Lines GP, Engine Oil
60046496 Parts, Electric Control
B229900002662 Stopper, electric
60046524 Battery & Cable
60046513 Coupling Equipment & Injector
60046525 Throttle Pedal & Controller
60046499 Radiator
60046504 Air Cleaner
60046523 Gauge Panel Switches & Other Parts
11174009 Pipeline AS, pilot
11176298 Pipeline AS, PPC
11176298 Pipeline AS, PPC
11176298 Pipeline AS, PPC
60004101 Valve, foot
60004101 Valve, foot
60004101 Valve, foot
B220401001302 Valve, pilot, manual
11176768 Pipeline AS, main pump
11176769 Pipeline AS, main valve
11176769 Pipeline AS, main valve
11176771 Pipeline AS, solenoid valve
11176771 Pipeline AS, solenoid valve
11103995 Cab AS
10458174 Seat and control console AS
11077329 Support, bottom plate
A810201073014 Control mechanism, travel
11174464 Cover GP
A810502017037 Box GP
A810502017053 Box, battery
A810502020139 Handhold
A810502012205 Engine hood GP
A810502012201 Door GP
10123768 Cover
A81050201221 Plate
11174026 Bearing AS, swing
B229900002356 Slewing ring AS
10491310 Air conditioning system
A221600000159 Air conditioner unit AS
10473304 Electrical system, air conditioner
11267293 Counterweight AS
11172946 Travel device
11172946 Travel device
11172946 Travel device
B229900000631 Roller, carrier
60013106 Tensioner
B229900000634 Idler
A229900006372 Track AS
B229900000632 Roller, track
11172918 Pipeline, hydraulic, lower frame AS
B229900000630 Joint, swivel
B220501000129 Reducer AS
B220501000129 Reducer AS
B220501000129 Reducer AS
B220501000129 Reducer AS
B220501000129 Reducer AS
11173510 Work equipment AS
11173510 Work equipment AS
11173510 Work equipment AS
11316441 Pipeline, hydraulic, work equipment AS
11219749 Pipeline, boom cylinder
A810201000218 Clip GP, pipe
11219748 Pipeline, arm cylinder
A810201064381 Pipeline, bucket cylinder
A810201069086 Clip GP, pipe
11219750 Pipeline, boom cylinder
A810312990198 Clip GP, pipe
10976498 Bucket
11098658 Electrical System
11098658 Electrical System
11165195 Painting
11165195 Painting
A810502012203 Door AS - LH
Other Fittings
1
2
2
2
3
3
3
3
3
3
4
5
6
7
Позиция на иллюстрации
Заводской номер детали
Название детали
1
B229900004288
Tube AS
2
B210199000025
Bolt
3
B229900002619
Shim
4
B229900004289
Tube AS
5
B229900004291
Tube AS
6
B229900004709
Clamp
7
B229900004920
Bolt
