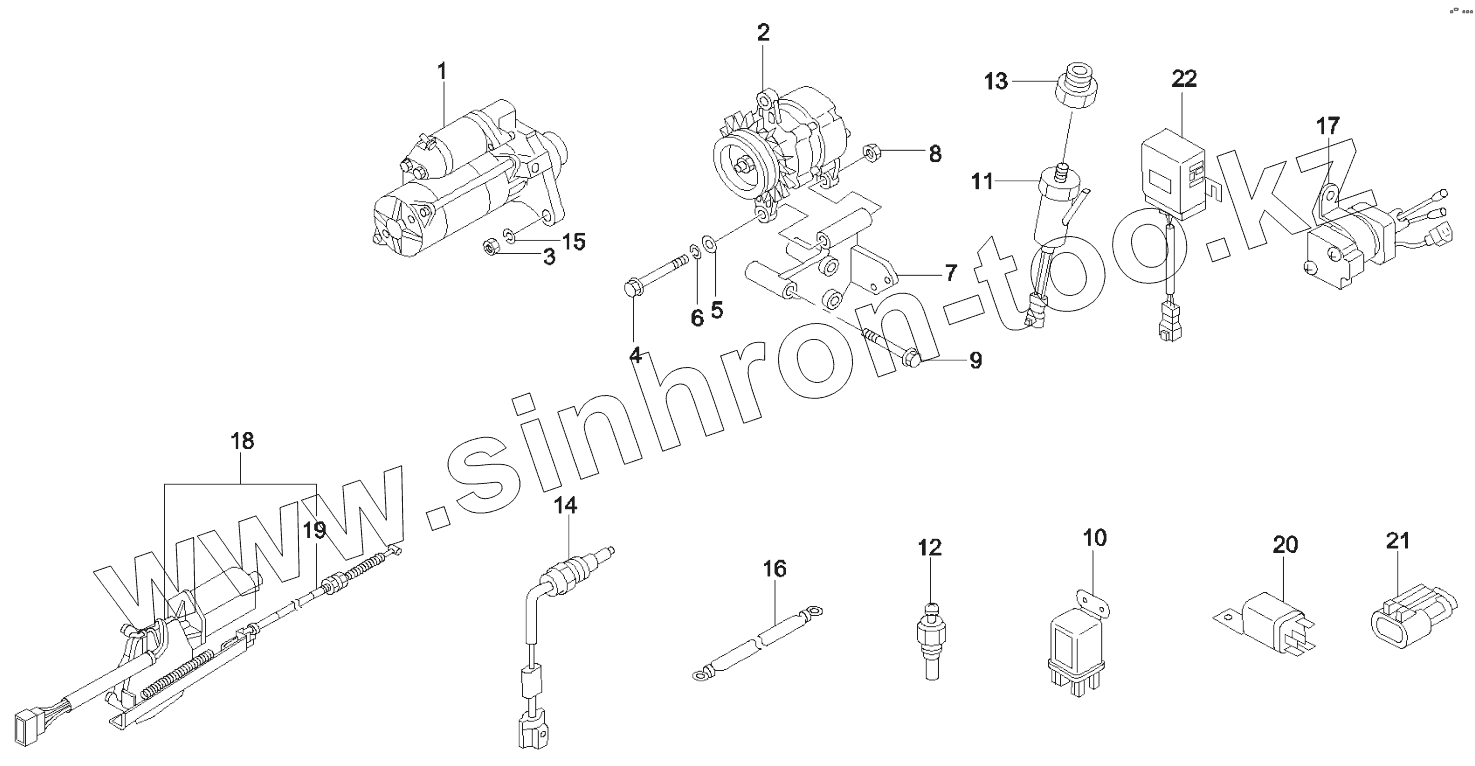

Позиция на иллюстрации
Заводской номер детали
Название детали
1
B220501000293
Starting Motor
2
60136798
GENERATOR ASM
3
B229900004794
Nut
4
B229900004922
Bolt
5
B229900004582
Washer
6
B229900004581
Washer
7
B229900004685
Bracket, Alternator
8
B229900004813
Nut
9
B229900004891
Bolt
10
B249900001038
Relay, Preheat Plug
11
B241200001057
Switch
12
B240600000267
Sensor, temperature
13
B240600000332
Sensor
14
B241200001055
Sensor, water temperature
15
B229900004614
Washer
16
B241300000087
Cable
17
B240700000382
Relay, safety
18
B229900002662
Stopper, electric
19
B241300000086
Cable
20
B249900001039
Relay, Stopper
21
B249900001339
Connector
22
B229900002661
Controller, Preheater
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
