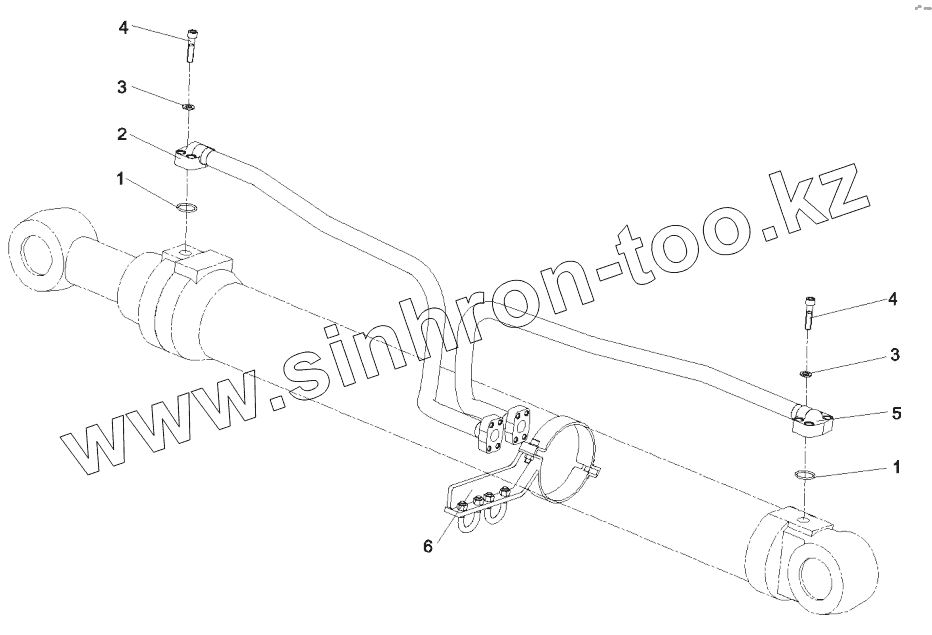

5. 11219750 Pipeline, boom cylinder

Каталог запасных частей к технике: SANY SY335C8. 11219750 Pipeline, boom cylinder

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано QY50CS93 RSC45C RSC45C SDCY90K6C SSR120AC-8 STC250H STC250S5 STG190C-8 SY135C8 SY210C8 SY215C9 SY335C8 SY5250GJB6C SY5320THB 470C-8S SY55C9 SY65C SY75C SY75C9I2H SYM5190THBDZ 30 YZ18C YZ20C

Схема > Не выбрано 11094238 Hydraulic Excavator SY335C8 11174503 Slewing device 11454048 Pipeline, main, hydraulic 11454048 Pipeline, main, hydraulic 11454048 Pipeline, main, hydraulic A810201024318 Hose AS, oil outlet A810201010292 Tank, hydraulic B220301000357 Pump, plunger 60083712 Body, pump 60083712 Body, pump 60015495 Pump, gear 60063719 Regulator, main pump 60063719 Regulator, main pump B220401000190 Valve, main control B220401000190 Valve, main control B220401000190 Valve, main control B220401000190 Valve, main control B220401000190 Valve, main control A810101040144 Dynamic System A810102060101 Damping & drive system A810102070197 Exhaust system A810102090112 Cooling System A810102070196 Air inlet system A810102020174 Fuel System 10186452 Tank GP, fuel A810102010094 Control system, throttle 60046506 Kit, Gasket (Engine) 60046516 Cover GP, Valve Mechanism 60046515 Cylinder Head AS 60046508 Cylinder Block 60046520 Oil Pan & Lever Gauge (Engine) 60046519 Camshaft & Valve Mechanism 60046519 Camshaft & Valve Mechanism 60046517 Crank Connecting Rod & Flywheel 60046521 Timing gearbox and flywheel housing 60046512 Manifold GP, Air Inlet 60046514 Manifold GP, Exhaust 60046497 Breathing System 60046502 Pump, Water 60046511 Thermostat & Housing 60046507 Hose, Water (Engine) 60046522 Fan & Belt, Fan 60046500 Turbocharger 60046498 Fuel Injection System 60046498 Fuel Injection System 60046498 Fuel Injection System 60046501 Pump & Tube, Fuel Injection 60046503 Cooler & Filter, Oil 60046503 Cooler & Filter, Oil 60046509 Oil Pump & Strainer 60046510 Lines GP, Engine Oil 60046510 Lines GP, Engine Oil 60046496 Parts, Electric Control B229900002662 Stopper, electric 60046524 Battery & Cable 60046513 Coupling Equipment & Injector 60046525 Throttle Pedal & Controller 60046499 Radiator 60046504 Air Cleaner 60046523 Gauge Panel Switches & Other Parts 11174009 Pipeline AS, pilot 11176298 Pipeline AS, PPC 11176298 Pipeline AS, PPC 11176298 Pipeline AS, PPC 60004101 Valve, foot 60004101 Valve, foot 60004101 Valve, foot B220401001302 Valve, pilot, manual 11176768 Pipeline AS, main pump 11176769 Pipeline AS, main valve 11176769 Pipeline AS, main valve 11176771 Pipeline AS, solenoid valve 11176771 Pipeline AS, solenoid valve 11103995 Cab AS 10458174 Seat and control console AS 11077329 Support, bottom plate A810201073014 Control mechanism, travel 11174464 Cover GP A810502017037 Box GP A810502017053 Box, battery A810502020139 Handhold A810502012205 Engine hood GP A810502012201 Door GP 10123768 Cover A81050201221 Plate 11174026 Bearing AS, swing B229900002356 Slewing ring AS 10491310 Air conditioning system A221600000159 Air conditioner unit AS 10473304 Electrical system, air conditioner 11267293 Counterweight AS 11172946 Travel device 11172946 Travel device 11172946 Travel device B229900000631 Roller, carrier 60013106 Tensioner B229900000634 Idler A229900006372 Track AS B229900000632 Roller, track 11172918 Pipeline, hydraulic, lower frame AS B229900000630 Joint, swivel B220501000129 Reducer AS B220501000129 Reducer AS B220501000129 Reducer AS B220501000129 Reducer AS B220501000129 Reducer AS 11173510 Work equipment AS 11173510 Work equipment AS 11173510 Work equipment AS 11316441 Pipeline, hydraulic, work equipment AS 11219749 Pipeline, boom cylinder A810201000218 Clip GP, pipe 11219748 Pipeline, arm cylinder A810201064381 Pipeline, bucket cylinder A810201069086 Clip GP, pipe 11219750 Pipeline, boom cylinder A810312990198 Clip GP, pipe 10976498 Bucket 11098658 Electrical System 11098658 Electrical System 11165195 Painting 11165195 Painting A810502012203 Door AS - LH Other Fittings

1

1

2

3

3

4

4

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
1	B230101000456		O-ring
2	11138238		Tube AS - Rh
3	A210405000001		Washer
4	21027533		Screw
5	A810201066630		Tube AS
6	A810312990198		Clip GP, pipe

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
