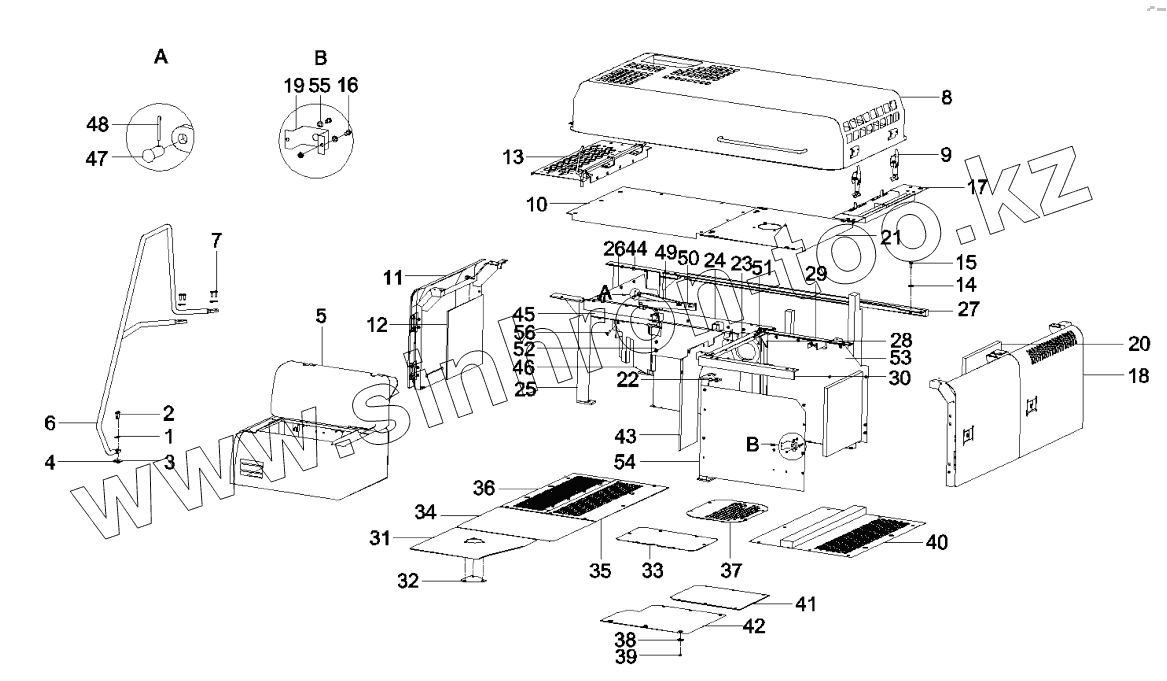

Каталог запасных частей к технике: SANY SY335C8. 11174464 Cover GP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | A210491000121 | Washer | |
| 2 | A210111000204 | Bolt | |
| 3 | A820101210711 | Shim | |
| 4 | A820101210712 | Shim | |
| 5 | A810502017037 | Box GP | |
| 6 | A810502020139 | Handhold | |
| 7 | A210111000203 | Bolt | |
| 8 | A810502012205 | Engine hood GP | |
| 9 | A222200000065 | Lock, door | |
| 10 | 10185741 | Cover | |
| 11 | A810502012201 | Door GP | |
| 12 | 11132411 | Foam | |
| 13 | 10123768 | Cover | |
| 14 | A210404000004 | Washer, 12 GB96.1 | |
| 15 | A210111000202 | Bolt | |
| 16 | A210210000019 | Screw | |
| 17 | A810502012207 | Cover | |
| 18 | Door GP | Door GP | |
| 19 | A820101216763 | Parts book, mounting bracket, | |
| 20 | A820699000224 | Sponge, noise reduction, cab door | |
| 21 | A810502012210 | Cover plate | |
| 22 | A810502015201 | Support | |
| 23 | 10185739 | Beam, connecting | |
| 24 | A810502015192 | Beam, cross | |
| 25 | A810502015197 | Bracket | |
| 26 | A810502015195 | Bracket | |
| 27 | A810502015193 | Beam, cross | |
| 28 | A810502015198 | Bracket | |
| 29 | A810502015253 | Beam, air cleaner | |
| 30 | A810502015202 | Beam, connecting, air cleaner | |
| 31 | 11178776 | Cover plate GP, bottom | |
| 32 | 10186779 | Coverplate | |
| 33 | 10842737 | Cover, lower, main valve | |
| 34 | 11178765 | Cover | |
| 35 | A810502012251 | Cover | |
| 36 | A820101342509 | Cover | |
| 37 | 10179546 | Coverplate, bottom, engine | |
| 38 | A820299000383 | Sleeve, spacer | |
| 39 | A210401000002 | Washer | |
| 40 | A810502015199 | Cover | |
| 41 | A820101219918 | Cover | |
| 42 | A820101219919 | Cover | |
| 43 | 10185720 | Plate, retaining | |
| 44 | 11130321 | Plate, partition | |
| 45 | 10122472 | Partition - Side | |
| 46 | 10123756 | Partition - Bottom | |
| 47 | A210508000009 | Roll, pin | |
| 48 | A210491000014 | Pin | |
| 49 | A810502015065 | Bar, support | |
| 50 | A820302010101 | Rod, bearing | |
| 51 | A810502012215 | Plate | |
| 52 | A810502012214 | Plate | |
| 53 | A810502012250 | Baffle | |
| 54 | A810502012219 | Baffle, cab | |
| 55 | A210405000007 | Washer | |
| 56 | A210111000199 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
