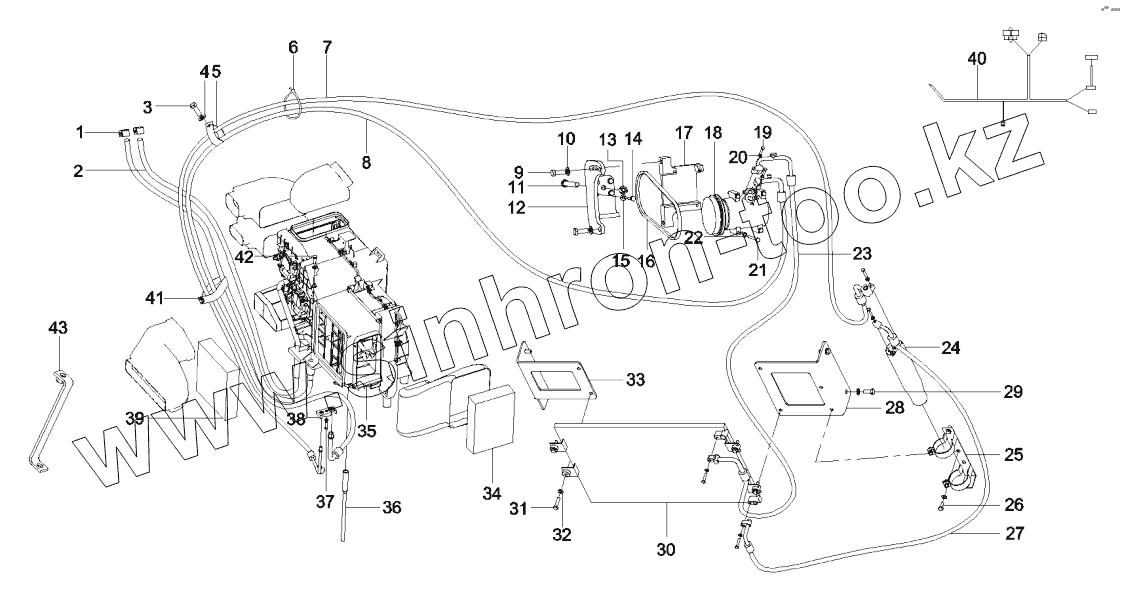

Каталог запасных частей к технике: SANY SY335C8. 10491310 Air conditioning system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | A210855000005 | Hoop | |
| 2 | 10491107 | Hose, rubber | |
| 3 | A210111000199 | Bolt | |
| 4 | A210405000001 | Washer | |
| 5 | A230200000177 | Clamp, cord | |
| 6 | A239900000066 | Bandage, nylon | |
| 7 | 60006323 | Hose | |
| 8 | 60001236 | Hose | |
| 9 | A210111000208 | Bolt | |
| 10 | A210444000001 | Washer | |
| 11 | A210111000446 | Bolt | |
| 12 | A810505011071 | Bracket, compressor | |
| 13 | A210307000005 | Nut | |
| 14 | A210111000026 | Bolt | |
| 15 | A210405000011 | Washer | |
| 16 | A230106000403 | V-belt | |
| 17 | 10144193 | Seat, adjusting | |
| 18 | B220203000007 | Compressor | |
| 19 | A210111000082 | Bolt | |
| 20 | A210405000006 | Washer | |
| 21 | A210108000097 | Bolt | |
| 22 | A210405000007 | Washer | |
| 23 | 60001233 | Hose, exhaust | |
| 24 | B229900005141 | Container, liquid storage | |
| 25 | A229900008784 | Support, container, liquid storage | |
| 26 | A210111000343 | Bolt | |
| 27 | 60001238 | Hose | |
| 28 | 10368412 | Bracket, right, condenser | |
| 29 | A210111000197 | Bolt | |
| 30 | A220700000028 | Condenser AS | |
| 31 | A210111000092 | Bolt | |
| 32 | A210404000005 | Washer | |
| 33 | 10368413 | Bracket, left, condenser | |
| 34 | B222100000660 | Filter, air, external | |
| 35 | A221600000159 | Air conditioner unit AS | |
| 36 | A229900009481 | Pipe, drainage | |
| 37 | A210204000132 | Screw | |
| 38 | B229900005758 | Connector, pipe | |
| 39 | B222100000711 | Filter, air, inner | |
| 40 | 10473304 | Electrical system, air conditioner | |
| 41 | A230200000178 | Clamp, cord | |
| 42 | A210111000323 | Bolt | |
| 43 | A810505990026 | Clip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
