13585283 Control mechanism of throttle SY215C9M2K

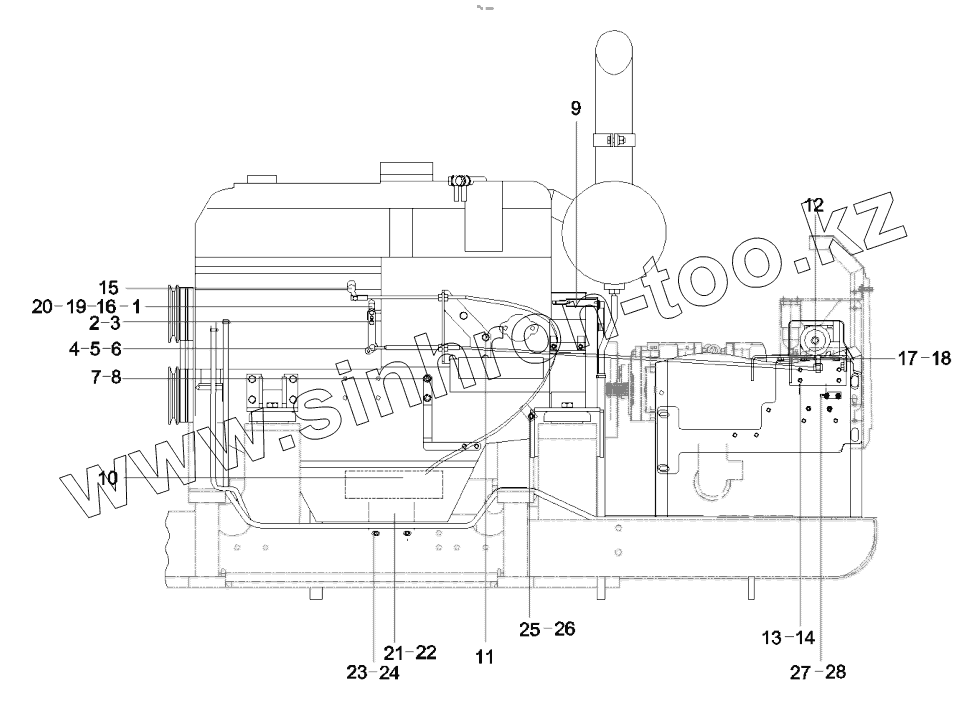

Каталог запасных частей к технике: SANY SY215C9. 13585283 Control mechanism of throttle SY215C9M2K
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
QY50CS93
RSC45C
RSC45C
SDCY90K6C
SSR120AC-8
STC250H
STC250S5
STG190C-8
SY135C8
SY210C8
SY215C9
SY335C8
SY5250GJB6C
SY5320THB 470C-8S
SY55C9
SY65C
SY75C
SY75C9I2H
SYM5190THBDZ 30
YZ18C
YZ20C
Схема
>
Не выбрано
12767364 Hydraulic excavator SY215C9
12777329 Slewing device
13371518 Pilot Pipeline SY215C9M2K.1.4D
11543868 Pipeline, PPC
11543868 Pipeline, PPC
B220401001302 Valve, pilot, manual
60170604 PVD8PC6008 Pilot-control Valve
60170604 PVD8PC6008 Pilot-control Valve
60170604 PVD8PC6008 Pilot-control Valve
13371515 Main pump pipeline SY215C9M2K.1.4D.2
60211330 Filter
12772920 Pipeline, main valve
12772913 Lines, solenoid valve
60136331 Valve GP, solenoid, directional
12773419 Cab
12302648 Body AS, machine
12302648 Body AS, machine
12302648 Body AS, machine
12302648 Body AS, machine
12302648 Body AS, machine
12302648 Body AS, machine
12302648 Body AS, machine
12302648 Body AS, machine
12302648 Body AS, machine
12302648 Body AS, machine
11654149 Body, machine
11654149 Body, machine
11654149 Body, machine
11654149 Body, machine
11646101 Plate GP, protect, decoration, inner
11646101 Plate GP, protect, decoration, inner
11646101 Plate GP, protect, decoration, inner
12302091 GPS Electrical systerm
12302091 GPS Electrical systerm
12302091 GPS Electrical systerm
A222200000147 Lock AS
11181278 Front window assembly
12076176 Control mechanism, travel
12971069 Seat and controlbox SY215C9.1.5.5C
60188806 Driver seat assembly
60204190 Armrest GP, right
60204189 Armrest AS, left
11540709 Support, bottom plate
10473822 Bearing AS, swing
13371489 Hydraulic main pipeline SY215C9M2K.1.2D
B229900006314 Reducer GP
60180834 Rotary motor
60180834 Rotary motor
60180834 Rotary motor
60180835 Rotary Reduction Gear
60180835 Rotary Reduction Gear
60008123 Valve, main control
60008123 Valve, main control
60008123 Valve, main control
60008123 Valve, main control
13371485 Oil return pipeline SY215C9M2K.1.2D.2
60008122 Pump, plunger
60081915 Pump GP, plunger
60000735 Pump, gear, pilot
60119021 Regulator
13252695 Hydraulic Fuel Tank Assy SY215C9M2K.1.2
11566113 Air conditioning system
60168171 Assembly, air conditioner unit
10473304 Electrical system, air conditioner
13587452 General assembly of covering parts SY215
13587452 General assembly of covering parts SY215
A810502020139 Handhold
12169042 Engine hood GP
13327885 Supporting bracket SY215C9A.1.6.1A
12698255 Door GP, right
12677408 Door, right
A810502014136 Bracket
13585342 Power system SY215C9M2KS.1.3B
A810102060152 Damping & drive system
A810102070274 Exhaust system
13370609 Cooling system SY215C9M2KS.1.3.3A
60195554 Radiator
13370645 Intake System SY215C9M2KS.1.3.4A
60207263 Air cleaner
A222100000410 Precleaner
13370650 Fuel System SY215C9M2KS.1.3.5A
13370650 Fuel System SY215C9M2KS.1.3.5A
13371269 Feul Tank Assy SY215C9.1.3.5.2A
60064763 Fuel coarse filter
13585283 Control mechanism of throttle SY215C9M2K
Р’220501000347 Motor, throttle
60126312 Extinction device SY-3776852
60162105 Engine
60028482 Cylinder Block AS
60028480 Cylinder Head AS
60028481 Cover GP, Valve Mechanism
60028481 Cover GP, Valve Mechanism
60028490 Crankshaft AS
60028496 Kits, Piston & Rod
60028488 Cylinder Block GP
60028487 Cylinder Head GP
60028464 Engine body, diesel
60028476 Pan GP & Filter, Engine Oil
60028478 Flywheel GP
60028489 Crankshaft & Piston GP
60028497 Camshaft & Valve Mechanism
60028472 Gear, timing
60028479 Accessories
60028492 Filter, Fuel & Tube
60028492 Filter, Fuel & Tube
60028473 Oil Pump & Filter
60028469 Cooler GP, Engine Oil
60028483 Lines GP, Engine Oil
60028468 Pump GP, Fuel Injection
60028486 Tube, Injection & Injector
60028491 Lines, Return (Fuel)
60028494 Pump, Water & Fan
60028495 Pipe, Water & Thermostat
60028495 Pipe, Water & Thermostat
60028484 Pipe, air inlet
60028500 Manifold GP, Exhaust
60028467 Turbocharger
60028471 Starting Motor
60028471 Starting Motor
60028470 Alternator
60028498 (Base, Pump, Fuel Injection
60028503 Switch, Power Supply
60028501 Fuse & Relay
60028504 Repair Kits - Gasket (Engine)
60028474 Filter, Oil
11285242 Counterweight GP
11507574 Travel device
11507574 Travel device
11507574 Travel device
11507574 Travel device
A810302082000 Seal AS
11744341 Leading Wheel assembly
A229900006383 Tensioner
12168856 Roller As, carrier
60246652 Piston motor
13225418 Gear reducer GT40D43B-F1H1U
60312633 Plunger motor
60312633 Plunger motor
60312633 Plunger motor
60311526 Seal kit
60243991 Center Swivel Joint
11446501 Work equipment
11446501 Work equipment
11446501 Work equipment
12352767 Pipeline, hydraulic, work equipment
11347703 Cylinder AS, boom
11777805 Pipeline, greasing, work equipment
11859236 Bucket, modified
12871738 Electric system
12871738 Electric system
12871738 Electric system
12777448 Painting
12777448 Painting
12777448 Painting
11557250 Accessory
11557250 Accessory
10442741 Box, tool
10442741 Box, tool
10442741 Box, tool
Рђ229900007607 Joint, universal
A290000000155 Toolbox, portable
12670075 Crawler assemblySTC190MB-8047
Other Fittings
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Позиция на иллюстрации
Заводской номер детали
Название детали
1
10133706
Lever, throttle
2
23000066
Screw
3
А210204000345
Screw
4
В220501000347
Motor, throttle
5
24000633
Washer
6
А210204000132
Screw
7
11595887
Bracket, harness, start relay
8
24000637
Washer
9
11707090
Bracket, flywheel sensor
10
60126312
Extinction device
11
13308577
Throttle support
12
11418716
Clamp, connector
13
А210307000012
Nut
14
24000511
Washer
15
11419366
Transitional joint of flameout control
16
А210111000079
Bolt
17
А210204000356
Screw
18
А210111000012
Bolt
19
24000632
Washer
20
23000169
Nut
21
13177785
Bracket
22
13180305
Protecting
23
А210111000038
Bolt
24
24000639
Washer
25
60086353
Clamp, harness
26
24000637
Washer
27
А210111000012
Bolt
28
А210111000199
Bolt
