Каталог запасных частей к технике: SANY SY215C9. 13225418 Gear reducer GT40D43B-F1H1U

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

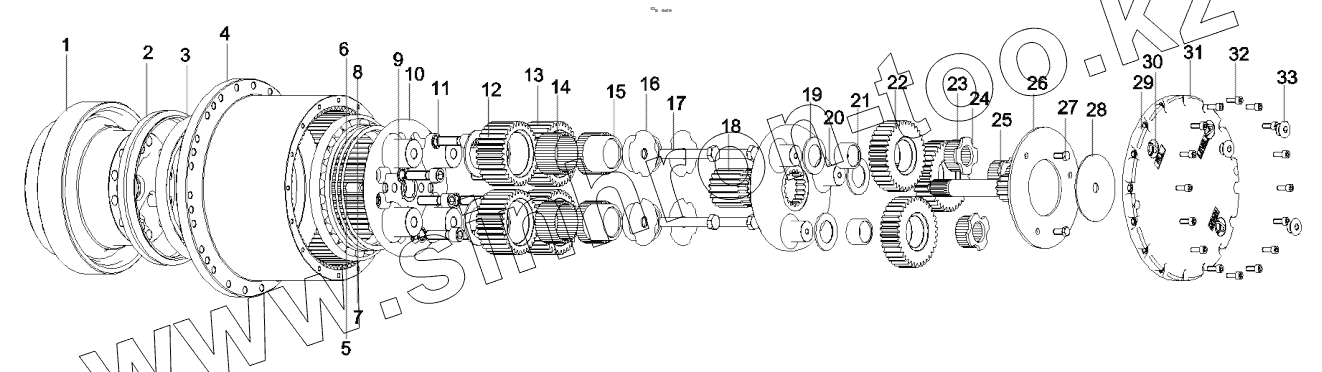

Позиция на иллюстрации	Заводской номер детали		Название детали
1	B0841-01075		Housing
2	Seal, floating		Seal, floating
3	Bearing		Bearing
4	GT40D43B-1		Inner gear ring
5	Pin		Pin
6	Shim, adjusting		Shim, adjusting
7	Shim, adjusting		Shim, adjusting
8	Shim, adjusting		Shim, adjusting
9	20GB861.1		Washer
10	Carrier, planetary		Carrier, planetary
11	M20x65GB70.1 12.9		Screw
12	Plate, wearable		Plate, wearable
13	Gear, planetary		Gear, planetary
14	Needle, roller		Needle, roller
15	Sleeve, shaft		Sleeve, shaft
16	Guard, shaft end		Guard, shaft end
17	M20x130GB5782 10.9		Bolt
18	Gear, sun		Gear, sun
19	Plate, wearable		Plate, wearable
20	Carrier, planetary		Carrier, planetary
21	Sleeve, shaft		Sleeve, shaft
22	Gear, planetary		Gear, planetary
23	Needle, roller		Needle, roller
24	Guard, shaft end		Guard, shaft end
25	Gear, sun		Gear, sun
26	Plate, planet carrier		Plate, planet carrier
27	M12x25GB5783 10.9		Bolt
28	Cover, wearable, rear		Cover, wearable, rear
29	O-ring		O-ring
30	23.7x3.5JISB2401		O-ring
31	Cover, tank		Cover, tank
32	M10x25GB70.1 10.9		Screw
33	Plug, screw		Plug, screw

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
