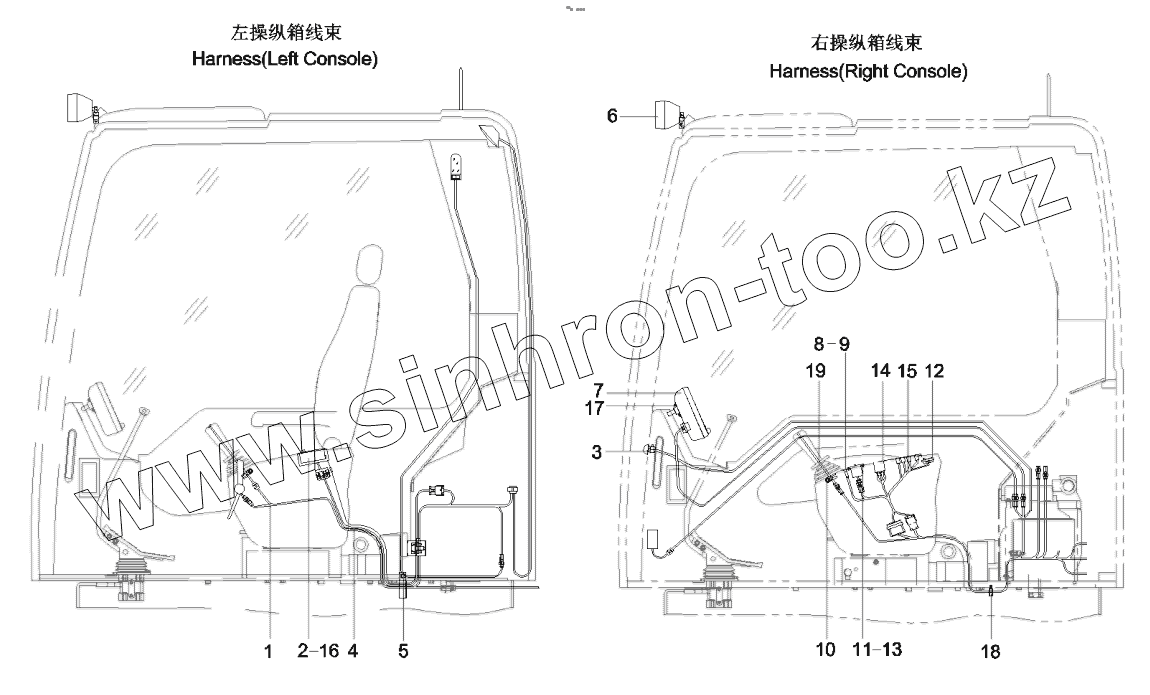

Позиция на иллюстрации
Заводской номер детали
Название детали
1
13688278
Driver’s cab harness
2
60205002
Radio
3
А210204000115
Screw
4
60060300
Extension, antenna
5
А210204000340
Screw
6
В241100000391
Lamp, working
7
Encourage Control Display
Encourage control display
8
60053220
Lamp, indicator, LED, red
9
60053221
Lamp, indicator, LED, yellow
10
А230200000170
Clamp
11
60117463
Switch, fuel control
12
60021249
Switch, rocker
13
60060562
Washer
14
А241200001217
Switch, ignition
15
11854607
Harness, control switch
16
24000509
Washer
17
А210404000010
Washer
18
60260292
Nylon belting
19
13400087
Horn switch tansfer harness
