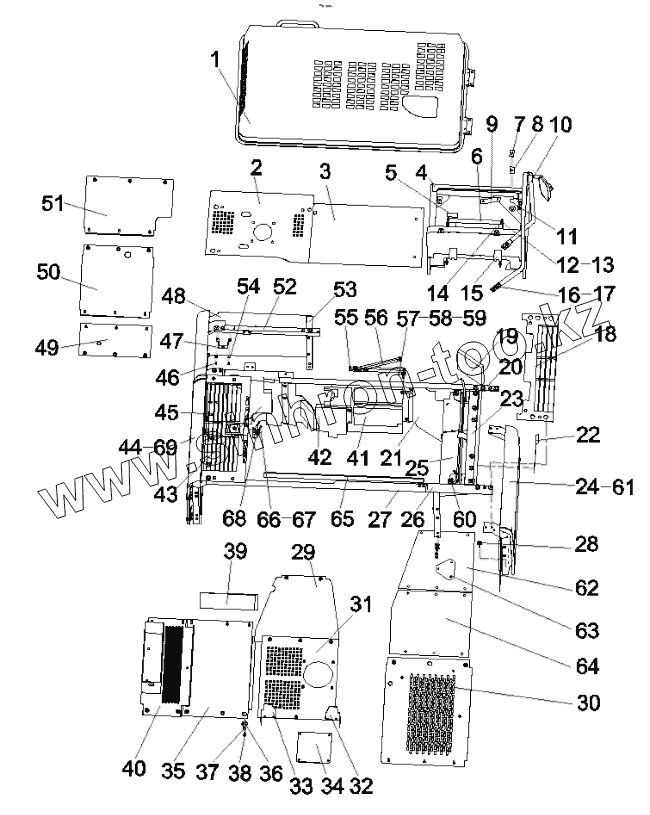

Каталог запасных частей к технике: SANY SY210C8. A810502000553 Cover As

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
Позиция на иллюстрации Заводской номер детали Название детали
1 A810502040096 Top engine hood assembly-
2 A810502015209 Left front upper cover plate
3 A810502012192 Coverplate, middle
4 A810502017020 Box GP, battery
5 A820606030643 Cushion, battery
6 A810599001149 Bracket, battery
7 A820101210711 Shim
8 A820101210712 Shim
9 A820101324589 Mount, lamp
10 A810502020139 Handhold
11 A210111000204 Bolt
12 A820301015908 Stud
13 A210307000036 Nut
14 A820606020243 Cushion, battery
15 A810502990126 Cover, ornament
16 A210111000203 Bolt
17 A210491000121 Washer
18 A810502012190 Cover
19 A820699000349 Sponge
20 A810502015205 Bracket As
21 A810502010656 Cover Plate
22 A829900000399 cover
23 A810502000726 Bracket
24 A810502010196 Door GP, right
25 A810502010606 Cover Plate
26 A810502015212 Bracket
27 A810502015206 Bracket AS
28 A210111000199 Bolt
29 A820101337218 Coverplate, bottom, main valve
30 A820101117951 Coverplate, bottom, right
31 10138643 Cover
32 A820101118018 Cover
33 A820101118017 Cover
34 10138625 Cover
35 A820101117948 Coverplate, bottom, middle left
36 A820299000383 Sleeve, spacer
37 A210401000002 Washer
38 A210111000202 Bolt
39 A820699000269 Sponge, bottom
40 A810502015219 Coverplate, bottom, rear left
41 A810502015213 Right clapboard of diesel engine
42 A810502015215 Plate
43 A810502015210 Plate - Air Cleaner
44 10504344 Door AS - Lh
45 A810502015207 Left upper rear cover plate
46 A210210000019 Screw
47 A820101216763 Parts book, mounting bracket,
48 A810502010629 Cover
49 A820101119480 Coverplate, bottom
50 A820101117949 Coverplate, rear middle
51 A820101117950 Coverplate, bottom front, cab
52 A810502015217 Rod, connecting
53 A810502015051 Support, front, left
54 A210405000007 Washer
55 A820302010101 Rod, bearing
56 A810502015065 Bar, support
57 A210491000014 Pin
58 A210508000009 Roll, pin
59 A210404000004 Washer, 12 GB96.1
60 A210405000001 Washer
61 A820699000226 Sponge, noise reduction, cab door
62 10723436 Cover plate GP, bottom
63 10186779 Coverplate
64 10723433 Coverplate, bottom, hydraulic tank
65 A820699000192 Plate, sealing
66 A210111000197 Bolt
67 A210405000011 Washer
68 A810502029015 Locking mechanism
69 A820699000966 Foam
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
