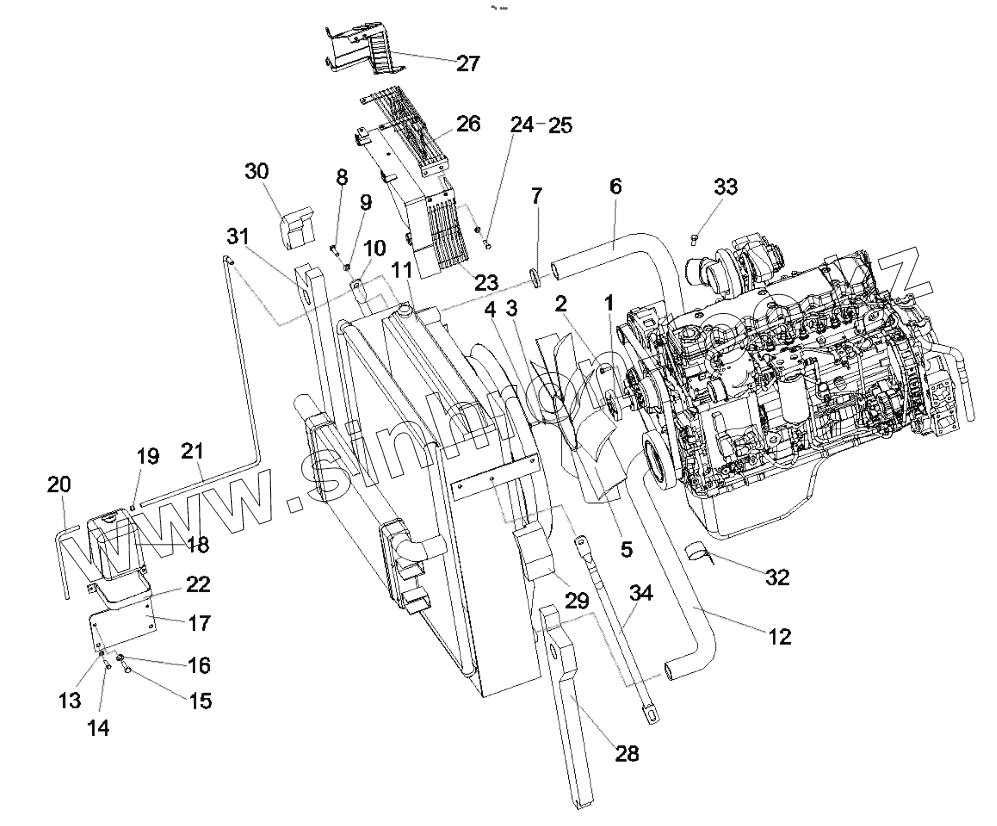

Каталог запасных частей к технике: SANY SY210C8. A810102090159 Cooling System
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | A229900003092 | Spacer | |
| 2 | A210111000024 | Bolt | |
| 3 | A210405000011 | Washer | |
| 4 | A210111000197 | Bolt | |
| 5 | B229900000382 | Fan - Cooling | |
| 6 | A820606011037 | Hose, Radiator Outlet | |
| 7 | A229900001348 | Clamp, hose | |
| 8 | A210111000263 | Bolt | |
| 9 | A210405000003 | Washer | |
| 10 | A820299001254 | Brace | |
| 11 | A229900004715 | Radiator | |
| 12 | A820606011038 | Hose, radiator inlet | |
| 13 | A210405000001 | Washer | |
| 14 | A210111000202 | Bolt | |
| 15 | A210204000220 | Screw | |
| 16 | A210405000007 | Washer | |
| 17 | A810102990039 | Bracket | |
| 18 | A229900001590 | Tank GP, reserve | |
| 19 | A229900001345 | Hoop, hose | |
| 20 | A820606030367 | Hose | |
| 21 | A820606030372 | Hose | |
| 22 | A810102099060 | Bracket | |
| 23 | A810102094034 | Guard, LH, fan | |
| 24 | 23000066 | Screw | |
| 25 | A210491000120 | Washer | |
| 26 | A810102094033 | Guard, middle, fan | |
| 27 | A810102094032 | Guard, RH | |
| 28 | A820699000855 | Seal | |
| 29 | A820699000856 | Seal | |
| 30 | A820699000857 | Seal | |
| 31 | A820699000858 | Seal | |
| 32 | A810102090040 | Clamp GP | |
| 33 | A820503002605 | Plug | |
| 34 | A820299002144 | Brace |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
