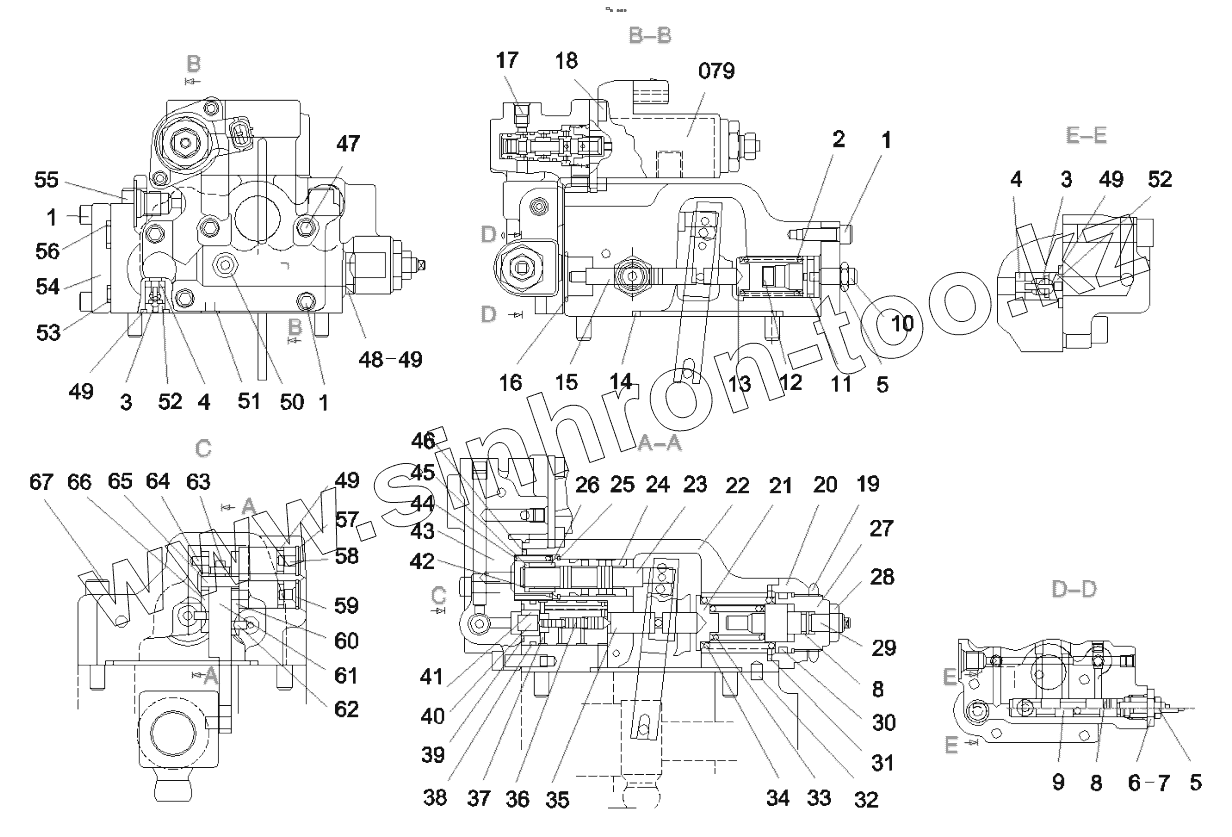

Каталог запасных частей к технике: SANY SY210C8. 60000733 20T Adjuster, main pump
1
1
1
2
3
3
4
4
5
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
49
49
49
50
51
52
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 60008842 | Bolt | |
| 2 | 60008498 | Spring | |
| 3 | 60008886 | Ball, steel | |
| 4 | 60008885 | Ring, retaining | |
| 5 | 60008857 | Nut | |
| 6 | 60008507 | Plug | |
| 7 | 60008700 | O-ring | |
| 8 | 60008709 | O-ring | |
| 9 | B229900001021 | Lever, change-over | |
| 10 | 60008743 | Rod, screw | |
| 11 | 60008702 | O-ring | |
| 12 | 60008525 | Rod, adjusting | |
| 13 | 60008495 | Seat, spring | |
| 14 | 60008694 | O-ring | |
| 15 | 60008520 | Piston | |
| 16 | 60008704 | O-ring | |
| 17 | 60008728 | Setscrew | |
| 18 | 60008841 | Bolt | |
| 19 | 60008537 | Nut | |
| 20 | 60008529 | Cover | |
| 21 | 60008494 | Seat, spring | |
| 22 | 60008513 | Body, machine | |
| 23 | 60008538 | Shaft, thrust | |
| 24 | 60008503 | Sleeve, valve | |
| 25 | 60008748 | Ring, retaining | |
| 26 | 60008541 | Spring | |
| 27 | 60008497 | Nut, adjusting | |
| 28 | 60008506 | Nut | |
| 29 | 60008526 | Rod, adjusting | |
| 30 | 60008706 | O-ring | |
| 31 | 60008693 | O-ring | |
| 32 | 60008546 | Pin | |
| 33 | 60008547 | Spring, inner | |
| 34 | 60008499 | Spring, outer | |
| 35 | 60008524 | Plunger | |
| 36 | 60008535 | Piston | |
| 37 | 60008536 | Body, valve | |
| 38 | 60008703 | O-ring | |
| 39 | 60008701 | O-ring | |
| 40 | 60008738 | Pin | |
| 41 | 60008502 | Sleeve | |
| 42 | 60009938 | Shim | |
| 43 | 60008510 | Body, machine | |
| 44 | 60008540 | Spring | |
| 45 | 60008539 | Seat, spring | |
| 46 | 60008692 | O-ring | |
| 47 | 60008844 | Bolt | |
| 48 | 60008724 | Plug | |
| 49 | 60008697 | O-ring | |
| 50 | 60008696 | O-ring | |
| 51 | 60008708 | O-ring | |
| 52 | 60008884 | Seat, seal | |
| 53 | 60008707 | O-ring | |
| 54 | 60008548 | Cover | |
| 55 | 60008849 | Bolt | |
| 56 | 60008698 | O-ring | |
| 57 | 60009937 | Ring, retaining | |
| 58 | 60008534 | Plug | |
| 59 | 60008533 | Plug | |
| 60 | 60008522 | Lever | |
| 61 | 60008551 | Lever | |
| 62 | 60008733 | Pin | |
| 63 | 60008734 | Pin | |
| 64 | 60008735 | Pin | |
| 65 | 60008736 | Pin | |
| 66 | 60008532 | Lever | |
| 67 | 60008847 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
