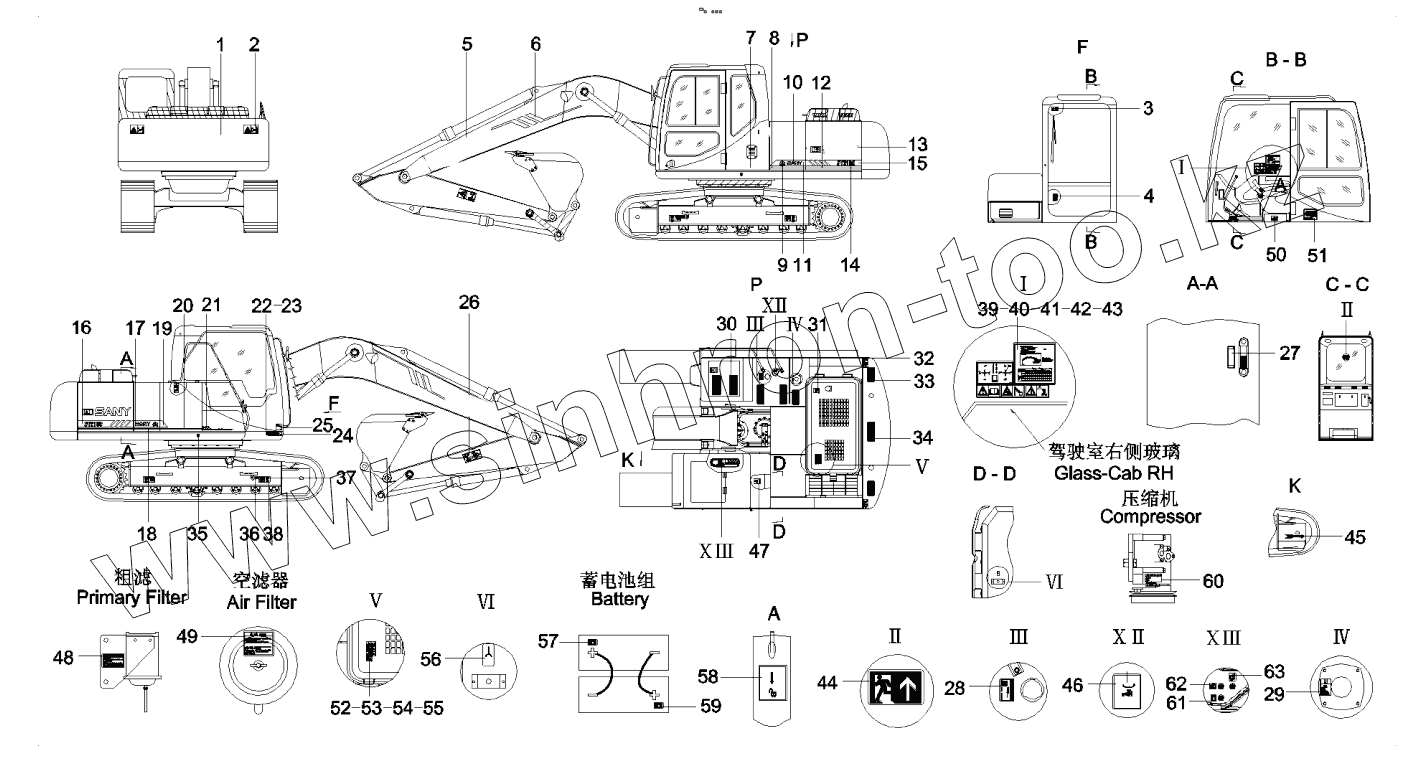

Каталог запасных частей к технике: SANY SY210C8. 11081860 Coating
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | A820699000786 | Decal, counterweight | |
| 2 | A820699001016 | Decal, warning, counterweight | |
| 3 | A820699001019 | Decal, warning, front window | |
| 4 | A820699001030 | Label, instruction, fuse box | |
| 5 | A820699000747 | Decal, boom | |
| 6 | 10220811 | Decal, boom, side | |
| 7 | 10220816 | Decal, left front, strip | |
| 8 | 10220831 | Decal, left middle, strip | |
| 9 | 10220833 | Decal, logo | |
| 10 | Decal, | Decal, logo | |
| 11 | 10220818 | Decal, left front, machine body | |
| 12 | 10220817 | Decal, right, front | |
| 13 | A820603000251 | Decal, counterweight | |
| 14 | Machine Model Marking | Machine Model Marking | |
| 15 | 10220815 | Decal, left rear, machine body | |
| 16 | 10220820 | Decal, right, rear | |
| 17 | 10220832 | Decal, right, middle | |
| 18 | 10220819 | Decal, right middle, strip | |
| 19 | 10220830 | Decal, right, front | |
| 20 | 10220814 | Decal, strip, side rear | |
| 21 | A820699001087 | Decal | |
| 22 | Nameplate | Nameplate | |
| 23 | A210510000007 | Rivet | |
| 24 | Nameplate | Nameplate, sales record | |
| 25 | Label | Label, noise | |
| 26 | A820601990963 | Decal, warning, arm | |
| 27 | A820601990928 | Label, oil level | |
| 28 | A820601990965 | Decal, fuel tank | |
| 29 | A820603000253 | Label, instruction, hydraulic tank | |
| 30 | Anti-skid, wide | Anti-skid, wide | |
| 31 | 10123433 | Decal, warning, hot surface | |
| 32 | A820601990926 | Decal, warning, falling | |
| 33 | A820699000370 | Anti-skid, short | |
| 34 | A820699000369 | Anti-skid, long | |
| 35 | 10232575 | Decal, center of gravity | |
| 36 | A820601990968 | Decal, warning, tensioner | |
| 37 | A820601990934 | Decal, tie-down, shipment | |
| 38 | A820101990552 | Film - Identification | |
| 39 | A820601990971 | Label, warning, READ MANUAL | |
| 40 | A820601990961 | Label, instruction, operation | |
| 41 | Lift capability meter | Lift capability meter | |
| 42 | A820601990974 | Decal, warning, high-voltage | |
| 43 | A820699001020 | Decal, warning, power-off | |
| 44 | A820601990969 | Label, emergency exit | |
| 45 | A820699001018 | Decal, instruction, forward | |
| 46 | A820601990929 | Label, drain, fuel tank | |
| 47 | A820699001023 | Decal, warning, no-sitting | |
| 48 | A820601990962 | Decal, drain, water separator | |
| 49 | Decal | Decal, warning, air cleaner | |
| 50 | A820601990967 | Decal, instruction, seat adjustment | |
| 51 | A820601990966 | Decal | |
| 52 | A820601990973 | Decal, warning, engine hood | |
| 53 | A820699001017 | Decal, warning, belt safety | |
| 54 | A820600000002 | Decal, warning, fan | |
| 55 | A820699000948 | Decal, warning, anti-spray | |
| 56 | A820699001109 | Label, power socket | |
| 57 | A820601990972 | Label, power supply | |
| 58 | A820601990927 | Label, Unlock | |
| 59 | Label | Label, noise | |
| 60 | A820699001284 | Decal, instruction, refrigerant | |
| 61 | 10939368 | Label, instruction, charging | |
| 62 | Label | Label, noise | |
| 63 | Label | Label, noise |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
