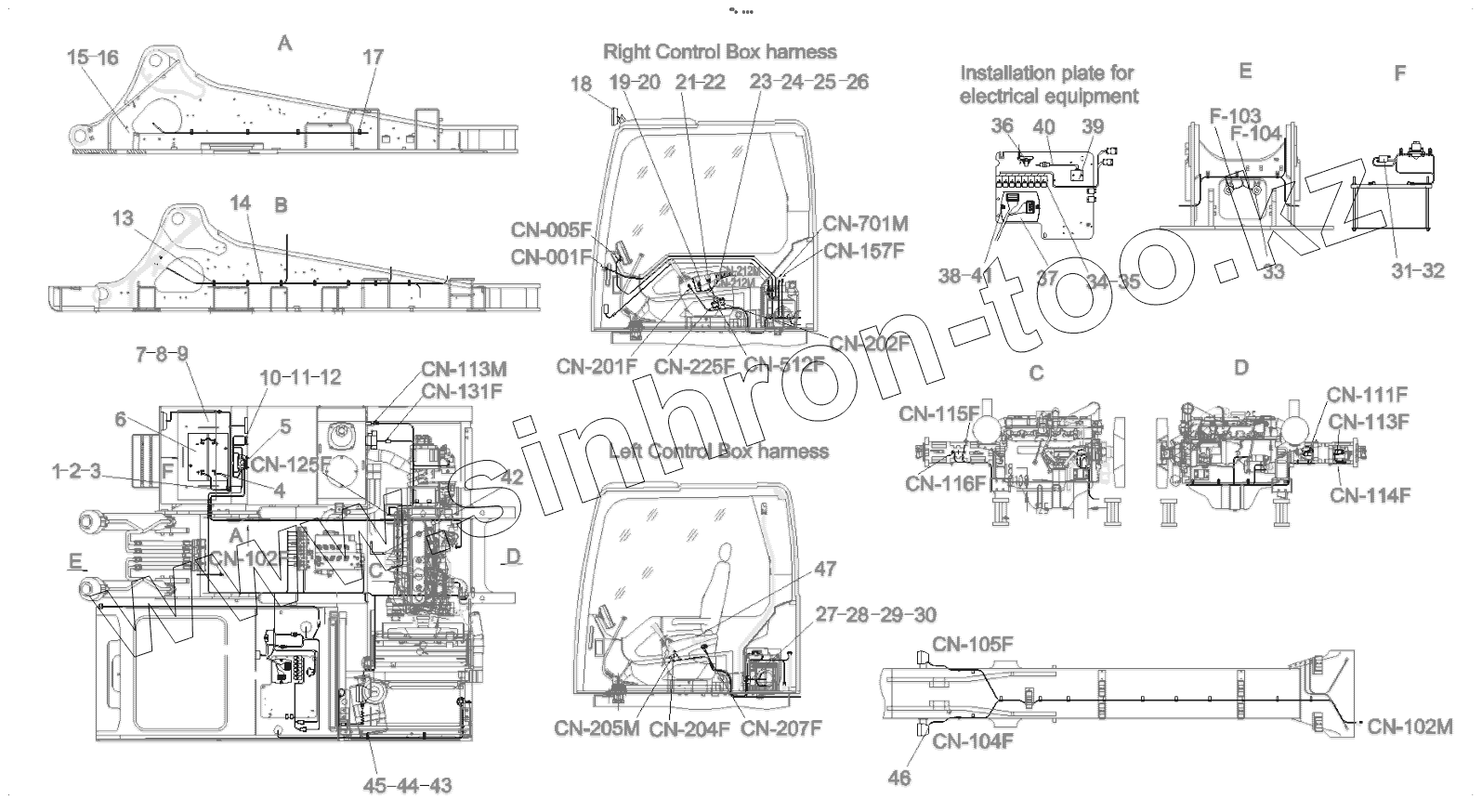

Каталог запасных частей к технике: SANY SY210C8. 10207010 Electrical System
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | A810406012663 | Bracket, switch | |
| 2 | 60012805 | Harness - Power Supply | |
| 3 | A241200000629 | Switch, manual | |
| 4 | 60012803 | Wire, power supply | |
| 5 | A240700000302 | Contactor, direct-current | |
| 6 | A242200000027 | Battery | |
| 7 | 60012792 | Wire, power supply | |
| 8 | 60013321 | Battery Terminal As - Negative | |
| 9 | 60013322 | Battery Terminal As - Positive | |
| 10 | A230200000178 | Clamp, cord | |
| 11 | 10281038 | Vehicle Body Harness- | |
| 12 | 60012795 | Wire, power supply | |
| 13 | 60012791 | Line, power | |
| 14 | A230200000169 | Clamp, cord | |
| 15 | B241100000391 | Lamp, working | |
| 16 | B249900001085 | Display | |
| 17 | 10203567 | Driver’s Cab Harness | |
| 18 | A229900001930 | Switch, knob | |
| 19 | A241200001217 | Switch, start | |
| 20 | A210202000011 | Screw | |
| 21 | A210401000013 | Washer | |
| 22 | B241100000139 | Lamp, indicator, red | |
| 23 | B241100000140 | Lamp, indicator, yellow | |
| 24 | A230200000170 | Clip | |
| 25 | A210111000011 | Bolt | |
| 26 | 10379078 | Control Switch Harness- | |
| 27 | 10203571 | Fuse Box Harness | |
| 28 | A230200000175 | Clamp, cord | |
| 29 | A210111000088 | Bolt | |
| 30 | A210401000017 | Washer | |
| 31 | A241300000059 | Box, fuse | |
| 32 | A241300000031 | Fuse | |
| 33 | A229900001896 | Horn | |
| 34 | 10203578 | Relay Harness | |
| 35 | B240700000250 | Relay | |
| 36 | A240700000339 | Contactor | |
| 37 | Controller | Controller As - Hyd. | |
| 38 | A210204000136 | Screw | |
| 39 | Direct current convertor-DC | Direct current convertor-DC | |
| 40 | A230200000021 | Tape, electric, PVC | |
| 41 | A210404000009 | Washer | |
| 42 | A810201058132 | Wire, power supply | |
| 43 | A230200000166 | Clamp, cord | |
| 44 | A210111000199 | Bolt | |
| 45 | A210405000001 | Washer | |
| 46 | A241100000352 | Lamp, working | |
| 47 | Radio | Radio | |
| 47 | A240500000113 | Radio |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
