Каталог запасных частей к технике: SANY SY210C8. 10184632 PPC Lines
1
1
2
3
3
4
4
4
5
5
6
7
7
7
8
9
10
11
12
13
13
13
13
13
13
14
15
16
17
18
18
18
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
36
37
38
39
40
40
41
41
42
42
43
44
44
45
45
46
46
47
47
48
48
49
50
51
52
53
54

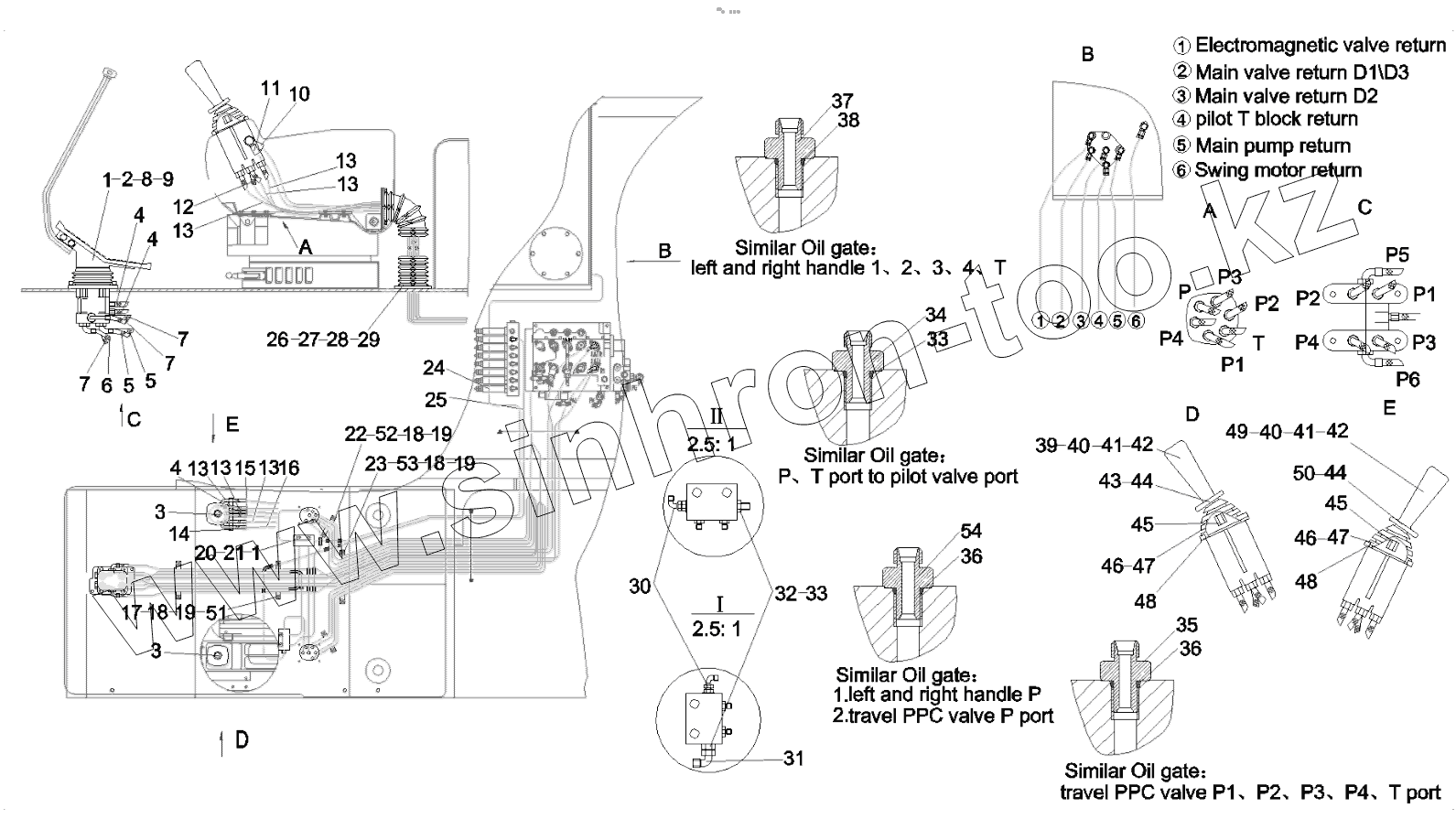

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | A210401000001 | Washer | |
| 2 | A210111000197 | Bolt | |
| 3 | B220401001302 | Valve, pilot, manual | |
| 4 | B230103000983 | Hose | |
| 5 | B230103001563 | Hose | |
| 6 | B230103002275 | Hose | |
| 7 | B230103000899 | Hose | |
| 8 | 60004101 | Valve, foot | |
| 9 | B229900005985 | Plate, spacer, foot valve | |
| 10 | B230103002263 | Hose, rubber | |
| 11 | A831211120000 | Hose, rubber | |
| 12 | B230103002115 | Hose | |
| 13 | A831211300000 | Hose | |
| 14 | A239900000065 | BAND - NYLON | |
| 15 | B230103002117 | Hose, rubber | |
| 16 | B230103000985 | Hose | |
| 17 | A820101117104 | Clamp, pipe | |
| 18 | A210111000342 | Bolt | |
| 19 | A210401000017 | Washer | |
| 20 | A820199000360 | Block, PT | |
| 21 | 21005186 | Bolt | |
| 22 | A820101117116 | Clamp, pipe | |
| 23 | 10379080 | Clamp, pipe | |
| 24 | B230103002116 | Hose, rubber | |
| 25 | B230103002118 | Hose, rubber | |
| 26 | A820601990304 | Flange | |
| 27 | A820601990336 | Bellows | |
| 28 | A210111000079 | Bolt | |
| 29 | A210401000016 | Washer | |
| 30 | B210780000418 | Connector, pipe | |
| 31 | B210780000024 | Connector, hose, EW12LOMDA3C | |
| 32 | A820205000894 | Connector | |
| 33 | A230101000247 | O-ring | |
| 34 | A820205000839 | Connector | |
| 35 | A820205000940 | Connector | |
| 36 | B230101000047 | O-ring | |
| 37 | A820205000946 | Connector | |
| 38 | B230101000049 | O-ring | |
| 39 | B229900001613 | Joystick, left | |
| 40 | A229900006438 | Insertion piece | |
| 41 | A241200000875 | Switch | |
| 42 | A210264000022 | Screw, self-tapping | |
| 43 | Lever, control, left | Lever, control, left | |
| 44 | A210308000006 | Nut | |
| 45 | 23000066 | Screw | |
| 46 | A229900006446 | Hood | |
| 47 | A229900001028 | Hood | |
| 48 | A229900001027 | Plate | |
| 49 | B229900001614 | Joystick, right | |
| 50 | Lever, control, right | Lever, control, right | |
| 51 | 10631826 | Gasket, rubber | |
| 52 | 10631836 | Gasket, rubber | |
| 53 | 10631838 | Gasket, rubber | |
| 54 | 60020078 | Connector, filter |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
