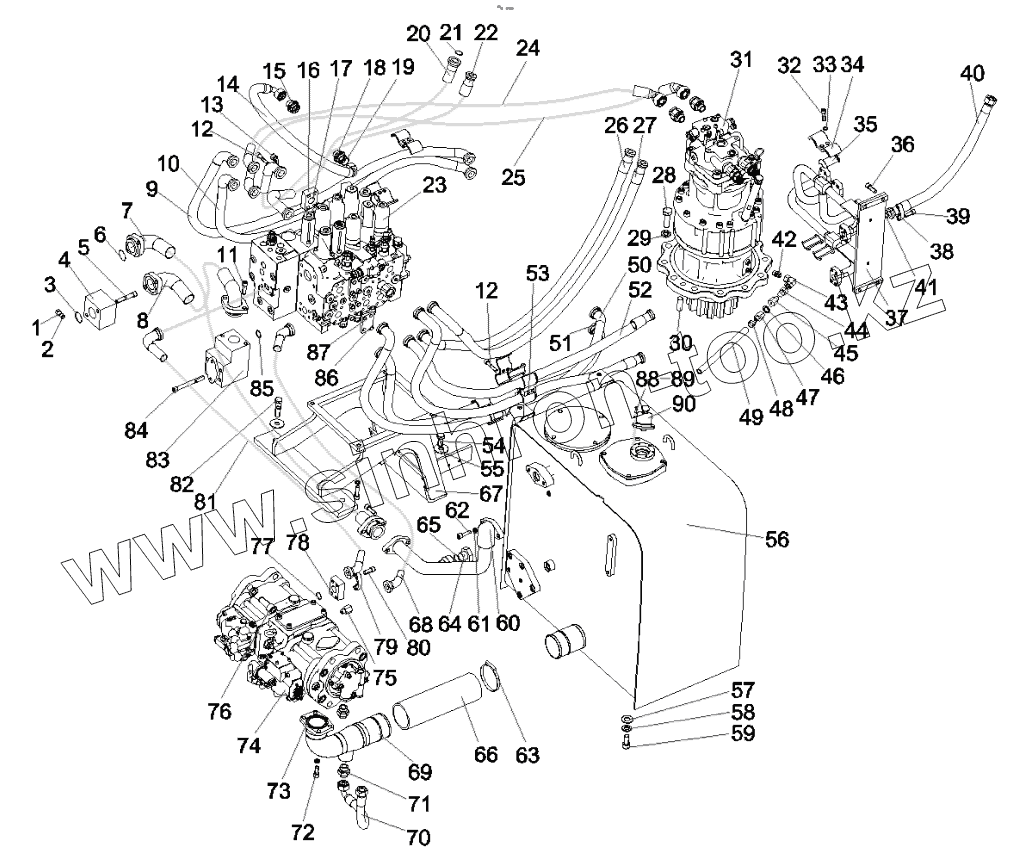

Каталог запасных частей к технике: SANY SY210C8. 10184254 Lines - Main (Hyd.)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
Позиция на иллюстрации Заводской номер детали Название детали
1 A820205000840 Plug
2 B230101000047 O-ring
3 B230101000444 O-ring
4 A820203002447 Block
5 A210204000362 Screw
6 B230101000244 O-ring
7 A810201023662 Hose AS
8 A810201023510 Hose As
9 B230103002317 Hose
10 B230103002316 Hose
11 A210111000204 Bolt
12 A210204000335 Screw
13 B210780000244 FLANGE - HALF
14 B230103003015 Hose, rubber
15 A820205001175 Nozzle
16 A820201000696 Adapter
17 B230101000456 O-ring
18 A820205001351 Connector
19 B230101000356 O-ring
20 B230103002690 Hose, rubber
21 B230101000215 O-ring
22 B230103002688 Hose, rubber
23 B220400000419 Valve - Main Control
24 B230103002517 Hose, rubber
25 B230103002518 Hose, rubber
26 B230103002519 Hose, rubber
27 B230103002689 Hose, rubber
28 A210111000062 Bolt
29 A210422000003 Washer
30 A820301012852 Dowel, swing mechanism
31 B229900006314 Reducer GP
32 A210204000355 Screw
33 A210401000001 Washer
34 A820101118573 Clamp, pipe
35 A820606010353 Gasket
36 A210204000206 Screw
37 A810201066451 Pipe, boom cylinder
38 B210780000696 Flange, split
39 A210204000354 Screw
40 B230103002294 Hose
41 B230101000580 O-ring
42 A820205002283 Connector
43 B210780000024 Connector, hose, EW12LOMDA3C
44 B210780001426 Joint, pipe
45 10137010 Connector
46 60006360 Washer, copper
47 B220401000916 Valve AS, shut off, engine oil
48 A229900001345 Hoop, hose
49 10192981 Hose, oil outlet
50 B230103002318 Hose
51 B230103002320 Hose
52 B230103002324 Hose, rubber
53 A810406012422 Clamp, pipe
54 A210111000212 Bolt
55 A210404000008 Washer
56 Fuel Tank As - Hyd. Fuel Tank As - Hyd.
56 A810201010296 Fuel Tank As - Hyd.
57 A820101118172 Gasket
58 A210491000118 Washer 16GB1230
59 A210204000198 Screw
60 A810201069517 Tube As
61 A210401000002 Washer
62 A210204000338 Screw
63 A210855000001 Hoop
64 A820205002644 Plug
65 B230101000050 O-ring
66 A230103000730 Hose,rubber,oil-suction
67 10184308 Frame - Main Valve
68 B230103003017 Hose
69 10096836 Pipe, oil suction
70 B230103001168 Hose
71 A820205000187 Connector
72 A210204000337 Screw
73 B230101000038 O-ring
74 B220301000554 Pump - Main
75 60014940 Sensor, pressure
76 A210204000300 Screw
77 A210609000136 O-ring
78 A820205001221 Adapter
79 B210780000007 Flange, split
80 A210204000364 Screw
81 B230103005249 Hose
82 A210110000324 Bolt
83 A229900001921 Valve - Oil Return
84 A210204000365 Screw
85 A210609000131 O-ring
86 A210204000215 Screw
87 A820203000983 Flange
88 A210204000130 Screw
89 A210405000006 Washer
90 B220401001027 Valve, breather
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
