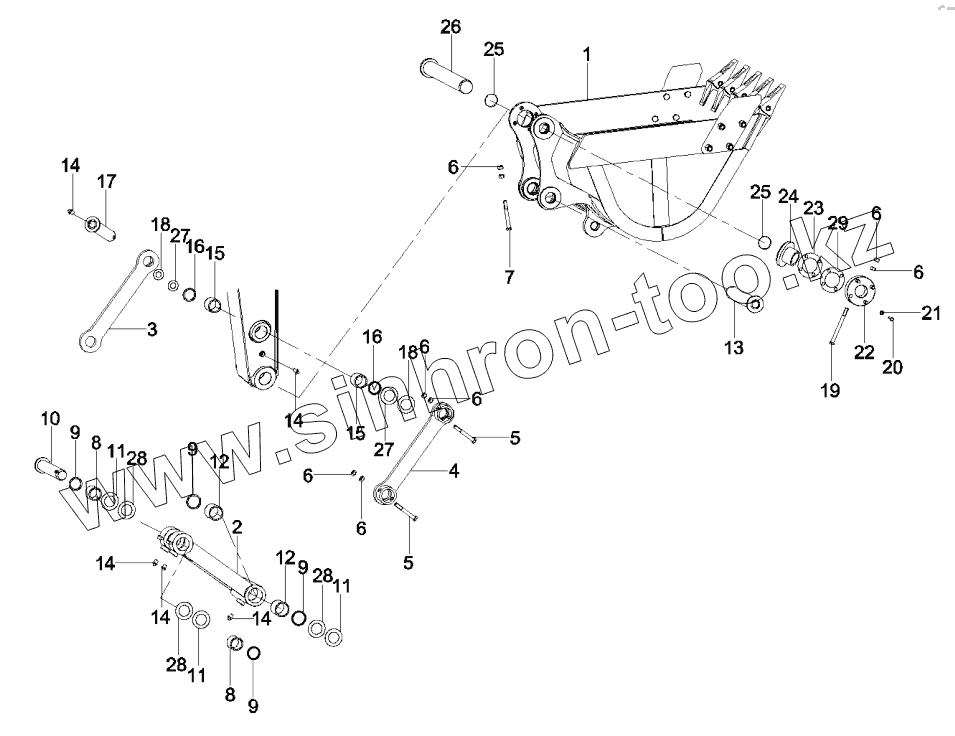

Каталог запасных частей к технике: SANY SY135C8. A810312010052 Work equipment AS
1
2
3
4
5
5
6
6
6
6
6
6
6
7
8
8
9
9
9
9
10
11
11
11
12
12
13
14
14
14
14
14
15
15
16
16
17
18
18
19
20
21
22
23
24
25
25
26
27
27
28
28
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 11041064 | Bucket | |
| 2 | A810312100033 | Rod, connecting | |
| 3 | 11164478 | Rocker - LH | |
| 4 | 11164477 | Rocker - RH | |
| 5 | A210110000067 | Bolt | |
| 6 | A210307000005 | Nut | |
| 7 | A210110000352 | Bolt | |
| 8 | A820202005379 | Sleeve, shaft | |
| 9 | B230101001124 | ME-2-ring, dustproof | |
| 10 | A810312110110 | Roll, pin | |
| 11 | A810312990208 | Shim | |
| 12 | A820202005380 | Sleeve, shaft | |
| 13 | A810312110111 | Roll, pin | |
| 14 | B229900000686 | Fitting, grease | |
| 15 | A820202005381 | Sleeve, shaft | |
| 16 | B230101001123 | ME-2-ring, dustproof | |
| 17 | A810312110112 | Roll, pin | |
| 18 | A810312019062 | Shim | |
| 19 | A210110000347 | Bolt | |
| 20 | A210110000272 | Screw | |
| 21 | A210401000004 | Washer | |
| 22 | A810312019064 | Plate, pressure | |
| 23 | A810312019065 | Plate | |
| 24 | A810312019066 | Sleeve, spacer | |
| 25 | A210609000352 | O-ring | |
| 26 | A810312110113 | Roll, pin | |
| 27 | 10167597 | Shim | |
| 28 | A810312990209 | Shim | |
| 29 | 10217951 | Plate |
