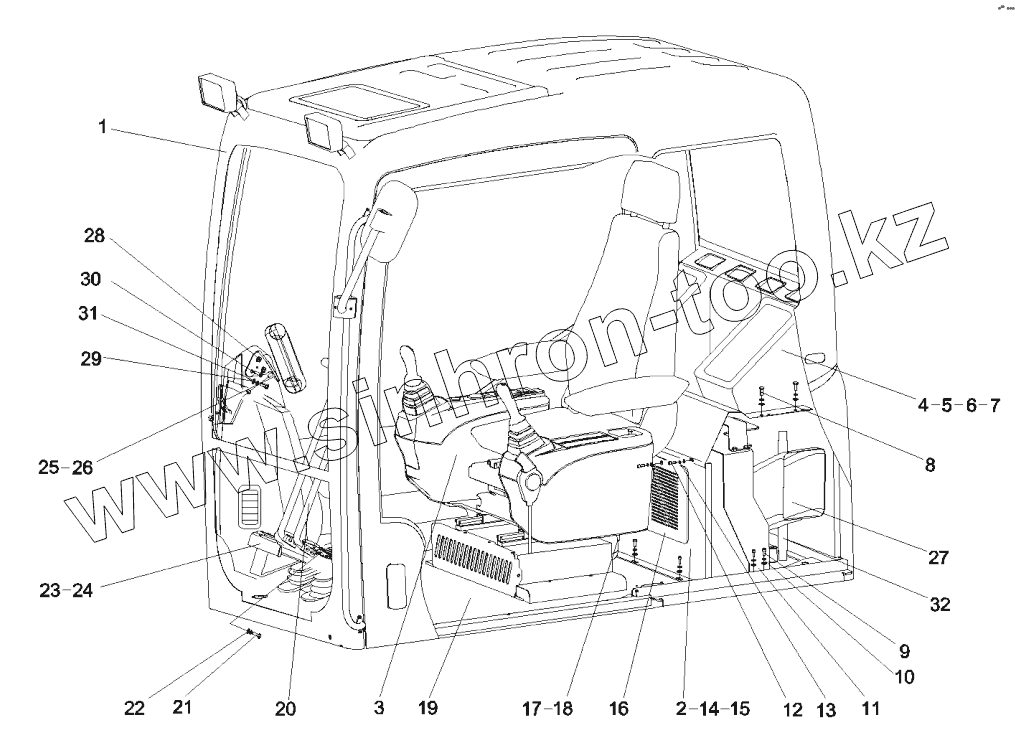

Каталог запасных частей к технике: SANY SY135C8. 11342997 Cab
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 60078345 | Cab AS | |
| 2 | A210264000004 | Screw, self-tapping | |
| 3 | 10458174 | Seat and control console AS | |
| 4 | 10243524 | Harness, air conditioner | |
| 5 | 60004098 | Passage, air, main | |
| 6 | 10578270 | Sponge, sealing, rear air outlet | |
| 7 | 60004097 | Passage, air, right | |
| 8 | A210111000089 | Bolt | |
| 9 | A210210000027 | Screw | |
| 10 | A210405000006 | Washer | |
| 11 | 10253101 | Plate, mounting, electrical | |
| 12 | A210204000146 | Screw, M8x16 GB70.1 | |
| 13 | A210405000007 | Washer | |
| 14 | 10243510 | Plate, vertical, lower left | |
| 15 | 10243522 | Plate, vertical, lower right | |
| 16 | 10244287 | Plate, cover, air, inner | |
| 17 | A229900010630 | Passage, air, foot-blowing | |
| 18 | 10567493 | Sponge, sealing, floor air outlet | |
| 19 | 10437915 | Support, bottom plate | |
| 20 | A810201073014 | Control mechanism, travel | |
| 21 | A210111000195 | Bolt | |
| 22 | A210401000001 | Washer | |
| 23 | A810299000007 | Pedal | |
| 24 | A820606030112 | Sleeve, rubber | |
| 25 | 10079587 | Bracket, mounting | |
| 26 | 10182798 | Plate, Mounting | |
| 27 | 60004096 | Passage, fresh air | |
| 28 | A210307000040 | Nut | |
| 29 | A210405000003 | Washer | |
| 30 | A210204000130 | Screw | |
| 31 | A210111000090 | Bolt | |
| 32 | 10253103 | Rod, supporting |
