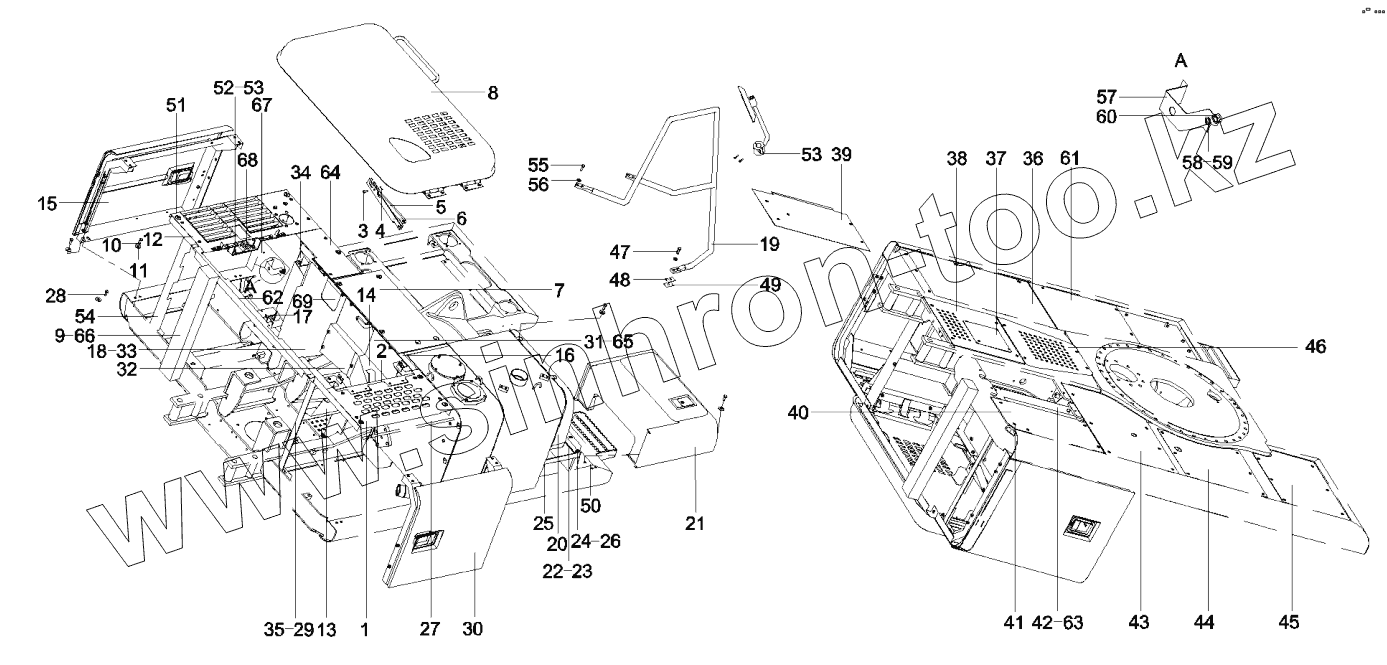

Каталог запасных частей к технике: SANY SY135C8. 10206667 Cover GP

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
Позиция на иллюстрации Заводской номер детали Название детали
1 A810502012252 Coverplate, rear, upper right
2 A810502015254 Bracket
3 A210508000009 Roll, pin
4 A210491000014 Pin
5 A810502015323 Bar, support
6 A820302010101 Rod, bearing
7 A810502015255 Beam, cross, front
8 11229576 Engine hood GP
9 A820699001139 Sponge, left side, radiator
10 A210111000202 Bolt
11 A210404000004 Washer, 12 GB96.1
12 A810502000572 Coverplate, rear, upper left
13 A810502012285 Partition, side
14 A810502012286 Baffle, front, right
15 10683865 Door GP, left
16 A820101345488 Coverplate, front
17 10200730 Partition, middle
18 A820699001177 Foam
19 A810599001056 Handhold
20 A810502990185 Cover, ornament
21 A810502017041 Box GP, battery
22 A820606030643 Cushion, battery
23 A820606020243 Cushion, battery
24 A820301015908 Stud
25 A810599001149 Bracket, battery
26 A210307000036 Nut
27 A820699001180 Sponge, noise reduction, cab door
28 A210111000199 Bolt
29 A810502015256 Bracket, rear, right
30 A810502010559 Door GP, right
31 10684013 Partition, right
32 A810502012313 Partition, middle
33 A810502012312 Partition, left
34 A810502015257 Bracket, front, left
35 A820101351600 Plate, fixing, side partition
36 A820101345487 Plate - Seal
37 Cover Cover
38 A810502012324 Plate, sealing, rear middle
39 A820101345486 Plate, sealing, middle left
40 A820101346123 Plate, sealing, rear left
41 A210401000002 Washer
42 A820699000269 Sponge, bottom
43 A820101345494 Plate, sealing, cab rear
44 A820101345492 Plate, sealing, cab middle
45 A820101345493 Plate, sealing, cab front
46 A820101345495 Plate, sealing, front middle
47 A210111000204 Bolt
48 A820101210711 Shim
49 A820101210712 Shim
50 A820101324589 Mount, lamp
51 A820699000224 Sponge, noise reduction, cab door
52 A210111000197 Bolt
53 A210405000011 Washer
54 A810502015268 Bracket, rear, left
55 A210111000203 Bolt
56 A210491000121 Washer
57 A820101216763 Parts book, mounting bracket,
58 A210210000019 Screw
59 A210405000007 Washer
60 A210307000012 Nut
61 A820101357783 Plate, sealing, oil tank
62 10072949 Beam, cross, rear
63 10072952 Partition, lower, radiator
64 11464041 Cover plate, side
65 10118648 Sponge, noise absorbing, right
66 A820601991116 Sponge, sealing, bottom
67 10138594 Plate, fixing
68 A810502029015 Locking mechanism
69 11463987 Bracket, front coverplate
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
