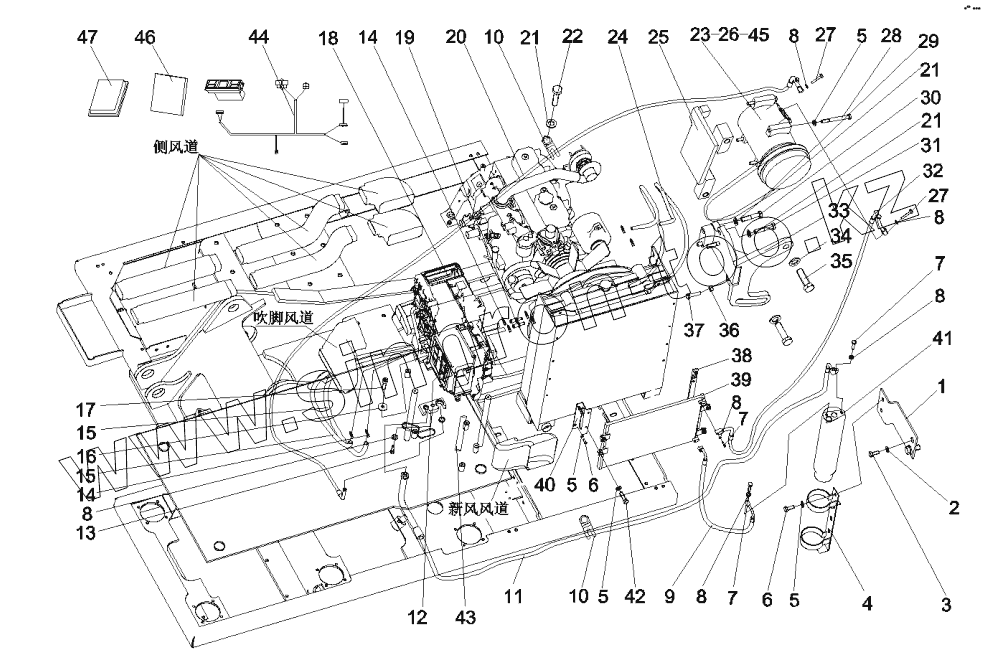

Каталог запасных частей к технике: SANY SY135C8. 10179470 Air conditioning system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
5
5
6
6
7
7
7
8
8
8
8
8
8
9
10
10
11
12
13
14
14
15
15
16
17
18
19
20
21
21
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
Позиция на иллюстрации Заводской номер детали Название детали
1 10179977 Plate, mounting, drying bottle
2 A210405000001 Washer
3 A210111000199 Bolt
4 A229900008784 Support, container, liquid storage
5 A210405000007 Washer
6 A210111000343 Bolt
7 A210111000081 Bolt
8 A210405000006 Washer
9 60001238 Hose
10 A230200000178 Clamp, cord
11 60004378 Hose
12 B229900005758 Connector, pipe
13 A210204000131 Screw
14 A210855000005 Hoop
15 10448928 Hose, steam
16 A210404000005 Washer
17 A210204000164 Screw
18 A221600000159 Air conditioner unit AS
19 A820205002617 Reduction union, water pipe
20 60004375 Hose, air intake
21 A210404000003 Washer
22 A210111000011 Bolt
23 A420104000007 Oil, refrigerant
24 10448927 Hose, steam
25 10179456 Plate, adjusting
26 B220203000007 Compressor
27 A210111000082 Bolt
28 A210108000097 Bolt
29 A230106000292 V-belt
30 A210113000266 Bolt, M10x1.25x50 GB5785 -grade 10.9
31 21086590 Bolt
32 60001232 Hose, exhaust
33 A810406012731 Bracket
34 A210405000003 Washer
35 A210111000054 Bolt
36 A210307000028 Nut
37 A210110000272 Screw
38 10254232 Bracket, right
39 A220700000028 Condenser AS
40 10254231 Bracket, left
41 B229900005141 Container, liquid storage
42 A210111000293 Bolt
43 A229900009481 Pipe, drainage
44 10473304 Electrical system, air conditioner
45 A429900000010 Refrigerant
46 B222100000711 Filter, air, inner
47 B222100000660 Filter, air, external
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
