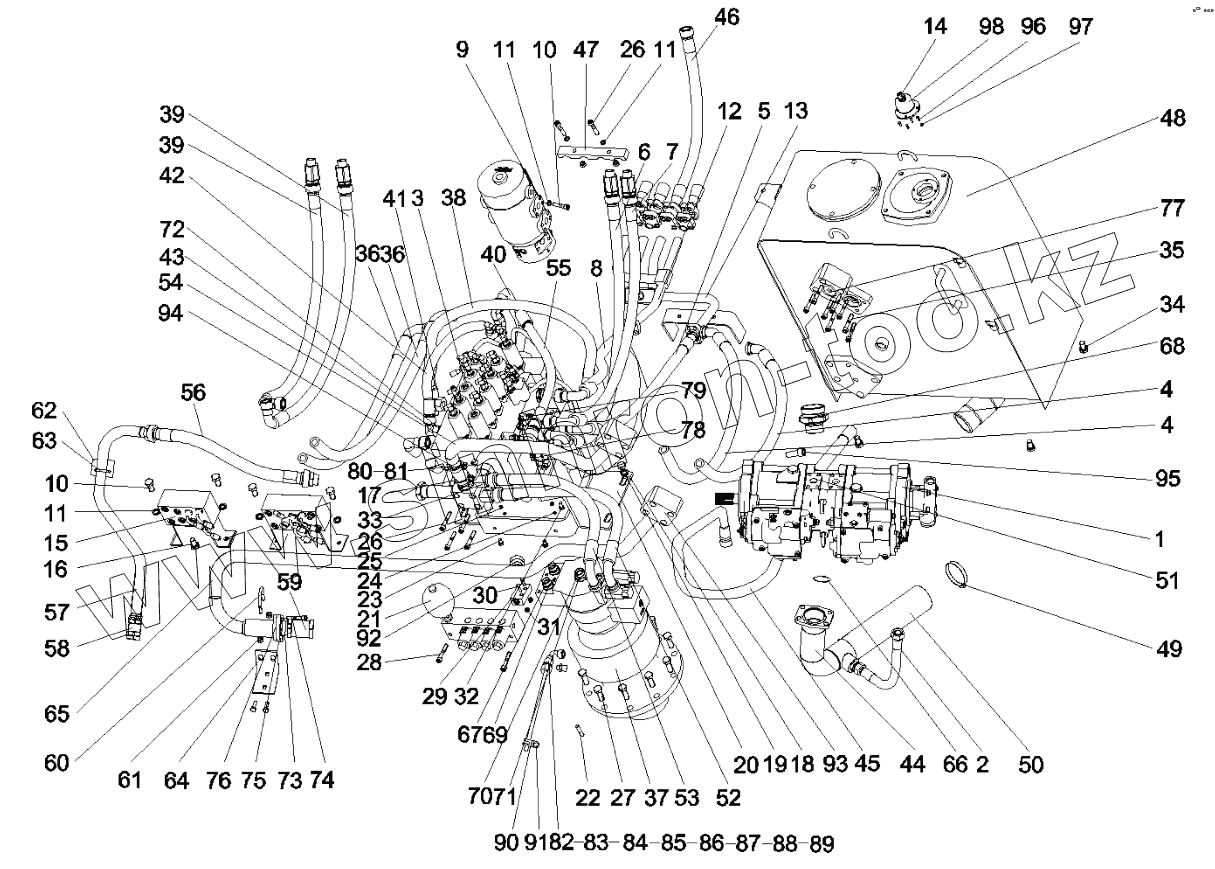

Каталог запасных частей к технике: SANY SY135C8. 10169508 Pipeline, main, hydraulic

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
4
5
6
7
8
9
10
10
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
Позиция на иллюстрации Заводской номер детали Название детали
1 B220301000534 Pump, plunger
2 B230103002177 Hose
3 B220401000740 Valve, main control
4 B230103006438 Hose
5 B230103006439 Hose
6 B230103006441 Hose
7 B230103001830 Hose
8 B230103007774 Hose
9 B210780000696 Flange, split
10 A210204000354 Screw
11 A210401000001 Washer
12 10165805 Tube, head end, boom cylinder
13 10165806 Pipe, rod end, boom cylinder
14 Gasket - Rubber Gasket - Rubber
15 B220401000739 Block, shuttle valve
16 A210111000012 Bolt
17 10226395 Pipe, oil return
18 A210204000198 Screw
19 A210401000004 Washer
20 10165814 Bracket, main valve
21 A220401000835 Block, valve
22 10570332 Dowel, swing mechanism
23 21027533 Screw
24 A210401000002 Washer
25 A210307000001 Nut
26 A210204000345 Screw
27 A210204000312 Screw
28 A210111000295 Bolt
29 A820199000360 Block, PT
30 A210204000355 Screw
31 A210307000017 Nut
32 A210204000337 Screw
33 B210780000029 Connector, pipe
34 A313041602516 Screw
35 A210204000336 Screw
36 B230103007775 Hose
37 B229900002718 Reducer GP
38 B230103006437 Hose
39 B230103003627 Hose
40 B230103006436 Hose
41 B210780000021 Connector
42 B230103006435 Hose
43 B210780001310 Connector, hose, EW18LOMDA3C
44 A810201012043 Pipe, oil suction
45 B230103002446 Hose
46 B230103005717 Hose
47 A820101344841 Clamp, pipe
48 A810201010298 Tank GP, hydraulic
49 A210855000052 T - Hoop
50 A820606020546 Hose, oil suction
51 B210780000007 Flange, split
52 B230103001232 Hose
53 B230103004360 Hose
54 B230103008550 Hose
55 B230103001239 Hose
56 B230103004054 Hose
57 10165810 Pipe, oil return
58 B229900002750 Connector, soft
59 A229900004566 Clamp, pipe
60 A820301017374 U-bolt
61 A210307000012 Nut
62 A820101345202 Plate
63 A820301017131 U-bolt
64 10141478 Plate, mounting, pipe clamp
65 10266663 Pipe, oil return
66 B230101000038 O-ring
67 B230101000090 O-ring
68 A820205002280 Connector
69 A820205000962 Connector
70 A820205000942 Connector
71 B230101000356 O-ring
72 10165802 Connector
73 B220401000589 Valve, check
74 A210204000364 Screw
75 B230101000366 O-ring
76 A810201024215 Flange
77 B220401000590 Valve, check
78 A820205002473 Connector
79 A820205002474 Connector
80 10227607 Connector
81 B230101000050 O-ring
82 A820205002283 Connector
83 B210780000024 Connector, hose, EW12LOMDA3C
84 B210780001426 Joint, pipe
85 10137010 Connector
86 60006360 Washer, copper
87 B220401000916 Valve AS, shut off, engine oil
88 A229900001345 Hoop, hose
89 10192981 Hose, oil outlet
90 A230200000167 Clip, wire
91 A210111000195 Bolt
92 A820205002351 Plug
93 10225831 Pipe, oil return
94 B210780000838 Connector, pipe
95 A210204000232 Screw
96 A210204000130 Screw
97 A210405000006 Washer
98 Valve, breather Valve, breather
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
