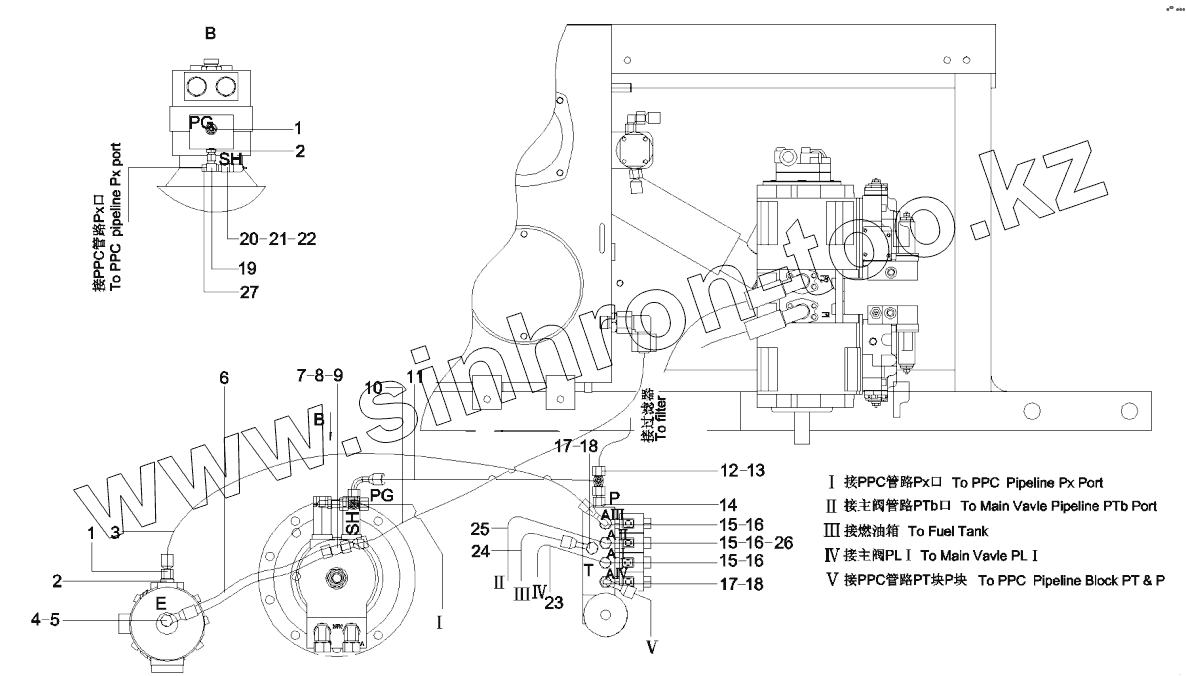

Каталог запасных частей к технике: SANY SY135C8. 10165926 Lines, solenoid valve
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
16
16
16
17
17
18
18
19
20
21
22
23
24
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | A820205000940 | Connector | |
| 2 | B230101000047 | O-ring | |
| 3 | B230103003046 | Hose | |
| 4 | A820205000962 | Connector | |
| 5 | B230101000090 | O-ring | |
| 6 | B230103004072 | Hose, rubber | |
| 7 | B230101000049 | O-ring | |
| 8 | A820205000948 | Connector | |
| 9 | B210780001363 | Connector, pipe | |
| 10 | B230103001100 | Hose | |
| 11 | A831213065000 | Hose | |
| 12 | B210780000016 | Connector, hose, EL12LOMDA3C | |
| 13 | B210780000827 | Connector, pipe | |
| 14 | A820205000894 | Connector | |
| 15 | A820205000839 | Connector | |
| 16 | A230101000247 | O-ring | |
| 17 | A820205000838 | Connector | |
| 18 | A230101000243 | O-ring | |
| 19 | B210780000172 | Connector, pipe | |
| 20 | B210780001045 | Connector, pipe | |
| 21 | A820205000944 | Adapter, relay | |
| 22 | B240700000221 | Relay, pressure | |
| 23 | B230103002043 | Hose | |
| 24 | B230103002543 | Hose, rubber | |
| 25 | B230103001898 | Hose | |
| 26 | B210780000170 | Connector, pipe | |
| 27 | B210780000418 | Connector, pipe |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
