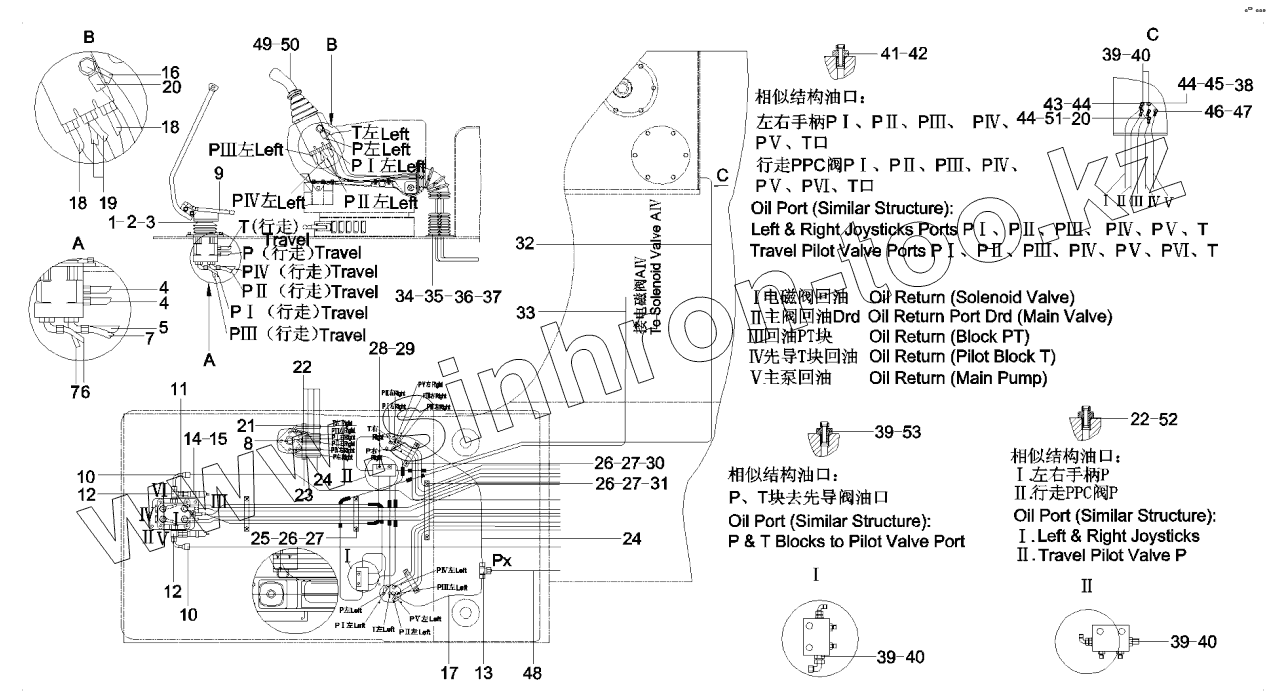

Каталог запасных частей к технике: SANY SY135C8. 10165921 Pipeline AS, PPC
1
2
3
4
4
5
6
7
7
8
9
10
10
11
12
12
13
14
15
16
17
18
18
19
20
20
21
22
22
23
24
24
25
26
26
26
27
27
27
28
29
30
31
32
33
34
35
36
37
39
39
39
39
40
40
40
41
42
43
44
44
44
45
46
47
48
49
50
51
52
53
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | A210401000001 | Washer | |
| 2 | A210111000197 | Bolt | |
| 3 | 60004101 | Valve, foot | |
| 4 | B230103000982 | Hose | |
| 5 | B230103001563 | Hose | |
| 6 | B230103002275 | Hose | |
| 7 | B230103000899 | Hose | |
| 8 | B220401001301 | Valve, pilot, manual | |
| 9 | B229900005985 | Plate, spacer, foot valve | |
| 10 | B230103001892 | Hose | |
| 11 | B210780001045 | Connector, pipe | |
| 12 | B210780000170 | Connector, pipe | |
| 13 | B220400000169 | Valve, shuttle, tee | |
| 14 | A820205000944 | Adapter, relay | |
| 15 | A240700000548 | Relay, pressure | |
| 16 | B230103002263 | Hose, rubber | |
| 17 | A831211120000 | Hose, rubber | |
| 18 | A831211300000 | Hose | |
| 19 | B230103001375 | Hose | |
| 20 | B210780000418 | Connector, pipe | |
| 21 | B230103000983 | Hose | |
| 22 | B230103001434 | Hose | |
| 23 | A239900000065 | BAND - NYLON | |
| 24 | B230103002722 | Hose, rubber | |
| 25 | A820101117104 | Clamp, pipe | |
| 26 | A210111000348 | Bolt M8x12 GB5783 Grade 10.9 | |
| 27 | A210401000017 | Washer | |
| 28 | A820199000360 | Block, PT | |
| 29 | 21005186 | Bolt | |
| 30 | A820101117116 | Clamp, pipe | |
| 31 | 10379080 | Clamp, pipe | |
| 32 | B230103002553 | Hose | |
| 33 | B230103003283 | Hose, rubber | |
| 34 | A820601990304 | Flange | |
| 35 | A820601990336 | Bellows | |
| 36 | A210111000078 | Bolt | |
| 37 | A210401000016 | Washer | |
| 39 | A230101000247 | O-ring | |
| 40 | A820205000839 | Connector | |
| 41 | A820205000940 | Connector | |
| 42 | B230101000047 | O-ring | |
| 43 | A820205000836 | Connector | |
| 44 | A230101000243 | O-ring | |
| 45 | A820205001027 | Plug | |
| 46 | A820205000837 | Connector | |
| 47 | A229900001581 | O-ring | |
| 48 | B230103002709 | Hose | |
| 49 | 10585259 | Joystick AS, left | |
| 50 | 10585261 | Joystick AS, right | |
| 51 | A820205000838 | Connector | |
| 52 | 60020078 | Connector, filter | |
| 53 | A820205000894 | Connector | |
| 54 | B210780000024 | Connector, hose, EW12LOMDA3C |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
