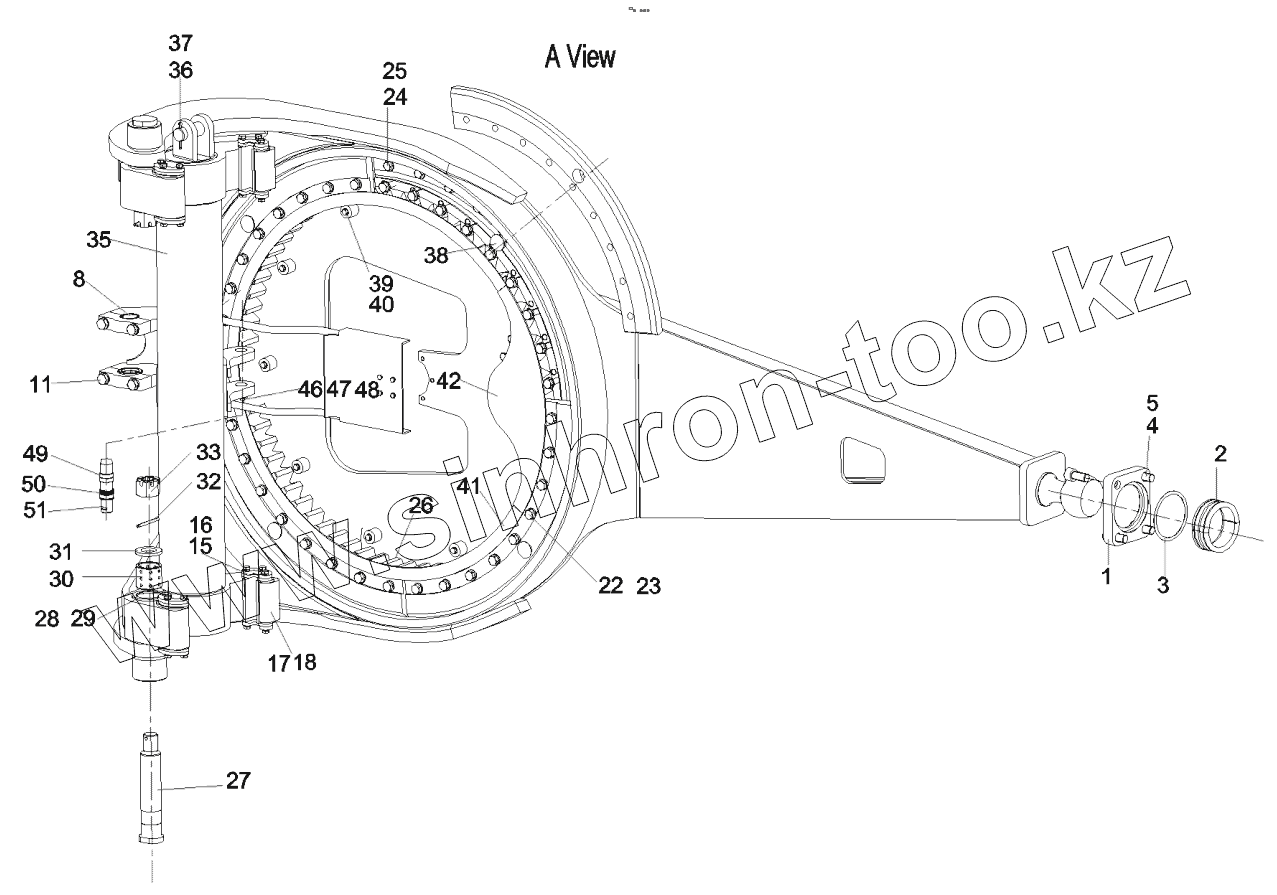

Каталог запасных частей к технике: SANY STG190C-8. 14056274 Operating device STG230C-8.2
1
2
3
4
5
8
11
15
16
17
18
22
23
24
25
26
27
28
29
30
31
32
33
35
36
37
38
39
40
41
42
46
47
48
49
50
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | A820101322617 | Plate, seat | |
| 2 | A820205001447 | Spherical plain bearing outer ring | |
| 3 | A820102010216 | Gasket | |
| 4 | A210401000008 | Washer | |
| 5 | A210204000253 | Screw | |
| 8 | 60115073 | Vs series disc spring loose -preventing | |
| 11 | A210110000201 | Bolt | |
| 15 | 14003916 | Baffle | |
| 16 | 14003917 | Baffle | |
| 17 | 11096718 | Shim, 1mm | |
| 18 | 12787958 | Wearing plate | |
| 22 | A210491000144 | Washer | |
| 23 | A210111000216 | Bolt | |
| 24 | A210110000281 | Bolt | |
| 25 | A210491000118 | Washer 16GB1230 | |
| 26 | 13016304 | Bearing, slewing | |
| 27 | 11220296 | Pin shaft | |
| 28 | 11866624 | Adjusting shim | |
| 29 | A820103010056 | Pad, adjusting | |
| 30 | 14003914 | Shaft sleeve | |
| 31 | A210406000003 | Washer | |
| 32 | A210491000028 | Pin, cotter | |
| 33 | A820204000286 | Slotted nut | |
| 35 | 14054327 | Shovel support | |
| 36 | A210491000023 | Pin | |
| 37 | 14003922 | Lock pin | |
| 38 | A820601020160 | Cover | |
| 39 | A210111000029 | Bolt | |
| 40 | A210405000011 | Washer | |
| 41 | 11096732 | Seal dust | |
| 42 | 11096735 | Seal dust | |
| 46 | A210111000293 | Bolt | |
| 47 | A210405000007 | Washer | |
| 48 | 14003919 | Lock plate | |
| 49 | 14003920 | Ring | |
| 50 | 14003921 | Adjusting spacer | |
| 51 | 14003918 | Pin |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
