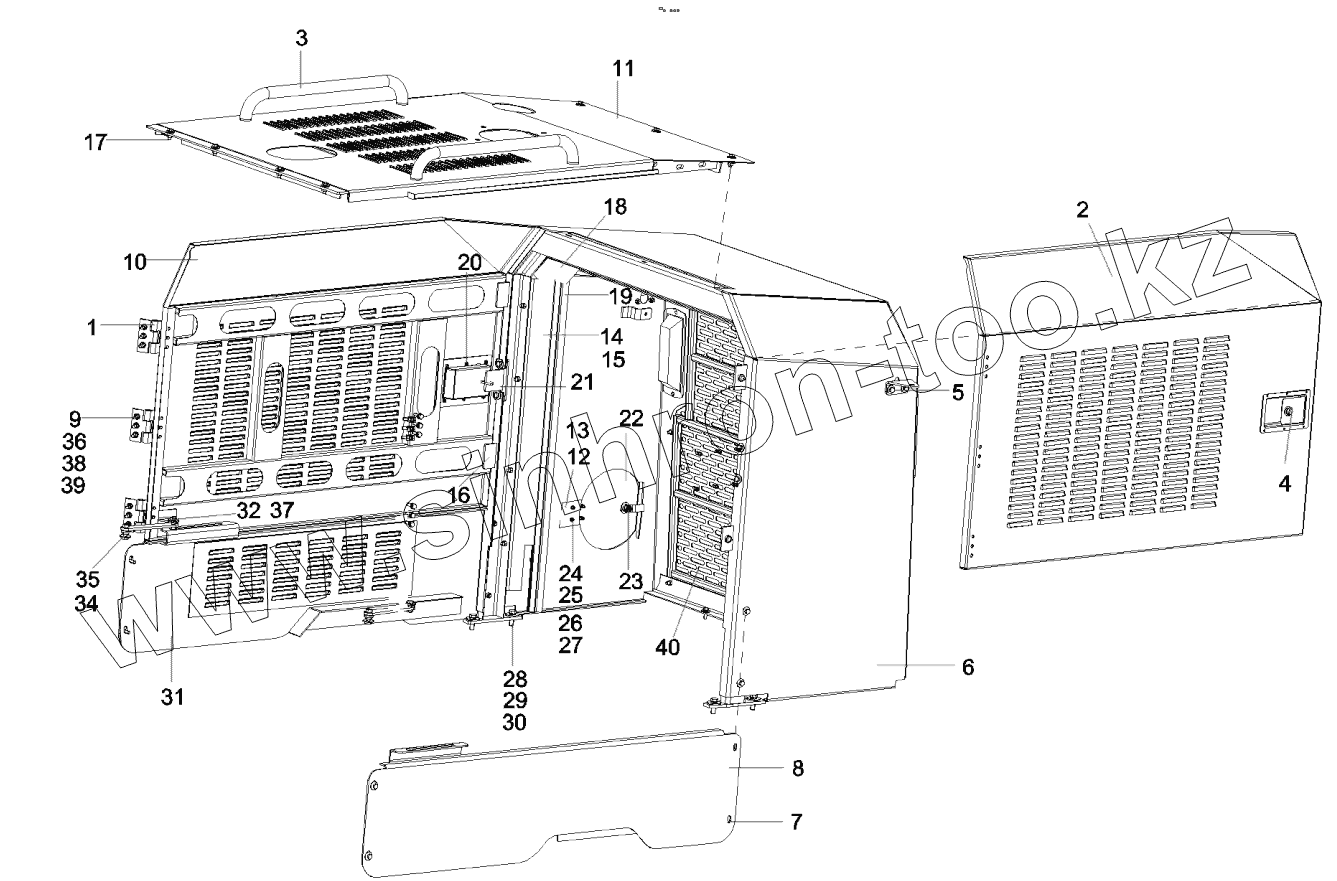

Каталог запасных частей к технике: SANY STG190C-8. 14009971 Hood assem STG180C-8W3.13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
34
35
36
37
38
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | A210891000007 | Hinge | |
| 2 | 14008165 | Left upper front door welding | |
| 3 | 12212538 | Handrail | |
| 4 | A222200000012 | Lock, door | |
| 5 | 12729943 | Bracket, tail lamp | |
| 6 | 14008965 | Stg180c-8w3.13.4 | |
| 7 | A210111000323 | Bolt | |
| 8 | 14008596 | Left guard board weldment | |
| 9 | A210401000017 | Washer | |
| 10 | 14008519 | Right upper front-door welging | |
| 11 | 14009246 | Cover welding | |
| 12 | 13229145 | Plate | |
| 13 | 60015644 | Hinge | |
| 14 | 14009581 | Right baffle | |
| 15 | 14009579 | Left baffle | |
| 16 | 11092222 | Pad, rubber, damping | |
| 17 | A210404000005 | Washer | |
| 18 | 14009690 | Upper baffle | |
| 19 | 12739371 | Strip, seal | |
| 20 | A210204000116 | Screw | |
| 21 | 13768064 | Lock | |
| 22 | 14008657 | Cover plate | |
| 23 | A222200000058 | Accessory, latch, electrical control box | |
| 24 | 21015836 | Screw | |
| 25 | A210307000015 | Nut | |
| 26 | A210401000015 | Washer | |
| 27 | A210405000005 | Washer | |
| 28 | A210111000203 | Bolt | |
| 29 | A210404000004 | Washer, 12 GB96.1 | |
| 30 | A210401000002 | Washer | |
| 31 | 14008642 | Right guard board weldment | |
| 32 | A210307000017 | Nut | |
| 34 | A210111000197 | Bolt | |
| 35 | A210404000003 | Washer | |
| 36 | A210307000012 | Nut | |
| 37 | A210111000026 | Bolt | |
| 38 | A210405000007 | Washer | |
| 39 | A210111000293 | Bolt | |
| 40 | 14007922 | Net plate weld |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
