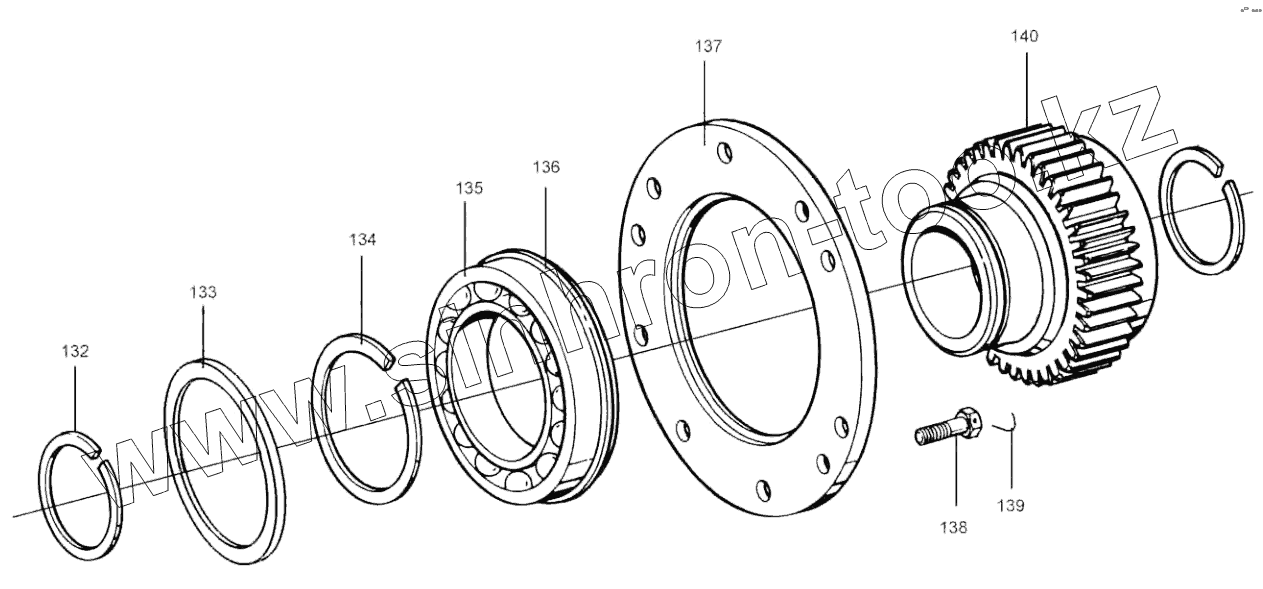

Каталог запасных частей к технике: SANY STC250S5. A220803000001 Transmission GP

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано QY50CS93 RSC45C RSC45C SDCY90K6C SSR120AC-8 STC250H STC250S5 STG190C-8 SY135C8 SY210C8 SY215C9 SY335C8 SY5250GJB6C SY5320THB 470C-8S SY55C9 SY65C SY75C SY75C9I2H SYM5190THBDZ 30 YZ18C YZ20C

Схема > Не выбрано 11213579 STC250S5 Truck crane body 11226198 Chassis, truck crane 11226406 Cab GP & assembly 11287485 Cab GP 11287482 Cab white-body GP 11287478 Bracket GP, installation, cab body 11657671 Inner ornament GP, cab 11657669 Insrument panel GP (narrow crane) 11657669 Insrument panel GP (narrow crane) 11657664 Carpet Assemble 12607214 Plate , Inner Protective SJC6125W3_590 11657661 Sealing GP 11657659 Accessories assemble, inner ornament 11653679 Outer ornament GP, driver's cab 11653677 Wheel housing GP 11653675 Pedal GP 11653668 Mirror GP, viewing 11653673 Glass GP, cab 11653752 Bumper GP 11653672 Flowguide Assembly 11653671 Handrail GP 11653670 Panel, front, narrow vehicle 11287319 Electrical system, cab, EURO-III 11287319 Electrical system, cab, EURO-III 11287319 Electrical system, cab, EURO-III 11287319 Electrical system, cab, EURO-III 11287319 Electrical system, cab, EURO-III 11287470 Accessories GP 11706290 Nameplate & installation diagram 11229069 Device, power system 11379530 System, oil supply 11219457 Engine and suspension 11220269 Air intake system 11228436 System, exhaust A220401000197 Valve, brake, exhaust 11227819 Cooling system A229900007794 Radiator 11236925 Device, sound insulation 11060387 Device, power train 11058753 Clutch & control mechanism 11050111 Transmission & control device 10047858 Control lever, transmission A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP 11050264 Drive shaft device A229900006195 Drive shaft A229900003320 Drive shaft 11701336 Control device, chassis 10243939 Weldment, two-force rod, chassis valve 11400545 Weldment, two-force rod, chassis 11229913 Device, frame structure system 11192161 Bracket GP, boom 11603784 Platform GP 11603784 Platform GP 11603784 Platform GP 12199468 Spare tyre rack assem. 00000182 Dowel GP, upper 11287767 Fender GP, middle, right 11480538 Fender GP,front,right 11287653 Fender GP, middle, left 11200388 Mudguard GP, RH, rear 10002419 Cap MTG GP, tank filler 10173923 Toolbox body GP 11201445 Mudguard GP, rear, LH 11584037 Fixed device, hook block 11233824 Hood, engine 11229638 Moveable outrigger GP A810312000264 Pan, 5th outrigger 11688282 Vertical cylinder, front 11688296 Vertical cylinder, rear 11682403 Suspension, axle 11272867 Suspension GP, front A810304040014 Tire & wheel GP A210881000047 Type GP 10032080 Suspension GP, rear A810314010002 Beam GP, compensating 11698521 Hydraulic system, chassis 11686582 Tank GP, oil, hydraulic 11602527 Hydraulic pipeline, chassis 11602499 Pipe GP, return & suction, chassis 00001487 Oil pump GP 60158887 GearPump A229900002424 Clamp, pipe, single section 11382765 Pipe GP, front outrigger 11501919 Pipeline, steel, outrigger 10138606 Connector GP, 5-way 21026701 Clamp, pipe, single 11502125 Pipeline, rubber, outrigger 10138579 Valve GP, multiway 11000770 Pipe GP, rear outrigger A810302000154 Swing connector, center 10227927 Joint, swing, central 11230009 Electrical system, chassis 11230009 Electrical system, chassis 11230009 Electrical system, chassis 10957738 Storage battery & tank body assembly GP 11232450 Device, brake system 11232450 Device, brake system 11232450 Device, brake system 10490133 Tube GP, air inlet 10490247 Tube 2 GP, steel, air intake, desiccator 10912226 Bandage GP, air reservoir 10490167 Pipe GP, steel, connection, regeneration cylinder 10810481 Steel pipe GP, connection, check valve 12148180 Steering system layout SYM5304J3E.5 11046639 Steering system 11831991 Pipeline, steering 12457644 Boom assembly STC250S5.1A 12457644 Boom assembly STC250S5.1A 12457644 Boom assembly STC250S5.1A 12457644 Boom assembly STC250S5.1A 12457644 Boom assembly STC250S5.1A 12457644 Boom assembly STC250S5.1A 12759685 Telescopic mechanism STC250S5.1A.5 12759685 Telescopic mechanism STC250S5.1A.5 10053527 Guide pulley assembly 10137468 Pulley GP 10138404 Wheel 10519934 Expansion Arm Oil Cylinder Assy 12295562 Rope supporting pulley 12277377 Cord roller 12277379 Rotary drum assemblySTC250.1A.9.1 10669838 Roller, rope holder 10138100 Pulley GP 10138120 Wheel GP, guide 11052076 Pulley, boom-tip 11702832 Layout plan, nameplate 11702832 Layout plan, nameplate 11702832 Layout plan, nameplate 11699886 Electrical system 11700771 Electric diagram, boom 11141483 Harness 2, boom 11661100 Limiter GP, height 10022380 Weight, circular 10044528 Weight 10044511 Weight 11301803 Harness, boom 11699666 Electric diagram, turntable 11699666 Electric diagram, turntable 12386447 Layout of electric control cabinet 12336020 Harness,clectric control cabinet 11301919 Cluster 1 11697397 Conducting ring AS 11310893 Harness, solenoid valve 10140655 Lamp AS, outline, rear 10014097 Diagram, electrical, jib 10142438 Harness, jib 11241964 Operator's cab, superstructure 11243871 Device GP, operation, superstructure 10052944 Device, operation, superstructure 10850323 Control lever GP 10850324 Control lever GP 10850325 Control lever GP 11141079 Device, protection 11694060 Assembly, operator's cab, superstructure 12438831 SJC6225HK4 crane operator station asse 12438832 Operator station body, crane SJC6225HK4 11823983 Bodywork GP,operator's cab 11255467 Door GP, operator's cab 11255468 Inner plate GP, door, operator's cab 11765453 Bracket GP,mounting,operator's cab bodywork 11826280 Accessories GP,operator's cab (1/2) 11826280 Accessories GP,operator's cab (2/2) 12331456 Transfer mechanism assembly, lock SJC62 11708686 Inner-decoration assembly (25T) 11694908 Front Instruments panel assembly (25T) 11694919 Console GP, right 11694930 Plate GP, protect, decoration, inner 11696050 System,seal 11287380 Seat GP 11694935 Assembly,outer decoration 11696042 Glass GP,narrow 11756317 Electric system, control room SJC62II25HS (1/3) 11756317 Electric system, control room SJC62II25HS (2/3) 12697659 uppercarriage hydraulic system STC250S5.4 11662072 Pipeline, telescoping 10986978 Overflow valve GP 10884999 Valve GP, two-in-one, one-way 11648086 Pipeline, telescoping cylinder 11660615 Pipe GP, main, superstructure (1/2) 11660615 Pipe GP, main, superstructure (2/2) A229900002039 Clamp, pipe, single section 10987235 Assembly GP, solenoid valve 12294222 Valve,main,assem. 12171292 Get-on multi-way valve 11665424 Pipe GP, winch (1/2) 11665424 Pipe GP, winch (2/2) 11664995 Motor GP, winch 11663011 Balanced valve GP, winch 11466035 Block GP, transition, winch 11466051 Valve GP, one-way, prefilling 60156515 Plunger Motor 12700914 Rotary and Air condition oil circurt STC2 (1/2) 12700914 Rotary and Air condition oil circurt STC2 (2/2) 12207548 Rotary cushion valve assembly STC250S1.12 11549353 Assembly GP, directional valve, solenoid B220400000079 Valve, directional, electromagnetic 10138470 Valve GP, throttle, one-way 12700653 Oil return and Oil Drain STC250S5.4.6 (1/3) 12700653 Oil return and Oil Drain STC250S5.4.6 (3/3) 11687405 Block GP, oil return 11576345 Block GP,oil drain 11195831 Valve GP, check 11666399 Oilway, luffing 11560486 Balanced valve GP, luffing 11241579 Turntable GP 10123663 Mirror GP, rear-view, turntable 11117463 Counterweight AS 12822492 3-hinge-point assem STC250S5.2.10 11072931 Swing mechanism 11614590 Bearing, slewing 60030745 Reducer GP 11074232 Hoisting mechanism 60030746 Reducer GP 11079343 Engine shed 10138968 Ladder GP 11243990 Seal plate AS, front, right 10517054 Cylinder, luffing 11051639 Hook GP 10131948 Jib 10131948 Jib 10137574 Pulley GP 12239775 Auxiliary cramponSTC250H-I.8 10137968 Hook AS, auxiliary

132

133

134

135

136

137

138

139

140

Позиция на иллюстрации	Заводской номер детали		Название детали
132	60075212		Ring, stop
133	60125262		Fixed ring, retainer ring
134	60104392		Ring, stop
135	60122659		Bearing, radial ball, single-row, with lock groove
136	60075213		Ring, stop
137	60075245		Locating plate, bearing, auxiliary box
138	60122670		Bolt, head with hole, hexagon, small
139	60104309		Iron wire
140	60042525		Drive gear, auxiliary box

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
