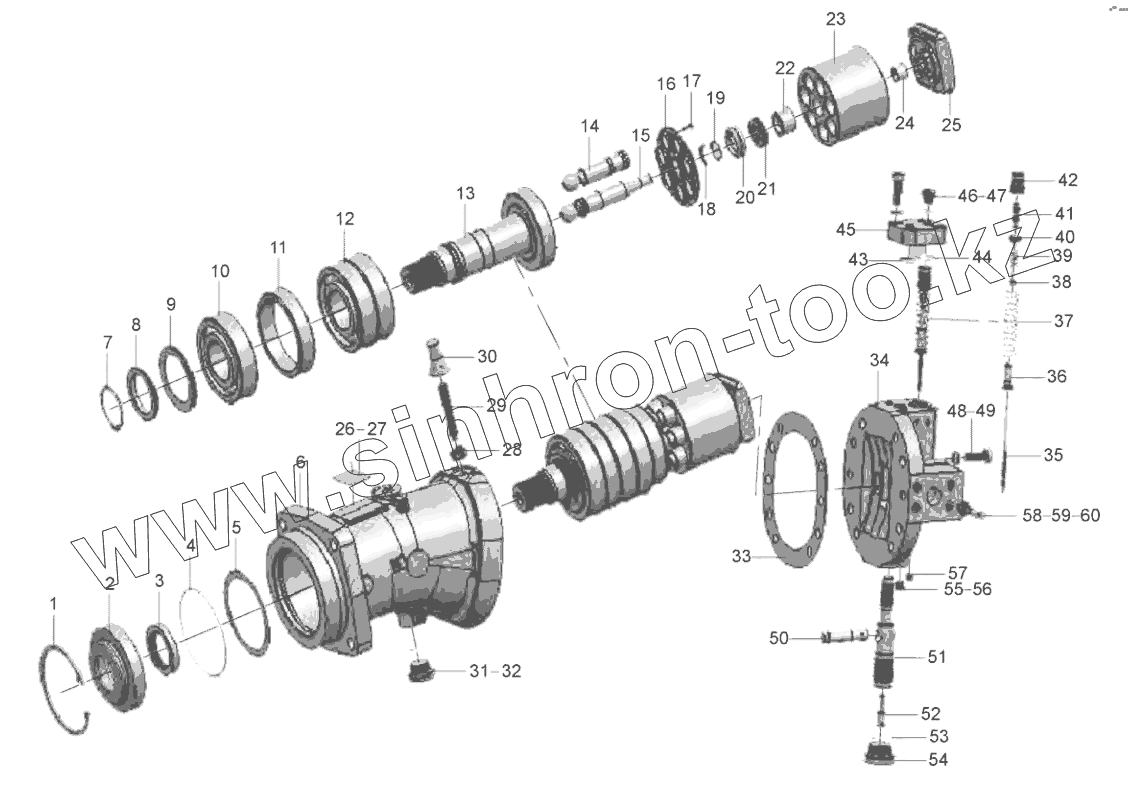

Каталог запасных частей к технике: SANY STC250S5. 60156515 Plunger Motor

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Позиция на иллюстрации Заводской номер детали Название детали
1 A210416000047 Ring, retaining
2 60107553 Seal ring
3 60107676 Ring, seal
4 A210609000349 O-ring
5 60107606 Shim, adjustment
6 60107630 Key
7 A210414000037 Ring, retainer
8 60107592 Seat, spring
9 60107609 Spring, disc
10 60107576 Bearing, contact ball, paired installation angle
11 60107597 Seat, spring
12 60107575 Valve body, select
13 60107579 Shaft, main, Z-type
14 60107633 Circlip, hole
15 60107561 Plunger, limit
16 60107659 Plate, pressure
17 60107646 Screw, flat round head, inner hexagon
18 60107538 O-ring
19 60107607 Washer, adjustment
20 60107591 Seat, spring
21 60107608 Washer, adjustment
22 60107620 Cylinder body
23 60107619 Spring, reposition
24 60107649 Plate, valve
25 60107648 Rod, screw, variable displacement
26 60107678 Nameplate
27 A210510000010 Rivet
28 60107643 Pad, seal
29 60107647 Screw, inner hexagon
30 60107681 Retainer, shoe
31 60107671 Seal ring, O-type
32 60107640 Plug, screw
33 60107642 Screw plug
34 60107624 Plate, baffle, rear
35 60107541 Lever, driving
36 60107588 Seat, spring
37 60107585 Seat, check valve
38 60107590 Seat, spring
39 60107586 Spring
40 60107589 Seat, spring
41 60107572 Sleeve, balanced valve
42 60107571 Valve body, end
43 A210609000104 O-ring
44 60107670 O Ring
45 60107615 Cover, end
46 60107669 Seal ring, O-type
47 60107639 Screw plug
48 24003929 Washer
49 A210204000225 Screw
50 60107539 Clamp, semi-circle
51 60107581 Housing body, pump
52 60107581 Housing body, pump
53 60107672 Seal ring, O-type
54 60107641 Screw plug
55 60107668 Main shaft
56 60107638 Screw plug
57 60107644 Nut, seal
58 60107563 Ball, steel
59 60107583 Spring, check valve
60 60107660 Keep plate
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
