12759685 Telescopic mechanism STC250S5.1A.5

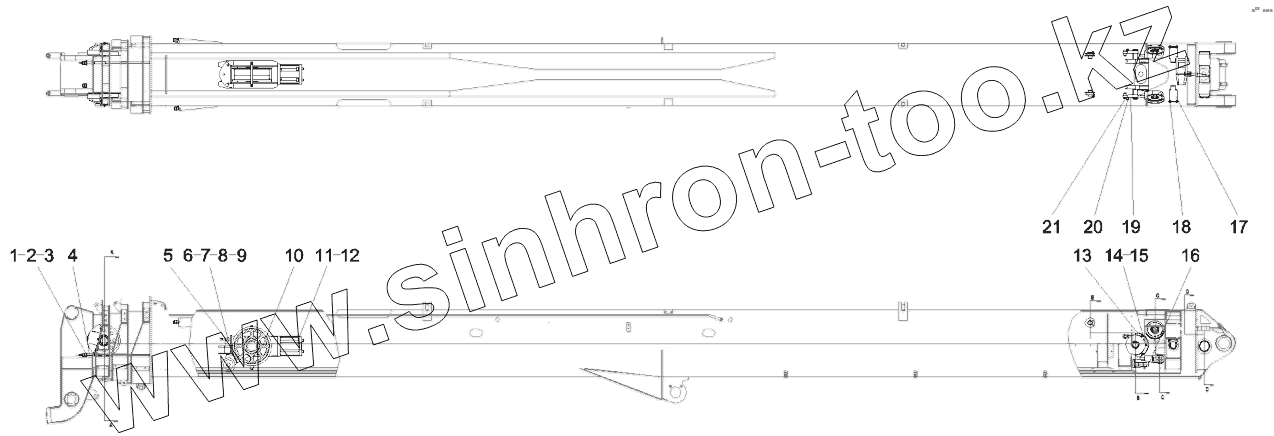

Каталог запасных частей к технике: SANY STC250S5. 12759685 Telescopic mechanism STC250S5.1A.5
