11688296 Vertical cylinder, rear

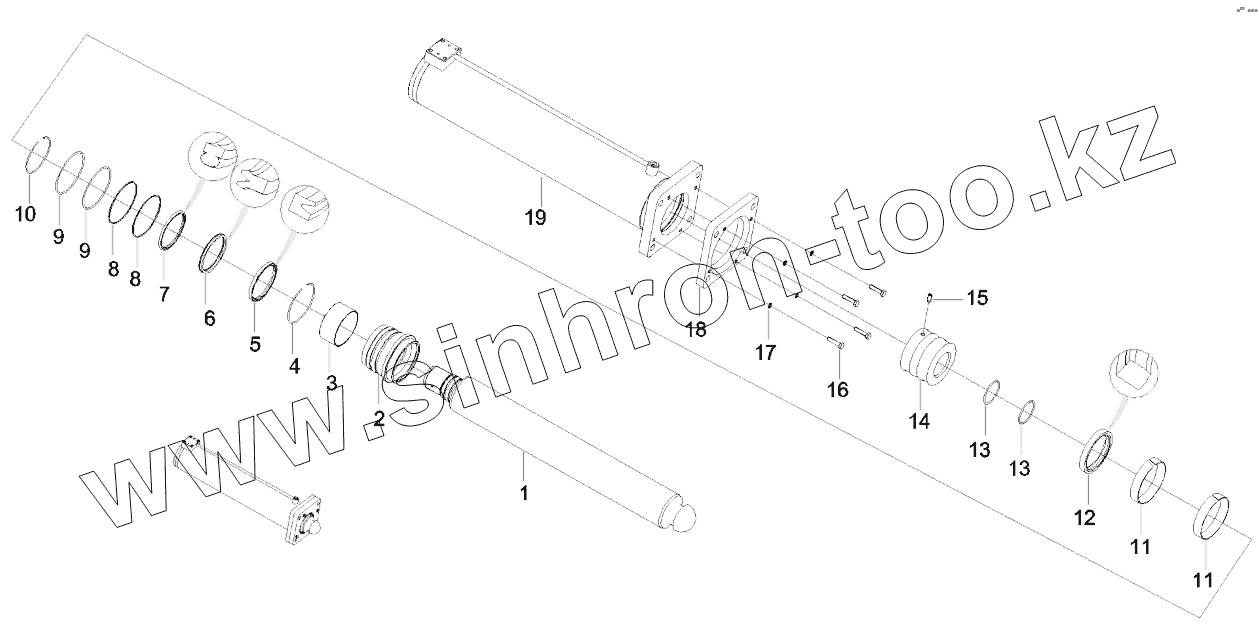

Каталог запасных частей к технике: SANY STC250S5. 11688296 Vertical cylinder, rear
