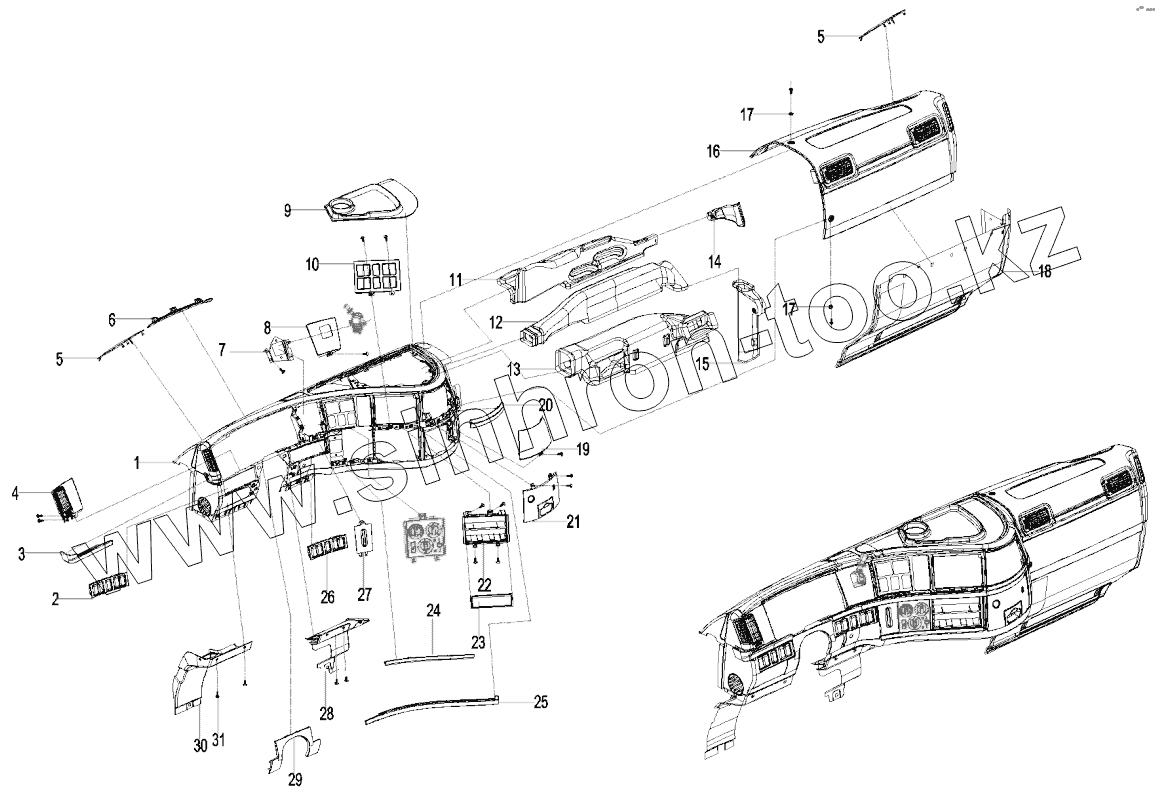

Каталог запасных частей к технике: SANY STC250S5. 11657669 Insrument panel GP (narrow crane)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Позиция на иллюстрации Заводской номер детали Название детали
1 11213713 Insrument panel gp, left
2 11213716 Panel gp, switch, lower, left, instrument
3 11213720 Decorative strip gp, left
4 11213724 Panel gp, switch, vent, left
5 11213719 Cover gp, louder-speaker
6 11205755 Upper decorating strip, mask, instrument
7 11222104 Bracket, hand brake
8 11205606 Cover, handle, hand brake
9 11213725 Large panel gp, center
10 11246924 Panel, switch
11 11209266 Air pipe, defrosting, right
12 11209222 Air pipe, feet blowing, right
13 11209226 Air pipe, air outlet, right
14 11208636 Air pipe, air outlet, right
15 11208621 Air pipe, right
16 11209220 Insrument panel gp, right, upper
17 11208485 Blank cap
18 11209267 Guard board, lower, right, insrument panel
19 11213726 Panel gp, middle decoration
20 11213723 Decorative strip gp, middle decoration panel
21 11213715 Panel gp, ash tray
22 11208388 Panel, radio
23 11318849 Cove, radio
24 11213714 Decorative strip gp, lower, middle
25 11213721 Decorative strip gp, middle
26 11213717 Panel gp, switch, lower, right, instrument
27 11208375 Cover, hand brake
28 11208371 Side panel, lower, right, cab
29 11213722 Upper mask gp, cab
30 11208349 Side panel, lower, left, cab
31 11326706 Screw, self-tap
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
