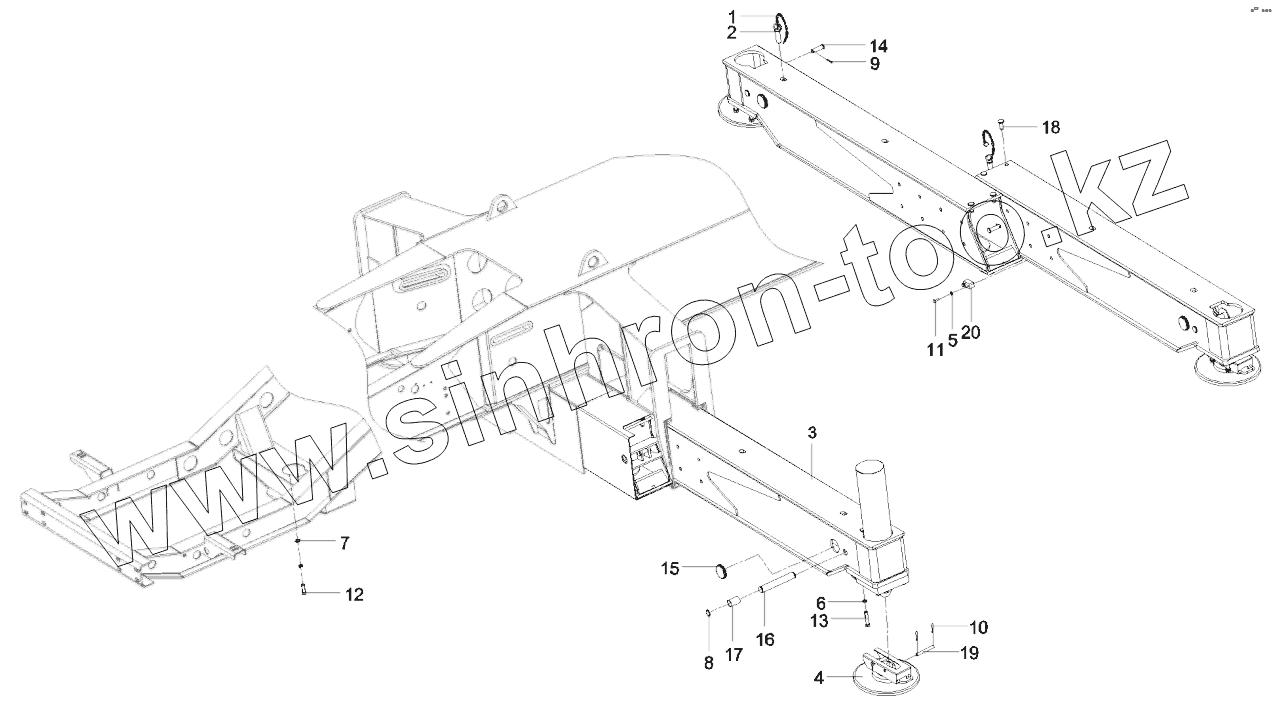

Позиция на иллюстрации
Заводской номер детали
Название детали
1
A210861000001
Chain
2
A810420000979
Lock pin welding
3
11229649
Outrigger, movable
4
12817159
Support foot tray SYM5304J3.3.5.3
5
A210405000011
Washer
6
A210401000004
Washer
7
A210405000003
Washer
8
A210416000048
Ring, retainer
9
A210501000008
Pin
10
A829900002661
Pin, elastic
11
A210111000018
Bolt
12
A210111000055
Bolt
13
A210111000347
Bolt
14
12818027
Pin SYM5304J3.3.5-1
15
10003350
Cover, round hole
16
11048553
Shaft, pin
17
11048554
Spacer bushing
18
11048555
Adjustment block
19
11050269
Locating pin
20
11316005
Support block
