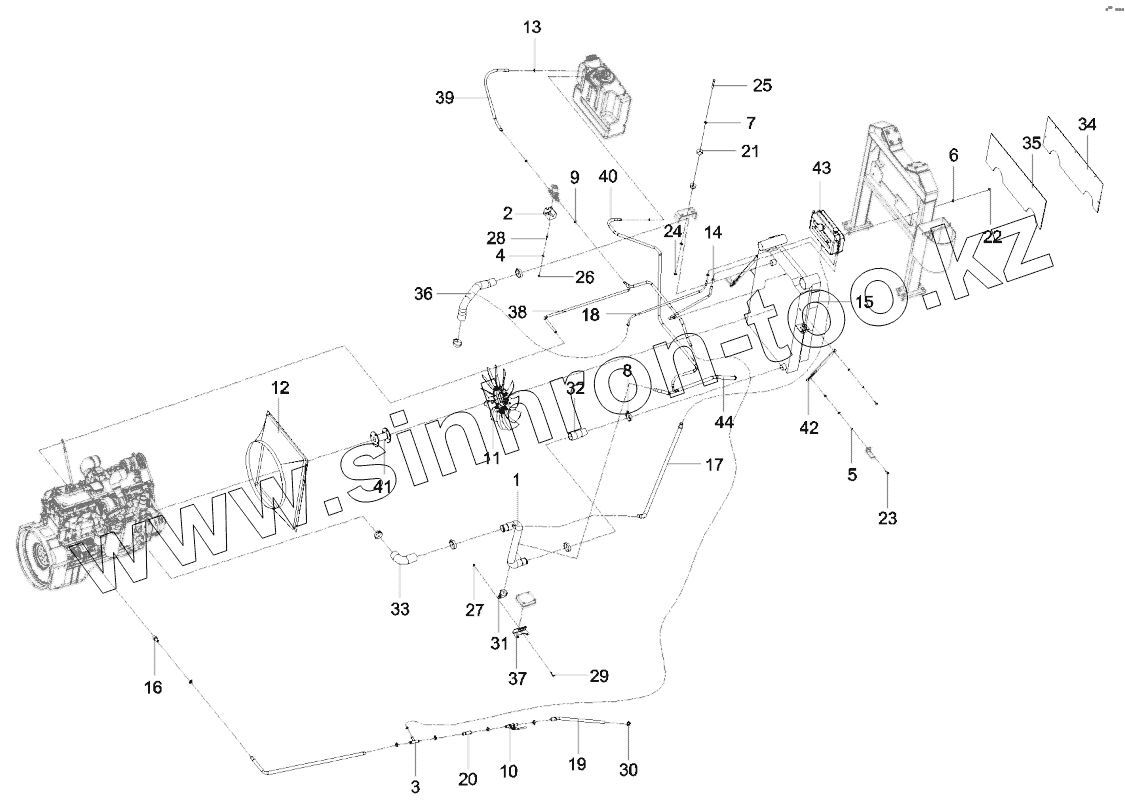

Каталог запасных частей к технике: SANY STC250S5. 11227819 Cooling system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Позиция на иллюстрации Заводской номер детали Название детали
1 10506723 Steel pipe GP, water outtake, radiator
2 11226147 Bracket GP, solenoid valve, water-cutoff
3 12186011 SYM5304J3.1.5.8
4 A210405000007 Washer
5 A210401000001 Washer
6 A210405000011 Washer
7 A210405000001 Washer
8 A229900002031 Anchor ear, T-type
9 A229900003104 T-clamp
10 60022386 Valve, ball
11 60108035 Fan
12 60199713 Wind protection cover
13 A229900002961 Hoop, hose
14 A210855000003 Hoop
15 A229900007794 Radiator
16 10089491 Joint, heater
17 10107342 Hose, water
18 10107345 Hose, rubber, degassing
19 10108187 Water pipe, warm wind, I
20 10108200 Water pipe, warm wind, II
21 A810101000148 Cushion, radiator
22 A210307000017 Nut
23 A210111000018 Bolt
24 A210319000006 Nut
25 A210110000013 Bolt
26 A210307000012 Nut
27 A210319000004 Nut
28 A210111000091 Bolt
29 A210111000092 Bolt
30 A229900002964 Hoop, ring, hose
31 11476844 Clamp, water pipe
32 10177366 Water rubber pipe, reducing
33 10177385 Hose, bend, rubber
34 10177388 Plate, heat-insulation, radiator
35 10177391 Sponge, heat-insulation, radiator
36 11296163 Rubber pipe, water intake, radiator
37 11818009 Bracket, steel pipe, water intake
38 11227816 Heating pipe, ureophil tank
39 11227817 Heating pipe, ureophil tank
40 11227818 Pipe, return water
41 12693822 Connecting shaft of fan SYM5304J3.1.5-7
42 11346633 Pull rod, radiator
43 11143844 Water tank, expansion
44 10074296 Water pipe, warm air
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
