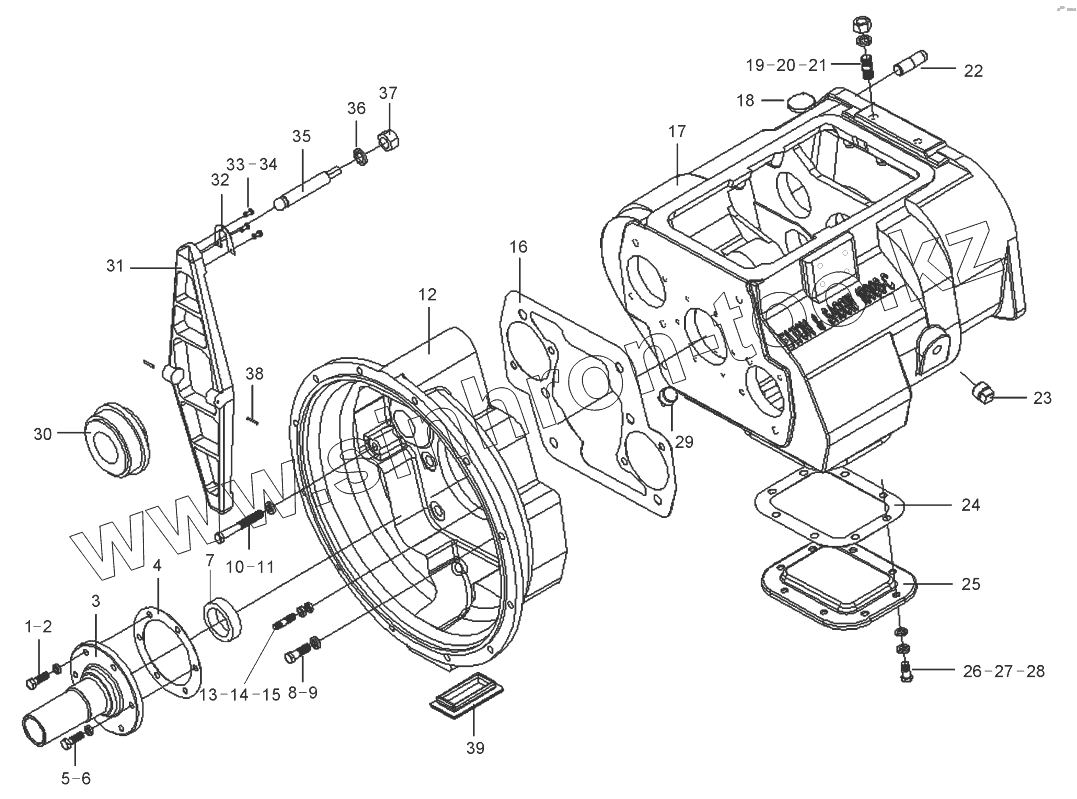

Каталог запасных частей к технике: SANY STC250H. A220803000001 Transmission GP

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Позиция на иллюстрации Заводской номер детали Название детали
1 60122654 Bolt, head with hole, hexagon, small
2 60105586 Washer, spring
3 60104379 Cover, bearing, shaft one
4 60075242 Liner, bearing cover, shaft one
5 60103965 Bolt, hexagon
6 60105586 Washer, spring
7 60104390 Oil seal, bearing cover, shaft one
8 60103464 Bolt, hexagon
9 60105587 Washer, spring
10 60122638 Bolt, hexagon
11 60105587 Washer, spring
12 60075099 Housing, clutch
13 60104370 Studs
14 60106925 Washer, spring, standard
15 A210319000022 Nut
16 60075238 Bushing, housing body, clutch
17 60125258 Housing body, transmission
18 60075230 Magnet, round
19 60122651 Studs
20 60106925 Washer, spring, standard
21 60090819 Nut, central
22 60075152 Dowel, rear cover
23 60122632 Plug, screw, conical, square head
24 60075122 Window cushion, power take-off, bottom
25 60075123 Window cover, power take-off, bottom
26 60125240 Bolt, hexagon
27 60105587 Washer, spring
28 60105621 Washer
29 60122628 Plug, screw, conical, square head
30 60125246 Release bearing unit, self-aligning clutch
31 A229900005424 Shift fork, separating, clutch
32 60125233 Lock plate
33 60107020 Screw
34 60125275 Spring washer, for combination parts
35 60125264 Separation column
36 60106926 Spring washer, standard
37 60125235 Nut
38 60125261 Cylindrical pin, elastic
39 60125256 Hand hole cover, clutch
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
