A220600000039 Axle GP, middle

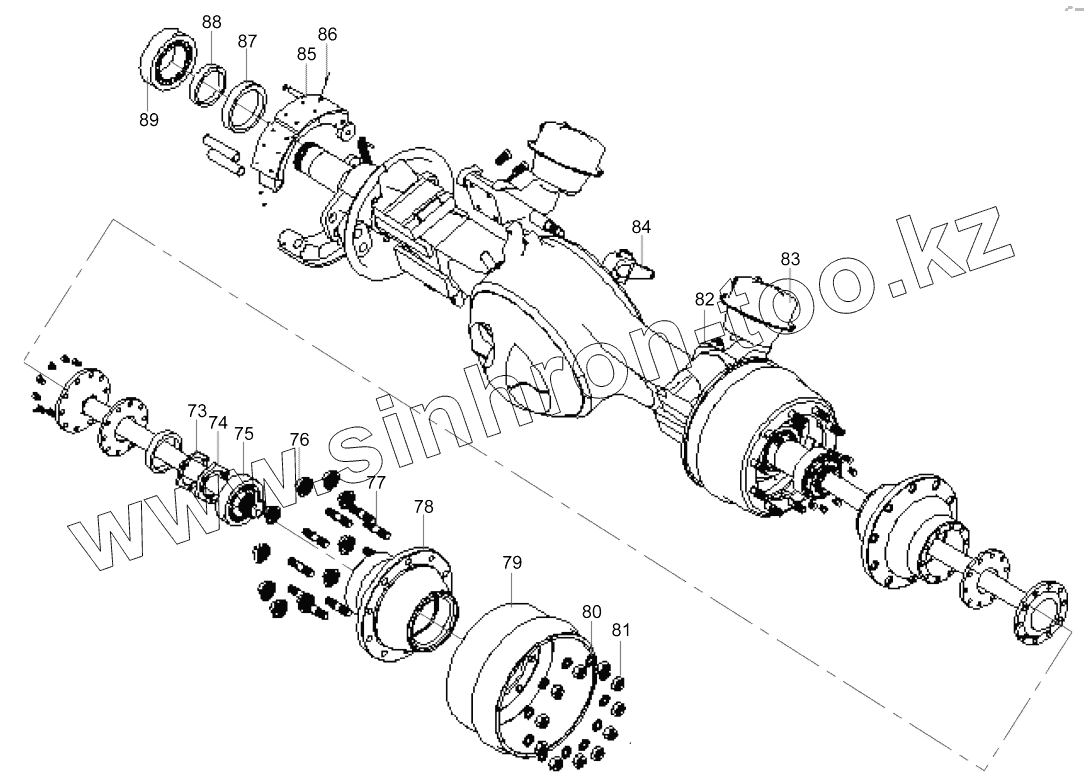

Каталог запасных частей к технике: SANY STC250H. A220600000039 Axle GP, middle
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
QY50CS93
RSC45C
RSC45C
SDCY90K6C
SSR120AC-8
STC250H
STC250S5
STG190C-8
SY135C8
SY210C8
SY215C9
SY335C8
SY5250GJB6C
SY5320THB 470C-8S
SY55C9
SY65C
SY75C
SY75C9I2H
SYM5190THBDZ 30
YZ18C
YZ20C
Схема
>
Не выбрано
11045648 STC250H vehicle crane bodySTC250H.0
11056381 Chassis, truck crane
11060507 Cab GP & air-conditioner
11052214 Cab GP & assembly
11287485 Cab GP
11287482 Cab white-body GP
11287478 Bracket GP, installation, cab body
11255656 Installation bracket GP, door, right
11255651 Installation bracket GP, door, left
11657671 Inner ornament GP, cab
11657669 Insrument panel GP (narrow crane)
11657669 Insrument panel GP (narrow crane)
11657664 Carpet Assemble
11657663 Guard plate GP, inner ornament
11657661 Sealing GP
11657660 Seat GP
11657659 Accessories assemble, inner ornament
11653679 Outer ornament GP, driver's cab
11653677 Wheel housing GP
11653675 Pedal GP
11653668 Mirror GP, viewing
11653673 Glass GP, cab
11653752 Bumper GP
11653672 Flowguide Assembly
11653671 Handrail GP
11653670 Panel, front, narrow vehicle
11287319 Electrical system, cab, EURO- III
11287319 Electrical system, cab, EURO- III
11287319 Electrical system, cab, EURO- III
11287319 Electrical system, cab, EURO- III
11287470 Accessories GP
11234953 Heating system, air conditioner
60005669 Condenser
60005656 Compressor
11031377 Nameplate & label installation drawing
11061227 Device, power system
11046970 Engine and suspension
11046144 System, oil supply
11043547 Air intake system
11047173 System, exhaust
60009016 Valve, brake, air exhaust
11047992 Cooling system
60028227 Radiator, combination
11060387 Device, power train
11058753 Clutch & control mechanism
A229900003604 Clutch GP
11050111 Transmission & control device
10047858 Control lever, transmission
A220803000001 Transmission GP
A220803000001 Transmission GP
A220803000001 Transmission GP
A220803000001 Transmission GP
A220803000001 Transmission GP
A220803000001 Transmission GP
A220803000001 Transmission GP
A220803000001 Transmission GP
A220803000001 Transmission GP
A220803000001 Transmission GP
A220803000001 Transmission GP
A220803000001 Transmission GP
A220803000001 Transmission GP
A220803000001 Transmission GP
11050264 Drive shaft device
A229900006195 Drive shaft
A229900003320 Drive shaft
11403679 Control device, chassis
00001680 Instation, left chassis valve controller
10008284 Control handle GP, chassis right
10243939 Weldment, two-force rod, chassis valve
11400545 Weldment, two-force rod, chassis
12378119 Frame construction system device SYM5331J
A810312000264 Pan, 5th outrigger
12197747 Bracket assembly
11192161 Bracket GP, boom
11536782 Platform GP
11536782 Platform GP
11536782 Platform GP
12199468 Spare tyre rack assembly
00000182 Dowel GP, upper
10002419 Cap MTG GP, tank filler
11200388 Mudguard GP, RH, rear
10173923 Toolbox body GP
11201445 Mudguard GP, rear, LH
12041246 Moveable outrigger assembly SYM5331JF.3.5
11757666 Horizontal Outrigger Oil Cylinder QY17ZX
11584037 Fixed device, hook block
11052256 Hood GP, engine
11773417 Cylinder,outrigger five
11275551 Suspension, axle
A810304040014 Tire & wheel GP
A210881000047 Type GP
10054178 Adaptor GP, front bridge belt
A220600000027 Axle GP, front
A220600000027 Axle GP, front
60017551 Brake, front LH
60017550 Brake, front RH
10032080 Suspension GP, rear
A810314010002 Beam GP, compensating
11272867 Suspension GP, front
A220600000038 Rear bridge GP
A220600000038 Rear bridge GP
A220600000039 Axle GP, middle
A220600000039 Axle GP, middle
11221176 Hydraulic system, chassis
11050592 Tank GP, oil, hydraulic
11502129 Hydraulic pipeline, chassis
11502126 Pipe GP, return & suction, chassis
60158886 Gearpump
11715701 Valve block GP, flow collecting
11382765 Pipe GP, front outrigger
11501919 Pipeline, steel, outrigger
10138606 Connector GP, 5-way
11502125 Pipeline, rubber, outrigger
10138579 Valve GP, multiway
60016570 Valve, multiway
11000770 Pipe GP, rear outrigger
A810302000154 Swing connector, center
10227927 Joint, swing, central
11270774 Electrical system, chassis, EURO III
11270774 Electrical system, chassis, EURO III
11270774 Electrical system, chassis, EURO III
11270774 Electrical system, chassis, EURO III
11270774 Electrical system, chassis, EURO III
A810201109012 Storage battery & tank body assembly GP
10565980 Device, brake system
10565980 Device, brake system
10565980 Device, brake system
10565980 Device, brake system
10565980 Device, brake system
10135646 Bandage GP, air reservoir
10490247 Tube 2 GP, steel, air intake, desiccator
10490167 Pipe GP, steel, connection, regeneration cylinder
10490133 Tube GP, air inlet
10810481 Steel pipe GP, connection, check valve
11048525 Device, steering system
11046639 Steering system
11281136 Pipeline, steering
12176374 Hoisting boom assembly STC250H.1B
12176374 Hoisting boom assembly STC250H.1B
12176374 Hoisting boom assembly STC250H.1B
12176374 Hoisting boom assembly STC250H.1B
12176374 Hoisting boom assembly STC250H.1B
12176374 Hoisting boom assembly STC250H.1B
10669845 Roller, rope holder
11885706 Cord roller
10669838 Roller, rope holder
10138100 Pulley GP
10138120 Guide pulley assembly
11052076 Pulley, boom-tip
12163854 Telescopic mechanism STC250H.1B.6
12163854 Telescopic mechanism STC250H.1B.6
12168120 Guide wheel support assembly STC250H.1B.6
11302735 Guide pulley assembly
11060515 Bracket GP, cylinder
11233559 Cylinder, telescoping
11234814 Cylinder, telescoping
12163859 Slide Wheel AssySTC250H.1B.6.9
11582449 Pulley GP
11107001 Layout plan, nameplate
11303186 Electrical system, superstructure
11302754 Electric system, boom
11661100 Limiter GP, height
10022380 ATB Cable Weight
10044528 Weight
10044511 Weight
11141483 Harness 2, boom
12300302 Boom harness
12300431 Boom harness
11302100 Electrical system, turntable
11301826 Harness, solenoid valve
11302009 Panel, control, circuit
11301814 Conducting ring component
11301919 Cluster 1
10140655 Lamp AS, clearance, rear
10014097 Diagram, electrical, jib
10142438 Harness, jib
11138128 Operator's cab, superstructure
11149729 Operator's cab mounting
11736479 Superstructure control room assembly
11712808 Bodywork GP,operator's cab
11255467 Door GP, operator's cab
11735659 Accessories GP,operator's cab
11694896 Decoration GP,inner
11694908 Front Instruments panel assembly (25T)
11694919 Console GP,right
11287481 Handrail box GP, pilot handle
11621335 Box,guard,left,hydraulic control
11621336 Box,guard,right,hydraulic control
11694930 Plate GP,protect,decoration,inner
11696050 System,seal
11287380 Seat GP
11694935 Assembly,outer decoration
11696042 Glass GP,narrow
11699664 25T unitive leading electric system of
11699664 25T unitive leading electric system of
11669992 Warm-air device, operator's cab
11231941 Air-conditioning system, operator's cab
60026126 Evaporator
11123593 Hydraulic system, superstructure
11568454 Oilway, main/auxiliary winch
11466051 Check valve GP, prefilling
11466035 Block GP, transition, winch
11466017 Balanced valve GP, winch
11570702 Oilway, luffing & telescoping
11570702 Oilway, luffing & telescoping
11572934 Valve GP, switch, telescoping cylinder
B220400000079 Valve, reversal, electromagnetic
B220401000349 Valve, reversal, electromagnetic
12229817 One-way overflow valve
11788466 Pipe GP, for return & drain
11788466 Pipe GP, for return & drain
11008088 Check valve GP
11464355 Check valve GP
A229900002327 Radiator
10138796 Assembly GP, main valve
B220401000290 Valve, multiway
11576402 Hoisting pipeline, center joint port
11576345 Block GP,oil drain
11197063 Block GP, oil return
11211177 Balanced valve GP, luffing
11572725 Oilway, main pressure
11179961 Valve GP, pilot
60059726 Valve, electromagnetic
B229900000018 Filter, oil, high-pressure
11789056 Pipe GP, control
11789056 Pipe GP, control
11789056 Pipe GP, control
11575543 Valve GP, changeover
11193811 Pipeline, telescoping cylinder
11574933 Oil circuit, pilot handle
11784563 Pipe GP, rotary & air-conditioner
11784563 Pipe GP, rotary & air-conditioner
11211894 Motor GP, air-conditioner
B220501000269 Motor, gear
10138470 Throttle valve GP, one-way
11242934 Valve GP, control, air-conditioner
11768148 Valve GP, cushion, rotary
11107542 Turntable
10138927 Pin, slewing lock
10123663 Mirror GP, rear-view, turntable
11063560 Three pin-connected joints GP
11072931 Swing mechanism
11614590 Bearing,slewing
60030745 Reducer GP
11074232 Hoisting mechanism
60030746 Reducer GP
11052418 Counterweight AS
11105905 Turntable body
11079343 Engine shed
10138968 Ladder GP
10074155 Cylinder, luffing
12197269 Jib boom STC250H.8A
10137574 Pulley GP
11051639 Hook GP
10137992 Hook, aux.
10137968 Aux. hook AS
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
Позиция на иллюстрации
Заводской номер детали
Название детали
73
A229900006751
Washer, lock
74
A221500000276
Nut
75
A221500000275
Bearing, outer, wheel hub
76
A210334000029
Nut, wheel
77
A229900005694
Bolt, wheel
78
A229900006744
Hub, rear
79
A229900005218
Brake hub, rear
80
A210404000002
Washer
81
A210307000029
Nut
82
A229900005221
Adjusting arm gp, brake gap, right, rear
83
A229900005219
Brake chamber gp, spring
84
A229900005220
Adjusting arm gp, brake gap, left, rear
85
A229900004770
Lining, friction, brake
86
A229900006750
Rivet
87
A229900006745
Rear hub oil sea assembly
88
A230101000354
Semi axis oil seal assembly
89
A221500000274
Bearing, inner, wheel hub
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
