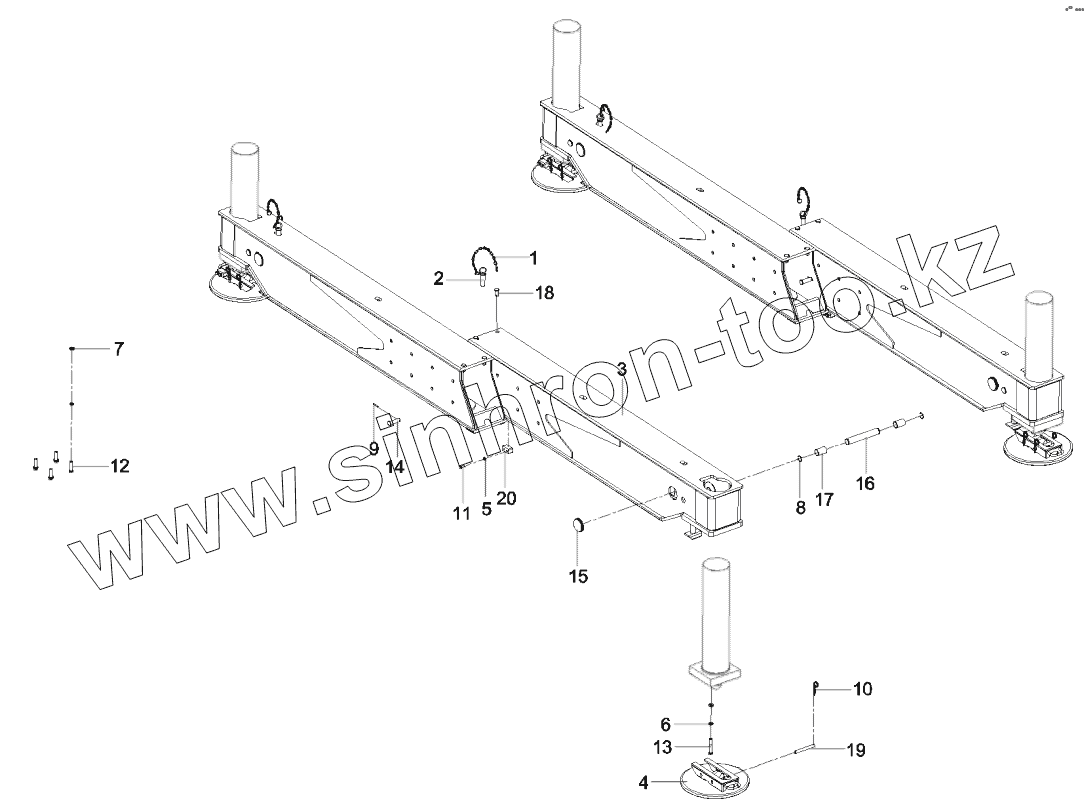

12041246 Moveable outrigger assembly SYM5331JF.3.5
Каталог запасных частей к технике: SANY STC250H. 12041246 Moveable outrigger assembly SYM5331JF.3.5
