5. 11570702 Oilway, luffing & telescoping

Каталог запасных частей к технике: SANY STC250H. 11570702 Oilway, luffing & telescoping

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано QY50CS93 RSC45C RSC45C SDCY90K6C SSR120AC-8 STC250H STC250S5 STG190C-8 SY135C8 SY210C8 SY215C9 SY335C8 SY5250GJB6C SY5320THB 470C-8S SY55C9 SY65C SY75C SY75C9I2H SYM5190THBDZ 30 YZ18C YZ20C

Схема > Не выбрано 11045648 STC250H vehicle crane bodySTC250H.0 11056381 Chassis, truck crane 11060507 Cab GP & air-conditioner 11052214 Cab GP & assembly 11287485 Cab GP 11287482 Cab white-body GP 11287478 Bracket GP, installation, cab body 11255656 Installation bracket GP, door, right 11255651 Installation bracket GP, door, left 11657671 Inner ornament GP, cab 11657669 Insrument panel GP (narrow crane) 11657669 Insrument panel GP (narrow crane) 11657664 Carpet Assemble 11657663 Guard plate GP, inner ornament 11657661 Sealing GP 11657660 Seat GP 11657659 Accessories assemble, inner ornament 11653679 Outer ornament GP, driver's cab 11653677 Wheel housing GP 11653675 Pedal GP 11653668 Mirror GP, viewing 11653673 Glass GP, cab 11653752 Bumper GP 11653672 Flowguide Assembly 11653671 Handrail GP 11653670 Panel, front, narrow vehicle 11287319 Electrical system, cab, EURO- III 11287319 Electrical system, cab, EURO- III 11287319 Electrical system, cab, EURO- III 11287319 Electrical system, cab, EURO- III 11287470 Accessories GP 11234953 Heating system, air conditioner 60005669 Condenser 60005656 Compressor 11031377 Nameplate & label installation drawing 11061227 Device, power system 11046970 Engine and suspension 11046144 System, oil supply 11043547 Air intake system 11047173 System, exhaust 60009016 Valve, brake, air exhaust 11047992 Cooling system 60028227 Radiator, combination 11060387 Device, power train 11058753 Clutch & control mechanism A229900003604 Clutch GP 11050111 Transmission & control device 10047858 Control lever, transmission A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP A220803000001 Transmission GP 11050264 Drive shaft device A229900006195 Drive shaft A229900003320 Drive shaft 11403679 Control device, chassis 00001680 Instation, left chassis valve controller 10008284 Control handle GP, chassis right 10243939 Weldment, two-force rod, chassis valve 11400545 Weldment, two-force rod, chassis 12378119 Frame construction system device SYM5331J A810312000264 Pan, 5th outrigger 12197747 Bracket assembly 11192161 Bracket GP, boom 11536782 Platform GP 11536782 Platform GP 11536782 Platform GP 12199468 Spare tyre rack assembly 00000182 Dowel GP, upper 10002419 Cap MTG GP, tank filler 11200388 Mudguard GP, RH, rear 10173923 Toolbox body GP 11201445 Mudguard GP, rear, LH 12041246 Moveable outrigger assembly SYM5331JF.3.5 11757666 Horizontal Outrigger Oil Cylinder QY17ZX 11584037 Fixed device, hook block 11052256 Hood GP, engine 11773417 Cylinder,outrigger five 11275551 Suspension, axle A810304040014 Tire & wheel GP A210881000047 Type GP 10054178 Adaptor GP, front bridge belt A220600000027 Axle GP, front A220600000027 Axle GP, front 60017551 Brake, front LH 60017550 Brake, front RH 10032080 Suspension GP, rear A810314010002 Beam GP, compensating 11272867 Suspension GP, front A220600000038 Rear bridge GP A220600000038 Rear bridge GP A220600000039 Axle GP, middle A220600000039 Axle GP, middle 11221176 Hydraulic system, chassis 11050592 Tank GP, oil, hydraulic 11502129 Hydraulic pipeline, chassis 11502126 Pipe GP, return & suction, chassis 60158886 Gearpump 11715701 Valve block GP, flow collecting 11382765 Pipe GP, front outrigger 11501919 Pipeline, steel, outrigger 10138606 Connector GP, 5-way 11502125 Pipeline, rubber, outrigger 10138579 Valve GP, multiway 60016570 Valve, multiway 11000770 Pipe GP, rear outrigger A810302000154 Swing connector, center 10227927 Joint, swing, central 11270774 Electrical system, chassis, EURO III 11270774 Electrical system, chassis, EURO III 11270774 Electrical system, chassis, EURO III 11270774 Electrical system, chassis, EURO III 11270774 Electrical system, chassis, EURO III A810201109012 Storage battery & tank body assembly GP 10565980 Device, brake system 10565980 Device, brake system 10565980 Device, brake system 10565980 Device, brake system 10565980 Device, brake system 10135646 Bandage GP, air reservoir 10490247 Tube 2 GP, steel, air intake, desiccator 10490167 Pipe GP, steel, connection, regeneration cylinder 10490133 Tube GP, air inlet 10810481 Steel pipe GP, connection, check valve 11048525 Device, steering system 11046639 Steering system 11281136 Pipeline, steering 12176374 Hoisting boom assembly STC250H.1B 12176374 Hoisting boom assembly STC250H.1B 12176374 Hoisting boom assembly STC250H.1B 12176374 Hoisting boom assembly STC250H.1B 12176374 Hoisting boom assembly STC250H.1B 12176374 Hoisting boom assembly STC250H.1B 10669845 Roller, rope holder 11885706 Cord roller 10669838 Roller, rope holder 10138100 Pulley GP 10138120 Guide pulley assembly 11052076 Pulley, boom-tip 12163854 Telescopic mechanism STC250H.1B.6 12163854 Telescopic mechanism STC250H.1B.6 12168120 Guide wheel support assembly STC250H.1B.6 11302735 Guide pulley assembly 11060515 Bracket GP, cylinder 11233559 Cylinder, telescoping 11234814 Cylinder, telescoping 12163859 Slide Wheel AssySTC250H.1B.6.9 11582449 Pulley GP 11107001 Layout plan, nameplate 11303186 Electrical system, superstructure 11302754 Electric system, boom 11661100 Limiter GP, height 10022380 ATB Cable Weight 10044528 Weight 10044511 Weight 11141483 Harness 2, boom 12300302 Boom harness 12300431 Boom harness 11302100 Electrical system, turntable 11301826 Harness, solenoid valve 11302009 Panel, control, circuit 11301814 Conducting ring component 11301919 Cluster 1 10140655 Lamp AS, clearance, rear 10014097 Diagram, electrical, jib 10142438 Harness, jib 11138128 Operator's cab, superstructure 11149729 Operator's cab mounting 11736479 Superstructure control room assembly 11712808 Bodywork GP,operator's cab 11255467 Door GP, operator's cab 11735659 Accessories GP,operator's cab 11694896 Decoration GP,inner 11694908 Front Instruments panel assembly (25T) 11694919 Console GP,right 11287481 Handrail box GP, pilot handle 11621335 Box,guard,left,hydraulic control 11621336 Box,guard,right,hydraulic control 11694930 Plate GP,protect,decoration,inner 11696050 System,seal 11287380 Seat GP 11694935 Assembly,outer decoration 11696042 Glass GP,narrow 11699664 25T unitive leading electric system of 11699664 25T unitive leading electric system of 11669992 Warm-air device, operator's cab 11231941 Air-conditioning system, operator's cab 60026126 Evaporator 11123593 Hydraulic system, superstructure 11568454 Oilway, main/auxiliary winch 11466051 Check valve GP, prefilling 11466035 Block GP, transition, winch 11466017 Balanced valve GP, winch 11570702 Oilway, luffing & telescoping 11570702 Oilway, luffing & telescoping 11572934 Valve GP, switch, telescoping cylinder B220400000079 Valve, reversal, electromagnetic B220401000349 Valve, reversal, electromagnetic 12229817 One-way overflow valve 11788466 Pipe GP, for return & drain 11788466 Pipe GP, for return & drain 11008088 Check valve GP 11464355 Check valve GP A229900002327 Radiator 10138796 Assembly GP, main valve B220401000290 Valve, multiway 11576402 Hoisting pipeline, center joint port 11576345 Block GP,oil drain 11197063 Block GP, oil return 11211177 Balanced valve GP, luffing 11572725 Oilway, main pressure 11179961 Valve GP, pilot 60059726 Valve, electromagnetic B229900000018 Filter, oil, high-pressure 11789056 Pipe GP, control 11789056 Pipe GP, control 11789056 Pipe GP, control 11575543 Valve GP, changeover 11193811 Pipeline, telescoping cylinder 11574933 Oil circuit, pilot handle 11784563 Pipe GP, rotary & air-conditioner 11784563 Pipe GP, rotary & air-conditioner 11211894 Motor GP, air-conditioner B220501000269 Motor, gear 10138470 Throttle valve GP, one-way 11242934 Valve GP, control, air-conditioner 11768148 Valve GP, cushion, rotary 11107542 Turntable 10138927 Pin, slewing lock 10123663 Mirror GP, rear-view, turntable 11063560 Three pin-connected joints GP 11072931 Swing mechanism 11614590 Bearing,slewing 60030745 Reducer GP 11074232 Hoisting mechanism 60030746 Reducer GP 11052418 Counterweight AS 11105905 Turntable body 11079343 Engine shed 10138968 Ladder GP 10074155 Cylinder, luffing 12197269 Jib boom STC250H.8A 10137574 Pulley GP 11051639 Hook GP 10137992 Hook, aux. 10137968 Aux. hook AS

13

14

15

16

17

18

19

20

21

22

23

24

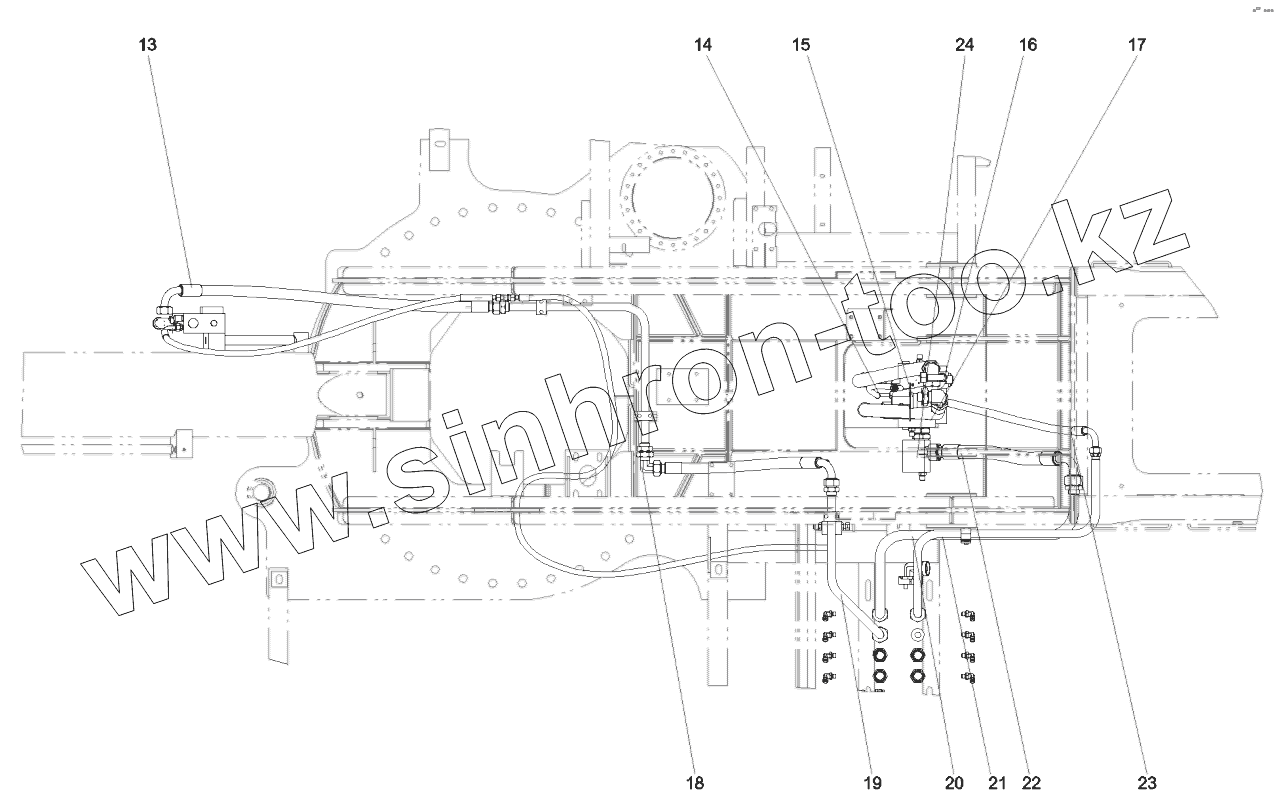

Позиция на иллюстрации	Заводской номер детали		Название детали
13	B230103001830		Hose
14	B230103000121		Hose, rubber
15	A229900003567		Connector, flange, right angle
16	A832613120000		Hose
17	11572934		Valve gp, switch, telescoping cylinder
18	A229900002525		Fitting, pipe
19	11569507		Pipe gp, steel
20	11569511		Pipe gp, steel
21	11569514		Pipe gp, steel
22	B230103004102		Hose, rubber
23	B230103000397		Hose, rubber
24	12229817		One-way overflow valve
