  5. 11501919 Pipeline, steel, outrigger

Каталог запасных частей к технике: SANY STC250H. 11501919 Pipeline, steel, outrigger

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

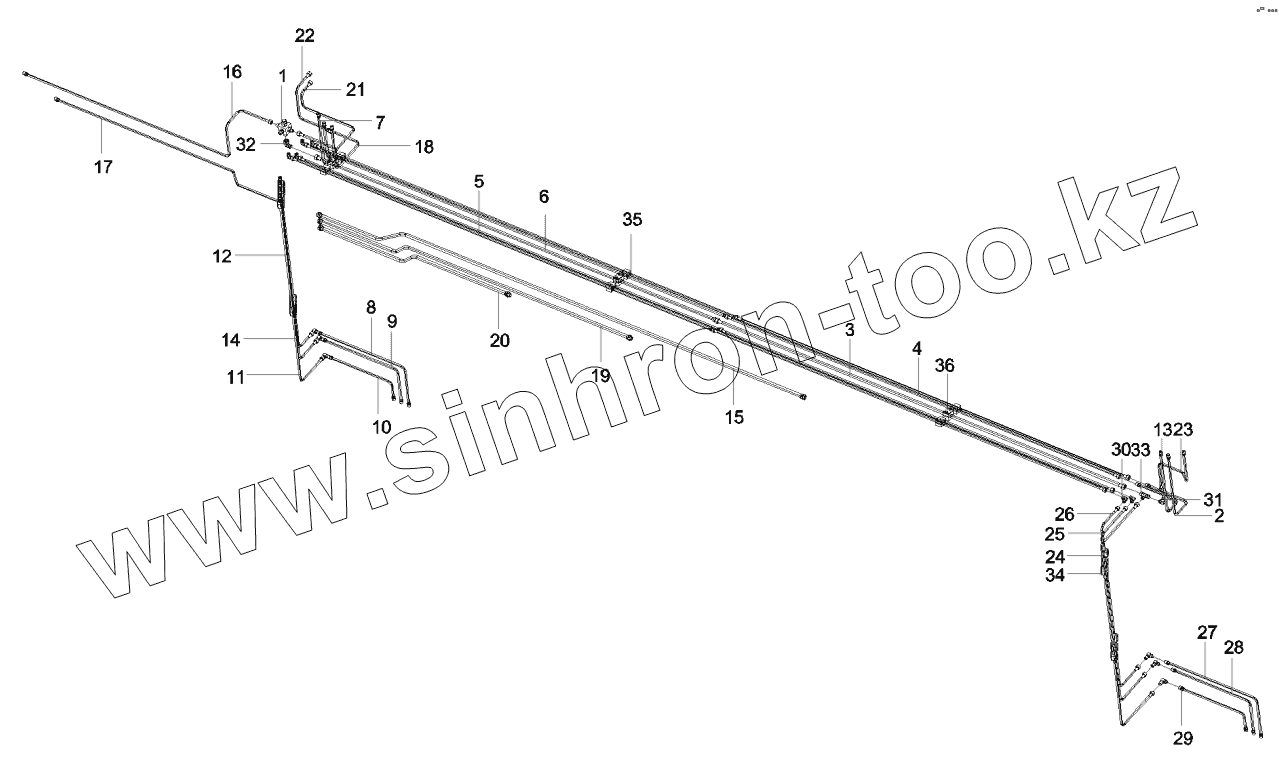

Позиция на иллюстрации Заводской номер детали Название детали
1 10138606 Connector gp, 5-way
2 11489108 Pipe gp, steel, rear left outrigger
3 11493794 Pipe gp 2, steel, oil return, outrigger
4 11492527 Steel pipe gp, left, frame
5 11493897 Steel pipe gp, left, frame
6 11494015 Pipe gp 1, steel, oil return, outrigger
7 11492560 Pipe gp 1, steel, front left outrigger
8 11492672 Pipe gp, steel, front right outrigger
9 11493365 Pipe gp, steel, front right outrigger
10 11493412 Pipe gp, steel, front right outrigger
11 11493433 Steel tube gp, front cross bridge
12 11493448 Steel tube gp, front cross bridge
13 11490469 Pipe gp, steel, rear left outrigger
14 11493451 Steel tube gp, front cross bridge
15 11494917 Steel pipe gp, center joint port
16 11493488 Steel pipe 1, 5th outrigger
17 11493506 Steel pipe 2, 5th outrigger
18 11493515 Pipe gp 1, steel, front left outrigger
19 11495035 Pipe gp, steel, chassis oil return
20 11495141 Steel pipe gp, oil suction, chassis
21 11493527 Pipe gp 1, steel, front left outrigger
22 11493642 Pipe gp 1, steel, front left outrigger
23 11490752 Steel pipe gp, outrigger, rear
24 11491035 Tube gp 3, steel, cross bridge, rear
25 11491372 Tube gp 2, steel, cross bridge, rear
26 11491600 Tube gp 1, steel, cross bridge, rear
27 11491636 Steel tube gp 3, outrigger, rh, rear
28 11491669 Steel tube gp 2, outrigger, rh, rear
29 11492423 Steel tube gp 1, outrigger, rh, rear
30 A229900005515 Connector, pipe
31 A229900003506 Connector, pipe
32 A229900002560 Connector, pipe
33 A229900002747 Connector, pipe
34 B229900002243 Pipe clamp, single
35 B229900002244 Pipe clamp, double
36 21026701 Clamp, pipe, single
