Каталог запасных частей к технике: SANY SDCY90K6C. B220200000151 Moteur

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
32
33
34
34
35
36
37
38
39
40
41
42
45
46
47
48
49
50
52
53
54
55
56
57
58
60
62
63

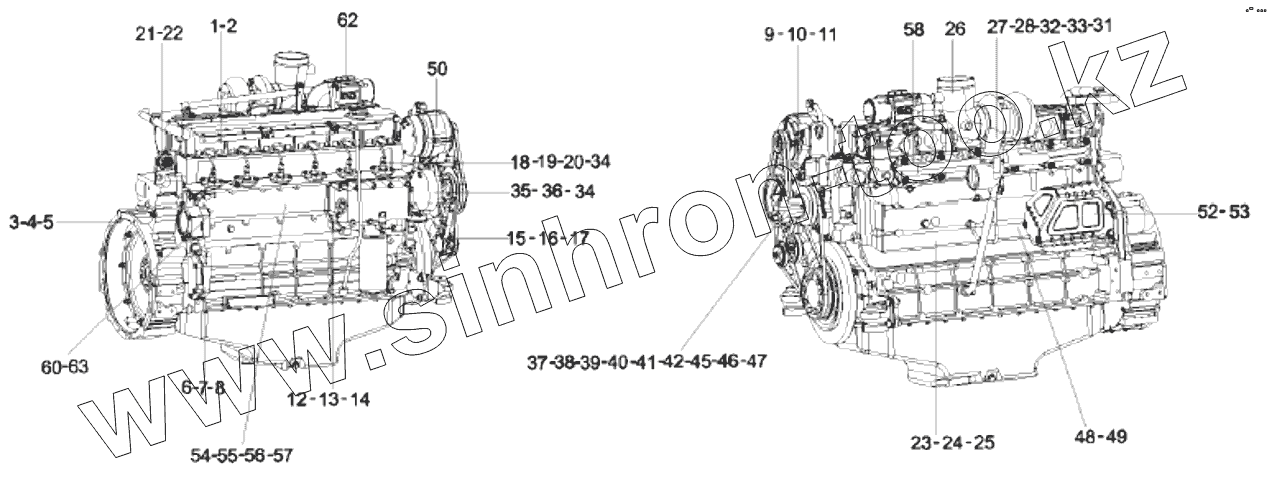

Позиция на иллюстрации Заводской номер детали Название детали
1 60139827 Cylinder head
2 60138566 Body, cylinder, level 2 phase 2
3 60139187 Lid, steering wheel
4 60139170 Flying
5 60139188 Plate, cover, flywheel housing
6 60139126 Carter, gear, timing
7 60139971 Camshaft, level 2 degree 2
8 60139845 Mechanism, crankshaft, level 2 phase 2
9 60138619 Front engine mounts
10 60138616 Suspension, hose, motor
11 60138534 Block, lifting
12 60138877 Filter, oil
13 60138856 Filter, oil, 2nd
14 60139134 System, fuel, separate fan mount
15 60138574 System, fuel
16 60138689 Pump, oil
17 60138656 Pump, oil, auxiliary
18 60139881 System, components and fuel injector, oil supply lines, level
19 60140459 Components, fuel injector
20 60138675 Pump, fuel injector, level 2 degree 2
21 60138476 Regulator
22 60138475 Regulator
23 60138921 Brake
24 60138572 Air dryer, fuel filter
25 60138882 Fuel filter
26 60138531 Integration, air intake
27 60140301 Integration, exhaust pipe, level 1 phase 1
28 60140300 Integration, exhaust pipe, level 2 phase 2
32 60139259 Fan, housing, impeller, high position, level 1 degree 1
33 60139260 Fan, housing, impeller, straight pipe, high position, level
34 60138903 Filter, oil cooling
35 60139936 Fan, bracket, water pump and thermostat housing
36 60139934 Body, housing, water pump and thermostat
37 60139205 Bracket, fan
38 60139208 Connector, clutch flange, fan shaft
39 60139209 Connector, clutch flange, fan shaft
40 60139206 Flange, clutch, fan bracket
41 60139207 Flange, clutch, fan bracket
42 60139937 Fan, water pump
45 60139200 Hub, fan
46 60139195 Fan
47 60138917 Clutch, solenoid, acceleration/deceleration, for driving
48 60138918 Clutch, solenoid, acceleration/deceleration, for stopping
49 60140411 Controller, speed, electronics
50 60138783 Alternator, ac, top right mounted
52 60138773 Engine, starter
53 60138775 Components, starter motor
54 60140358 Sensor, contact pressure
55 60138464 Components, electrical
56 60138461 Electrical system
57 60140386 Unit, control and cable, connection
58 60139286 Device, fixing wire
60 60138696 Kit, connection, axial hydraulic pump
62 60140412 Combination, installation, constant temperature heating, motor
63 60140017 Bag, repair
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
