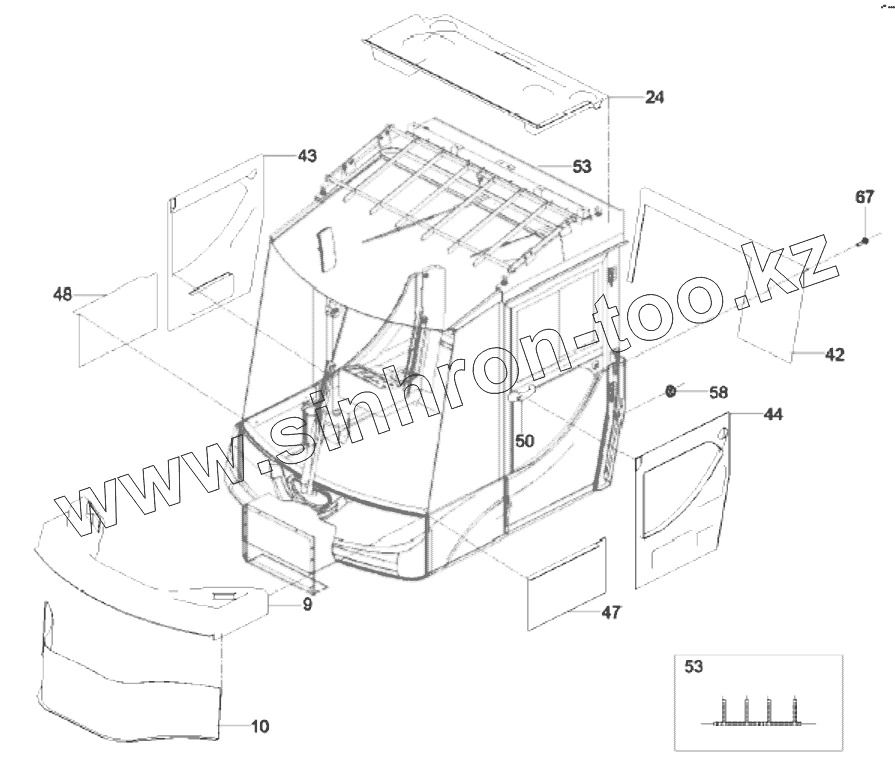

Каталог запасных частей к технике: SANY SDCY90K6C. 12373629 Subframe, cabin, container loader

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано QY50CS93 RSC45C RSC45C SDCY90K6C SSR120AC-8 STC250H STC250S5 STG190C-8 SY135C8 SY210C8 SY215C9 SY335C8 SY5250GJB6C SY5320THB 470C-8S SY55C9 SY65C SY75C SY75C9I2H SYM5190THBDZ 30 YZ18C YZ20C

Схема > Не выбрано Body, empty container loader, SDCY90K6C System, power and transmission Drive axle B220600000023 Axle, drive B220600000023 Axle, drive B220600000023 Axle, drive B220600000023 Axle, drive B220600000023 Axle, drive B220600000023 Axle, drive 11295457 Engine and gearbox B220803000011 Gearbox 60168563 Gearbox 60135352 Housing, torque converter 60135345 Gearbox 60135335 Tank body 60135334 Turbine rod 60135357 Steering wheel 60135333 Drive disc 60168561 Drive pump 60168572 Washer 60135346 Gear group 60135358 Swing shaft and high speed shaft 60135359 Front wheel drive and 2nd shaft 60168571 Low speed shaft 60135360 Output Shaft 60135343 Pressure Regulating Valve 60166684 Oil filling pump and filter 60135338 Electric control valve 60135339 Parts, control valve 60135341 Control valve cover 60135340 Cover, control valve 60135366 Protective cap 60135336 Pump cover 60135350 Pump adjuster 60135361 Pump connecting shaft sleeve and retaining ring 60168568 Pump, air charging and filter, pressure identification valve B220200000151 Moteur 60139827 Culasse 60138566 Body, cylinder, level 2 stage 2 60139187 Couvercle, volant 60139170 Volant 60139188 Plaque, couvercle, logement du volant 60139126 Housing, gear, timing 60139971 Camshaft, level 2 degree 2 60139845 Mechanism, crankshaft, stage 2 stage 2 60138619 Supports de moteur avant 60138616 Suspension, flexible, moteur 60138534 Bloc, levage 60138877 Filtre, huile 60138856 Filtre, huile, 2eme 60139134 System, fuel, separate fan bracket 60138574 Systeme, carburant 60138689 Pompe, huile 60138656 Pompe, huile, auxiliaire 60139881 System, components and fuel injector, oil supply lines, level 2 degree 2 60140459 Components, fuel injector 60138675 Pump, fuel injector, level 2 degree 2 60138476 Regulator 60138475 Regulator 60138921 Brake 2-158 60138572 Drier, fuel filter 60138882 Filter, fuel 60138531 Integration, air intake 60140301 Integration, tuyau d'echappement, niveau 1 phase 1 60140300 Integration, exhaust pipe, level 2 phase 2 60139259 Fan, Housing, Impeller, High Position, Level 1 Degree 1 60139260 Fan, Housing, Impeller, Straight Pipe, High Position, Level 2 Degree 2 60138903 Filter, oil cooling 60139936 Fan, bracket, water pump and thermostat housing 60139934 Body, housing, water pump and thermostat 60139205 Bracket, fan 60139208 Connector, clutch flange, fan shaft 60139209 Connector, clutch flange, fan shaft 60139206 Flange, clutch, fan bracket 60139207 Flange, clutch, fan bracket 60139937 Fan, water pump 60139200 Hub, fan 60139195 Fan 60138917 Clutch, solenoid, acceleration/deceleration, for driving 60138918 Clutch, solenoid, acceleration/deceleration, for stopping 60140411 Controller, speed, electronics 60138783 Alternator, AC, top right mounted 60138773 Motor, starter 60138775 Components, starter motor 60140358 Sensor, contact pressure 60138464 Components, electrical 60138461 System, electrical 60140386 Unit, control and cable, connection 60138696 Kit, connection, axial hydraulic pump 60138696 Kit, connection, axial hydraulic pump 60140412 Combination, Installation, Constant Temperature Heater, Motor 60140017 Bag, repair 60040043 Radiateur 10366996 Air intake 21031421 Filtre, air 11295461 Radiator 12951073 Extension SDCY90K7C.1.4.1 10367958 Air outlet 10267802 Fuel circuit 10267802 Fuel circuit 10267802 Fuel circuit 10126062 Frame 10182064 Mirror, right 10201511 Mirror, left 110201511 Mirror, left 10449033 Cover plate 10262314 Diagram, Mounting, Bracket, Upper 11087254 Kettle 3-20 11339493 Sleeve, protection 11339493 Sleeve, protection 12165664 Mast 12165664 Mast 12165664 Mast 12165664 Mast 11920919 Roller, rubber hose 12112538 Cylinder, lifting A810308990043 Pulley 10042642 Chain, small 11820743 Device, height measurement 10504903 Cylinder, swivel Operation Console Operation Console Operation Console Operation Console 60025888 Steering column, adjustable 12142583 Pedal, double 12153581 Plate, mounting, seat 10428246 Steering axle 10428246 Steering axle 10428246 Steering axle 10428228 Cylinder, steering 12373628 Sub-assembly, cabin, container loader 12373629 Subframe, cabin, container loader 12373629 Subframe, cabin, container loader 12373629 Subframe, cabin, container loader 12373629 Subframe, cabin, container loader 12373629 Subframe, cabin, container loader 60039123 Upper wiper A229900002144 Wiper, rear window 60039124 Front wiper 11245393 Fuel tank 10121326 Hydraulic oil tank 12613245 Body, hydraulic oil tank A180308000085 Lifter 10267894 Main body, spreader, SDJ90 II 13058114 Rating plate 10262859 Lifter 10262859 Lifter 0260812 Main beam 10985078 Left telescopic beam 10982198 Set, sliding block, post 11169797 Device, twist lock 10994918 Device, idler pulley 10992424 Mechanism, indicator, twist lock 11544105 Mechanism, twist lock 11330566 Cylinder, twist lock 11155488 Device, lock, twist lock 10986273 Right telescopic arm 10207101 Cylinder, telescopic A810410990223 Cushion, damping 10204097 Cylinder, side shift 11074915 Support A810201056410 System, electrical, rudder 10056330 Harness, assembly, spreader 12545756 Harness, rudder sliding rack 12545758 Harness, left, rudder 12545843 Harness, right, rudder 12545844 Harness, proximity switch 12545846 Harness, rudder signal lamp 12545855 Harness, tow chain left 12545861 Harness, tow chain right A810201052901 Control box, rudder A810201060380 System, hydraulic A810201060388 System, hydraulics, side shift A810201062478 Group, side shift valves A810201060387 System, hydraulic, telescopic and twist lock A810201060387 System, hydraulic, telescopic and twist lock A810201062480 Group, telescopic and twist lock valve, left A810201062479 Group, valve, hydraulic lock A810201062481 Group, right twist lock and telescopic valves 10125965 Mechanism, buffer Plate, steel 11171394 Handrail and platform 11171385 Platform 10122538 Cover pieces 11111562 Side door, left 11111561 Side door, right 12192634 System, electrical 12936366 SDCY90K7C II frame electrical installation 12936366 SDCY90K7C II frame electrical installation 12901989 Headlight, front 12912580 Klaxon, polyphonique 12901982 Light, rear, LED 12901990 Light, marker, side, LED 12934766 Interrupteur, alimentation 12934743 Battery 12912662 Sensor, liquid level 12912737 Sensor, pressure 12912711 Sensor, temperature 12916541 Switch, proximity 12912717 Sensor, temperature 12912575 Horn 12934225 Electrical installation of cabin SDCY90K7C II.8 12934225 Electrical installation of cabin SDCY90K7C II.8 12895470 Lamp, halogen 12893720 Indicator, alarm, LED 12930918 Right operation panel 12930821 Diagram, Layout, Right Operation Panel Switch 12930845 Diagram, layout, start and stop switch 12907177 Joystick 12933474 Armoire de commande SDCY90K7C II.8.2 12933190 Fixation armoire de commande MDGEB1111 12561952 Barre bus, cuivre, mise a la terre, chargeuses de conteneurs vides 12930696 Steering gear 12931304 Front operation panel 12930993 Schematic, Layout, Front Operation Panel Switch 12912862 Display screen, LCD 12916526 Switch, pedal 12912834 Mobile bollards RSTY23111 13141141 Electrical installation of mast SDCY80K6C.8 12912754 Sensor, pressure 12916538 Switch, proximity 12934357 LED indicator light MRSTY33341 12189943 Hydraulic system 11742235 System, brake and steering 11742235 System, brake and steering 11742235 System, brake and steering 11742235 System, brake and steering A810201062430 Group, brake control valve B220401001021 Pump, gear, double A819700001629 Group, cooling switching valve A810201069499 Diagram, assembly, component, brake valve B220401001141 Valve, brake B220401001141 Valve, brake B230103000592 Hose, rubber A810201069501 Drawing, assembly, component, accumulator B229900003708 Accumulator 10049698 Group, pre-fill valve 12301342 Diagram, assembly, components, steering gear B229900001996 Radiator A222100000281 Filter, oil return 12848515 Group, priority valve 12301919 Group, check valve 11742236 System, operation 11742236 System, operation 11742236 System, operation A810201069481 Schematic, mounting, left rocker 11155992 Group, pilot control valve 10049261 Group, multi-way valve B220401000804 Valve, multiport A810201069482 Drawing, partial installation, transition block A810201069483 Drawing, component, right swing cylinder A222100000367 Filter, oil return B229900001004 Radiator B220501000269 Motor, pinion A222100000128 Filter, pressurized oil 10182663 Arrangement, driving, mast 13084663 Right lifting valve group SDCY90K8H.11.3. 13084637 Left lift valve group SDCY90K8H11.3.1 12375705 Arrangement of tube clamping body SDCY90K7 II.11.5 12375705 Arrangement of tube clamping body SDCY90K7 II.11.5 11152955 System, air conditioning 11152955 System, air conditioning 11152955 System, air conditioning 60100848 Air conditioner 12913519 System, lubrication, central, automatic 12913519 System, lubrication, central, automatic 12912506 System, lubrication, steering axle 12912498 System, lubrication, mast 12912498 System, lubrication, mast 11160956 System, lubrication, inner mast 10234888 Rating plate 10234888 Rating plate 10234888 Rating plate 10587798 Electric plate, container loader 11520256 System, extinguisher

9

10

24

42

43

44

47

48

50

53

53

58

67

Позиция на иллюстрации	Заводской номер детали		Название детали
9	10950504		Console, instruments
10	11079913		Brattice of instrument panel SDCY90K7.9B-13
24	10881740		Parts, decoration, superior
42	10950535		Panel, wall, rear
43	10950515		Plate, decoration, right door
44	10950532		Plate, decoration, left door
47	11079915		Left side plate SDCY90K7.9B-14
48	11079916		Right side plate SDCY90K7.9B-15
50	60061748		Door knob
53	11775860		Beam, upper, cab
58	10144609		Rubber cap
67	11115687		Cover, internal hex

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
