  5. 11171394 Handrail and platform

Каталог запасных частей к технике: SANY SDCY90K6C. 11171394 Handrail and platform

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
34
34
34
35
35
35
35
36
36
37
38
38
38
38
38
39
39
39
39
39
40
40
41
41
42
43
44
45
46
47
48
49
50
50
51
51
52
52
53
54
55
56
57
58
59
60

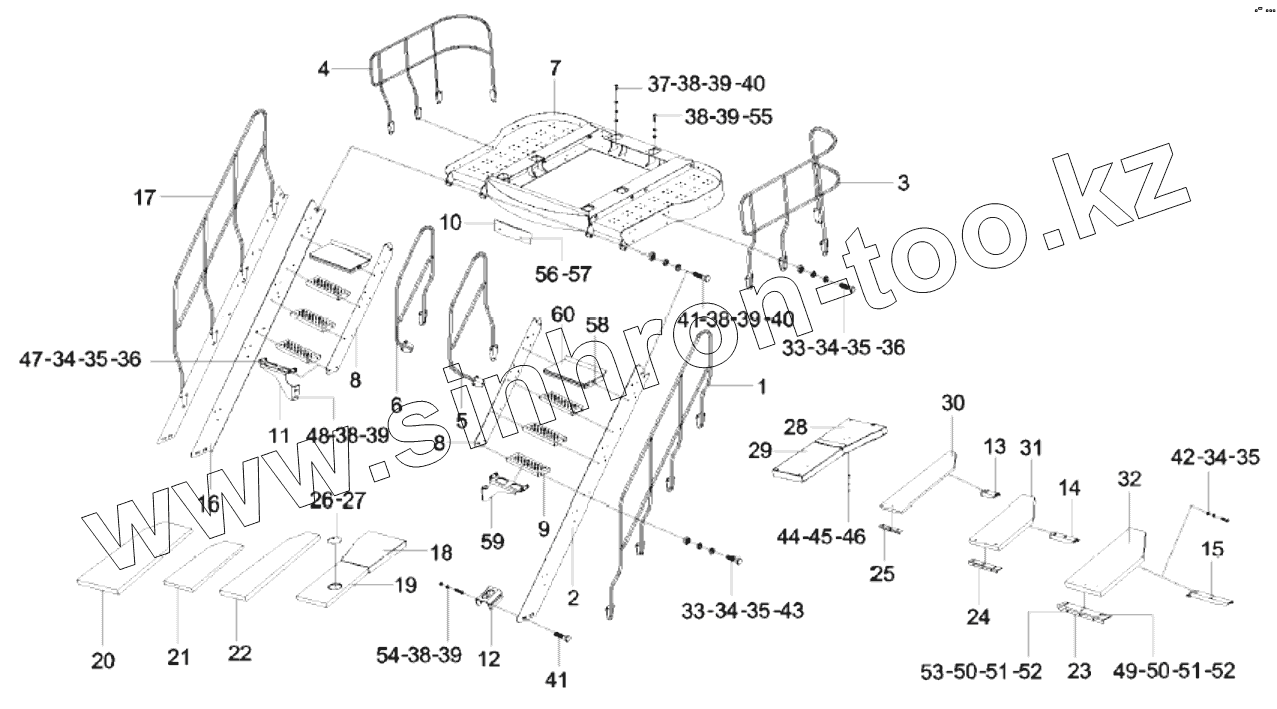

Позиция на иллюстрации Заводской номер детали Название детали
1 11279333 Handrail, ladder, left
2 11280535 Support, steps, (1)
3 10474120 Guardrail, left
4 10474151 Straight track
5 11335891 Handrail, secondary, left
6 11335416 Handrail, auxiliary, right
7 11171385 Platform
8 10477831 Support, steps, (2)
9 10122502 Pedal
10 11171393 Plate, gasket, front
11 10648913 Leg, support
12 10732970 Seat, assembly
13 10197413 Leg, support, short
14 10179276 Leg, support, long pedal
15 10197414 Leg, support, long
16 11280626 Support, steps, (3)
17 11279404 Handrail, ladder, straight
18 10488470 Pedal
19 10488475 Pedal
20 10122573 Pedal
21 10122576 Pedal
22 10122577 Pedal
23 10197530 Plate, support, long
24 10197531 Plate, support, medium
25 10197532 Plate, support, short
26 10372617 Plate, cover
27 A210211000012 Screw
28 10488492 Pedal
29 11568775 Stage
30 10122579 Pedal
31 10122584 Pedal
32 10122592 Pedal
33 A210111000040 Bolt
34 A210405000001 Washer
35 A210401000002 Washer
36 A210307000001 Nut
37 A210110000045 Bolt
38 A210401000004 Washer
39 A210405000003 Washer
40 A210307000040 Nut
41 A210111000230 Bolt
42 A210204000167 Screw
43 A210336000001 Nut
44 A210401000001 Washer
45 A210405000011 Washer
46 A210208000007 Screw, M10x20 GB79
47 A210111000042 Bolt
48 A210111000112 Bolt
49 A210111000293 Bolt
50 A210405000007 Washer
51 A210401000017 Washer
52 A210307000012 Nut
53 23002290 Screw
54 A210111000227 Bolt, M16x30 GB5783
55 A210111000291 Bolt
56 A210210000024 Screw
57 A210405000006 Washer
58 A210336000003 Nut
59 10649073 Leg, support
60 11359399 Pedal
