Каталог запасных частей к технике: SANY RSC45C. A221600000088 Air conditioning assembly KGT4601

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано QY50CS93 RSC45C RSC45C SDCY90K6C SSR120AC-8 STC250H STC250S5 STG190C-8 SY135C8 SY210C8 SY215C9 SY335C8 SY5250GJB6C SY5320THB 470C-8S SY55C9 SY65C SY75C SY75C9I2H SYM5190THBDZ 30 YZ18C YZ20C

Схема > Не выбрано 10451014 RSC45C Reach stecker body 10451014 RSC45C Reach stecker body 10440611 Power system RSC45.1 10440611 Power system RSC45.1 10440611 Power system RSC45.1 10440611 Power system RSC45.1 10440611 Power system RSC45.1 10440611 Power system RSC45.1 10450696 Hydraulic system RSC45M.2 10032938 Boom clamp layout 10434188 Boom layout RSC45M.2.2 A810299000205 Extension cylinder valve body RSC45.2.2.10 A810299000205 Extension cylinder valve body RSC45.2.2.10 A810201060300 Anti-sway hydraulic system SDJ450.3.1 A810201062339 Anti-sway valve group SDJ450.3.1.2 A810201062339 Anti-sway valve group SDJ450.3.1.2 A810201062373 Right valve block of lifting cylinder RSC45.2.2.9 A810201062372 Left valve block of lifting cylinder RSC45.2.2.8 10450139 Steering system RSC45M.2.4 10450139 Steering system RSC45M.2.4 A810201062404 Flow amplifier assembly RSC45.2.4.5 10397319 Radiating & Braking system RSC45M.2.3 10397319 Radiating & Braking system RSC45M.2.3 10397319 Radiating & Braking system RSC45M.2.3 10397319 Radiating& Braking system RSC45M.2.3 10266030 Assembly of large accumulator RSC45.2.3.32 A819700001629 Cooling switching valve group RSC45.2.3.16 A810201062430 Brake control valve group RSC45.2.3.15 10397015 Radiating device assembly RSC45M.2.3.33 10432886 Layout of movement RSC45M.2.5 10432886 Layout of movement RSC45M.2.5 A819700001387 Valve group for moving RSC45.2.5.7 10427001 Control system RSC45M.2.6 A810299000204 Guide valve group for oil supply RSC45.2.1.30 10450647 Frame pipeline layout RSC45M.2.1 10450647 Frame pipeline layout RSC45M.2.1 10450647 Frame pipeline layout RSC45M.2.1 10450647 Frame pipeline layout RSC45M.2.1 10450647 Frame pipeline layout RSC45M.2.1 10450647 Frame pipeline layout RSC45M.2.1 A810299000203 Back pressure valve group RSC45.2.1.29 A819700001390 Valve of spreader RSC45.2.1.31 10409053 Main valve layout RSC45M.2.1.1 A810399000723 Oil draining valve RSC45.2.1.39 A819700001385 One-way valve seat body RSC45.2.1.28 10441205 Frame assembly RSC45M.3 10468244 Moveable counterweight system RSC45M.3.7 10468244 Moveable counterweight system RSC45M.3.7 10941541 Platform assembly of rail RSC45C.3.6 10201511 Rearview mirror (L) SDCY90K7.2.13 10182064 Rearview mirror (R) SDCY90K7.2.11 11227769 Cab assembly SRSC45F.4 11227769 Cab assembly SRSC45F.4 10422631 Control console assembly RSC45M.5 10254333 Improved pedal RSC45.5.2A 10254333 Improved pedal RSC45.5.2A 10259957 Electrical system RSC45M.10 10259957 Electrical system RSC45M.10 A810201055623 Display panel assembly of front operation RSC45.6.3 A810201052817 Terminal box assembly RSC45.6.1 A810201055624 Right operation panel assembly RSC45.6.4 A810201052818 Control box assembly RSC45.6.5 10117173 Nameplate assembly RSC45M.7 10117173 Nameplate assembly RSC45M.7 10117173 Nameplate assembly RSC45M.7 10117173 Nameplate assembly RSC45M.7 10505432 Control function nameplate RSC45M.7.1 10424819 Steering shaft RSC45.8 10424819 Steering shaft RSC45.8 10424819 Steering shaft RSC45.8 10424819 Steering shaft RSC45.8 10421960 Steering cylinder RSC45.8.3 10697674 Lubrication system RSC45C.9 10971941 Frame lubrication system RSC45C.9.1 10971942 Boom lubrication system RSC45C.9.2 10971943 Steering axle lubrication system RSC45C.9.3 A810312000280 Spreader assembly SDJ450 A810201050344 Electrical system of spreader SDJ450.4 A810201052736 Control box assembly of spreader A810201060288 Hydraulic systemSDJ450.3 A810201060302 Hydraulic system of cross beam A810201060302 Hydraulic system of cross beam A810201062341 Telescopic valve block A810201062342 Side-shift valve group A810201060301 Turntable hydraulic system 11055733 Revolving valve group A A810421000786 Cross beam assembly SDJ450.2 A810421000786 Cross beam assembly SDJ450.2 A810421000786 Cross beam assembly SDJ450.2 10208424 Expansion Oil Cylinder A810421000815 Lock pole mechanism 10221660 Turning Lock Cylinder A810508000146 Nameplate SDJ450.6 10518408 Electrical nameplate of spreader A810421000785 Turntable assembly SDJ450.1 A810314000009 Slide block assembly 10419481 Boom assembly RSC45.10 10419481 Boom assembly RSC45.10 10419481 Boom assembly RSC45.10 10201648 Lifting cylinder RSC45.10.12B 10424848 Expansion Oil Cylinder Assy 10202942 Damping Oil Cylinder A810103070033 Traveling system RSC45.12 10945117 Working oil tank assembly RSC45C.13 10945119 Fuel tank assembly RSC45C.14 10945119 Fuel tank assembly RSC45C.14 10945119 Fuel tank assembly RSC45C.14 10679877 Movement mechanism of cab RSC45C.15 10084878 Air conditioning system RSC45M.9 A221600000088 Air conditioning assembly KGT4601 10557614 Fire fighting system RSC45C.20

1

2

3

4

5

6

7

8

9

10

11

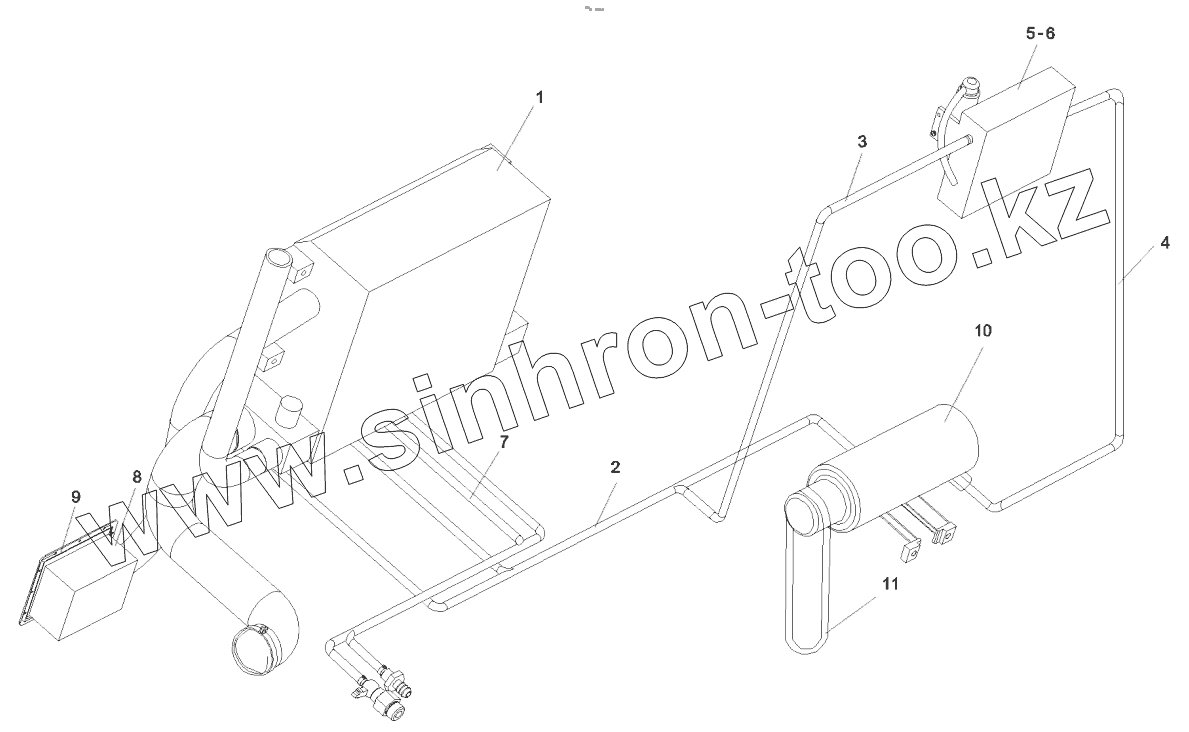

Позиция на иллюстрации	Заводской номер детали		Название детали
1	A221600000090		Main engine of air conditioner KGT4601-0
2	60030740		Refrigerant hose component
3	60030741		Refrigerant hose component
4	60030742		Refrigerant hose component
5	60005671		Condenser
6	A229900001682		Liquid reservoir assembly 515-4R
7	60030608		drainage rubber hose
8	60030607		corrugated air duct tube
9	A222100000278		Fresh air filter core X-TJ1010
10	60031711		Compressor
11	A230106000297		Belt 8PK1060

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
