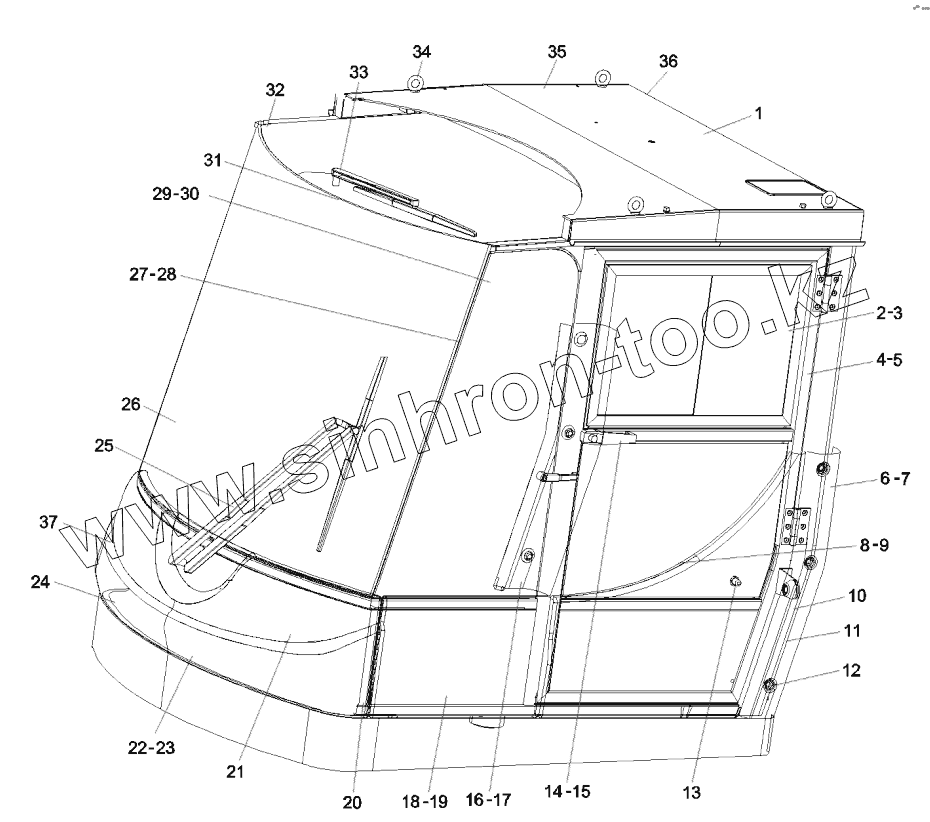

Каталог запасных частей к технике: SANY RSC45C. Cab assembly SRSC45F.4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 11152970 | Cab preassemble of reach stacker | |
| 2 | 10260234 | Sliding pane RSC45M.1-8A | |
| 3 | 10260237 | Sliding pane RSC45M.1-9A | |
| 4 | 10134881 | Right door rubber strip RSC45M.1-22 | |
| 5 | 10134884 | Left door rubber strip RSC45M.1-21 | |
| 6 | 10073345 | Outer covering parts -7RSC45M.10-7 | |
| 7 | 10073360 | Outer covering parts -1RSC45M.10-1 | |
| 8 | 10211575 | Lower glass of left door RSC45M.1-4A | |
| 9 | 10211578 | Lower glass of right door RSC45M.1-5A | |
| 10 | 60014126 | Sound insulation compound NSQC040T-GR 2000x1000x40 | |
| 11 | 10211580 | Rear window glass RSC45M.1-6A | |
| 12 | A210211000010 | Screw, M8x16 GB819.1 | |
| 13 | 60014124 | Pintle NSQC-GDQ | |
| 14 | A222200000009 | Door lock NBS502 | |
| 15 | 60028231 | 262.91 Door lock TriMark5090/5095 | |
| 16 | 10073347 | Outer covering parts -6RSC45M.10-6 | |
| 17 | 10073359 | Outer covering parts -2RSC45M.10-2 | |
| 18 | 11079915 | Left side plate SDCY90K7.9B-14 | |
| 19 | 11079916 | Right side plate SDCY90K7.9B-15 | |
| 20 | 10073348 | Outer covering parts -5RSC45M.10-5 | |
| 21 | 10902844 | Wind wiper XD210RSC45MII_1_1-59 | |
| 22 | 10073350 | Outer covering parts -4RSC45M.10-4 | |
| 23 | 10073358 | Outer covering parts -3RSC45M.10-3 | |
| 24 | A229900007320 | Sunshade JL-Z1385x600 Made in China | |
| 25 | 60039124 | Front window wiper assembly DC385-90B 120W/24V | |
| 26 | 10211530 | Front window glass RSC45M.1-1A | |
| 27 | A429900000187 | Exclusive bottom agent for cementing glass 176201 | |
| 28 | A420300000087 | Polyurethane adhesive agent 195616 | |
| 29 | 10211567 | Window glass, left RSC45M.1-2A | |
| 30 | 10211596 | Window glass, right RSC45M.1-7A | |
| 31 | A229900004406 | Inner rear view mirror 6792 Small | |
| 32 | 10211574 | Transom window glass RSC45M.1-3A | |
| 33 | A229900006776 | Transom window wiper assembly DC510 | |
| 34 | A210491000001 | Screw, M20GB825 | |
| 35 | A290000000354 | Gas spring YQ10/22-150-425-100N | |
| 36 | A229900002144 | Rear window wiper assembly ZD2231 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
