A810103070033 Traveling system RSC45.12

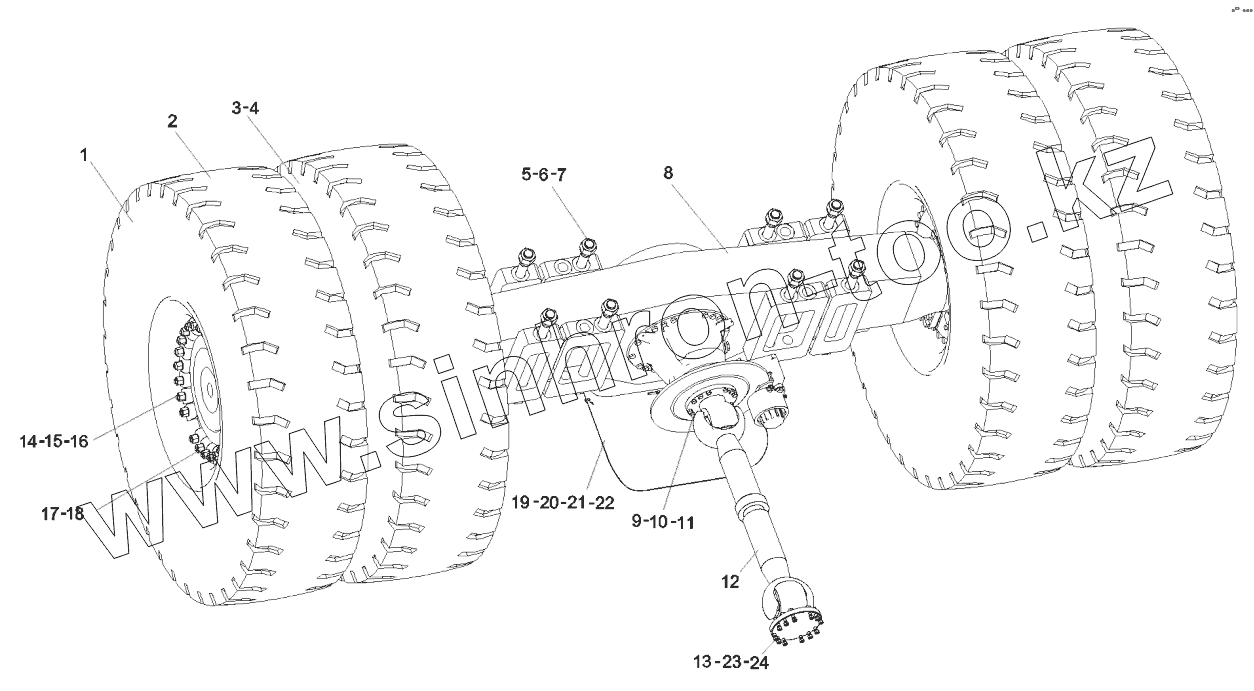

Каталог запасных частей к технике: SANY RSC45C. A810103070033 Traveling system RSC45.12
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
QY50CS93
RSC45C
RSC45C
SDCY90K6C
SSR120AC-8
STC250H
STC250S5
STG190C-8
SY135C8
SY210C8
SY215C9
SY335C8
SY5250GJB6C
SY5320THB 470C-8S
SY55C9
SY65C
SY75C
SY75C9I2H
SYM5190THBDZ 30
YZ18C
YZ20C
Схема
>
Не выбрано
10451014 RSC45-5M Reach Stacker body
10440611 Power system RSC45.1
10440611 Power system RSC45.1
10440611 Power system RSC45.1
10440611 Power system RSC45.1
10440611 Power system RSC45.1
10440611 Power system RSC45.1
10450696 Hydraulic system RSC45M.2
10032938 Boom clamp layout
10434188 Boom layout RSC45M.2.2
A810299000205 Extension cylinder valve body RSC45.2.2.10
A810299000205 Extension cylinder valve body RSC45.2.2.10
A810201060300 Anti-sway hydraulic system SDJ450.3.1
A810201062339 Anti-sway valve group SDJ450.3.1.2
A810201062339 Anti-sway valve group SDJ450.3.1.2
A810201062373 Right valve block of lifting cylinder RSC45.2.2.9
A810201062372 Left valve block of lifting cylinder RSC45.2.2.8
10450139 Steering system RSC45M.2.4
10450139 Steering system RSC45M.2.4
A810201062404 Flow amplifier assembly RSC45.2.4.5
10397319 Radiating & Braking system RSC45M.2.3
10397319 Radiating & Braking system RSC45M.2.3
10397319 Radiating & Braking system RSC45M.2.3
10397319 Radiating & Braking system RSC45M.2.3
10266030 Assembly of large accumulator RSC45.2.3.32
A819700001629 Cooling switching valve group RSC45.2.3.16
A810201062430 Brake control valve group RSC45.2.3.15
10397015 Radiating device assembly RSC45M.2.3.33
10432886 Layout of movement RSC45M.2.5
10432886 Layout of movement RSC45M.2.5
A819700001387 Valve group for moving RSC45.2.5.7
10427001 Control system RSC45M.2.6
A810299000204 Guide valve group for oil supply RSC45.2.1.30
10450647 Frame pipeline layout RSC45M.2.1
10450647 Frame pipeline layout RSC45M.2.1
10450647 Frame pipeline layout RSC45M.2.1
10450647 Frame pipeline layout RSC45M.2.1
10450647 Frame pipeline layout RSC45M.2.1
10450647 Frame pipeline layout RSC45M.2.1
A810299000203 Back pressure valve group RSC45.2.1.29
A819700001390 Valve of spreader RSC45.2.1.31
10409053 Main valve layout RSC45M.2.1.1
A810399000723 Oil draining valve RSC45.2.1.39
A819700001385 One-way valve seat body RSC45.2.1.28
10441205 Frame assembly RSC45M.3
10468244 Moveable counterweight system RSC45M.3.7
10468244 Moveable counterweight system RSC45M.3.7
10941541 Platform assembly of rail RSC45C.3.6
Cab assembly SRSC45F.4
11227769 Cab assembly SRSC45F.4
11154964 Control console assembly SRSC45F.5
11154848 Dual pedal SRSC45F.5.3
11154848 Dual pedal SRSC45F.5.3
11152307 Refashioned pedal SRSC45F.5.2
11152307 Refashioned pedal SRSC45F.5.2
10259957 Electrical system RSC45M.10
10259957 Electrical system RSC45M.10
A810201055623 Display panel assembly of front operation RSC45.6.3
A810201052817 Terminal box assembly RSC45.6.1
A810201055624 Right operation panel assembly RSC45.6.4
A810201052818 Control box assembly RSC45.6.5
10117173 Nameplate assembly RSC45M.7
10117173 Nameplate assembly RSC45M.7
10117173 Nameplate assembly RSC45M.7
10117173 Nameplate assembly RSC45M.7
10505432 Control function nameplate RSC45M.7.1
10424819 Steering shaft RSC45.8
10424819 Steering shaft RSC45.8
10424819 Steering shaft RSC45.8
10424819 Steering shaft RSC45.8
10421960 Steering cylinder RSC45.8.3
10697674 Lubrication system RSC45C.
10971941 Frame lubrication system RSC45C.9.1
10971942 Boom lubrication system RSC45C.9.2
10971943 Steering axle lubrication system RSC45C.9.3
10419481 Boom assembly RSC45.10
10419481 Boom assembly RSC45.10
10419481 Boom assembly RSC45.10
10201648 Lifting cylinder RSC45.10.12B
10424848 Expansion Oil Cylinder Assy
10202942 Damping Oil Cylinder
A810103070033 Traveling system RSC45.12
10945117 Working oil tank assembly RSC45C.13
10945119 Fuel tank assembly RSC45C.14
10945119 Fuel tank assembly RSC45C.14
10945119 Fuel tank assembly RSC45C.14
10679877 Movement mechanism of cab RSC45C.15
11156030 Air conditioning system SRSC45F.16
11156030 Air conditioning system SRSC45F.16
60051847 Air conditioning assembly KGT4610 Container Reach Stacker F
60051847 Air conditioning assembly KGT4610 Container Reach Stacker F
60040111 Air conditioning assembly KGT4607 for Empty Container Handler F
10557614 Fire fighting system RSC45C.20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Позиция на иллюстрации
Заводской номер детали
Название детали
1
A229900002057
Rim P251316
2
A210881000093
Tyre 18.00-25-40PR-E-4J
3
10180646
Opening lantern ring RSC45.12-1B
4
A820202003264
Middle lantern ring RSC45.12-2
5
A820204000388
Nut RSC45.12-3
6
A829900001442
Bolt RSC45.12-4
7
A210401000012
Washer, 36 GB93
8
B220600000011
Drive axle D102PL341/528-NLB8460
9
A829900001445
Drive shaft bolt(F) RSC45.12-5
10
A229900007628
Nut M10 Grade 10 Shibilao Hexagon flange
11
A210401000001
Washer
12
A229900002058
Drive shaft S20000.205.1130
13
A829900001448
Drive shaft bolt(Rear)RSC45.12-7
14
A820101313646
Jam plate for fixing air pipe RSC45.12-8
15
A210401000002
Washer
16
A210111000038
Bolt
17
10175223
Press plate RSC45.12-9C
18
10075010
Hub nut RSC45.12-10A
19
A210111000348
Bolt M8x12 GB5783 Grade 10.9
20
A210405000007
Washer
21
A210401000017
Washer
22
11346189
Oil proof plate SRSC45C.12.1
23
11342781
Sensor board SRSC45.1-72
24
11342780
Bracket of speed sensor SRSC45.1-73
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
