10432886 Layout of movement RSC45M.2.5

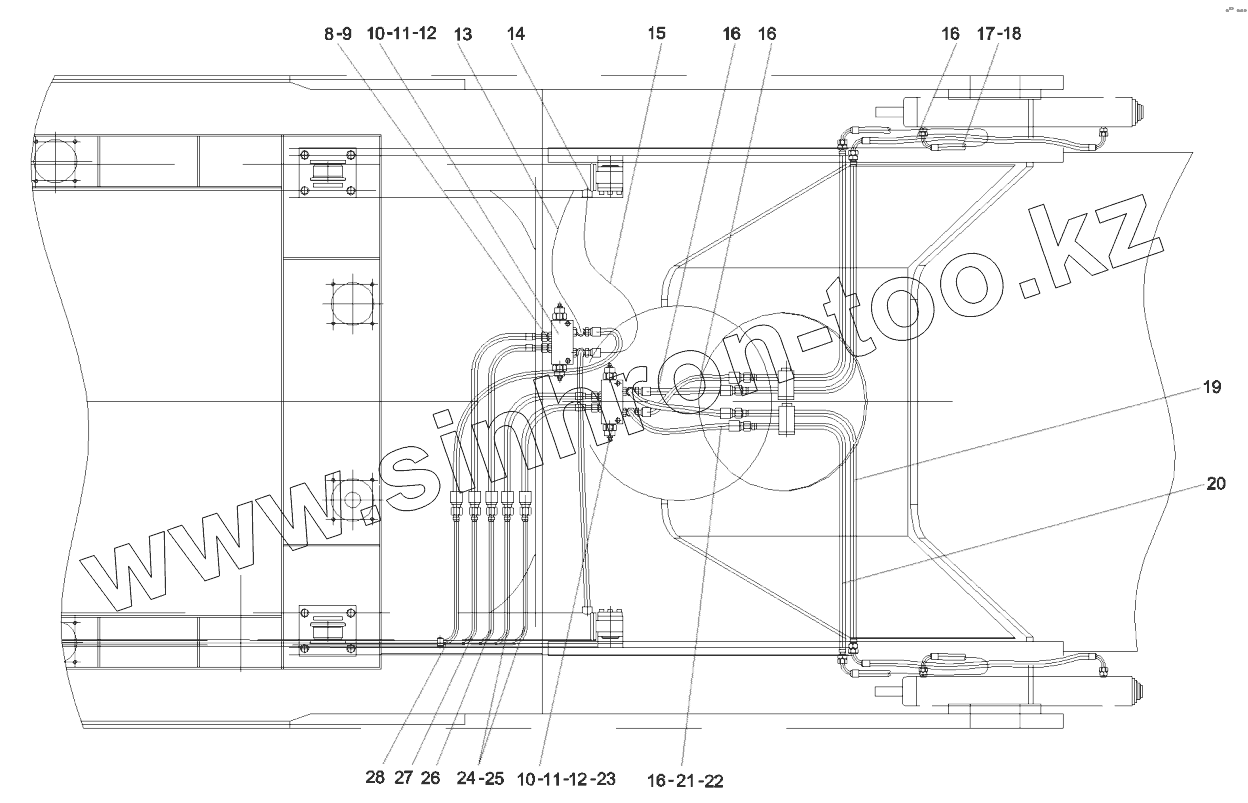

Каталог запасных частей к технике: SANY RSC45C. 10432886 Layout of movement RSC45M.2.5
