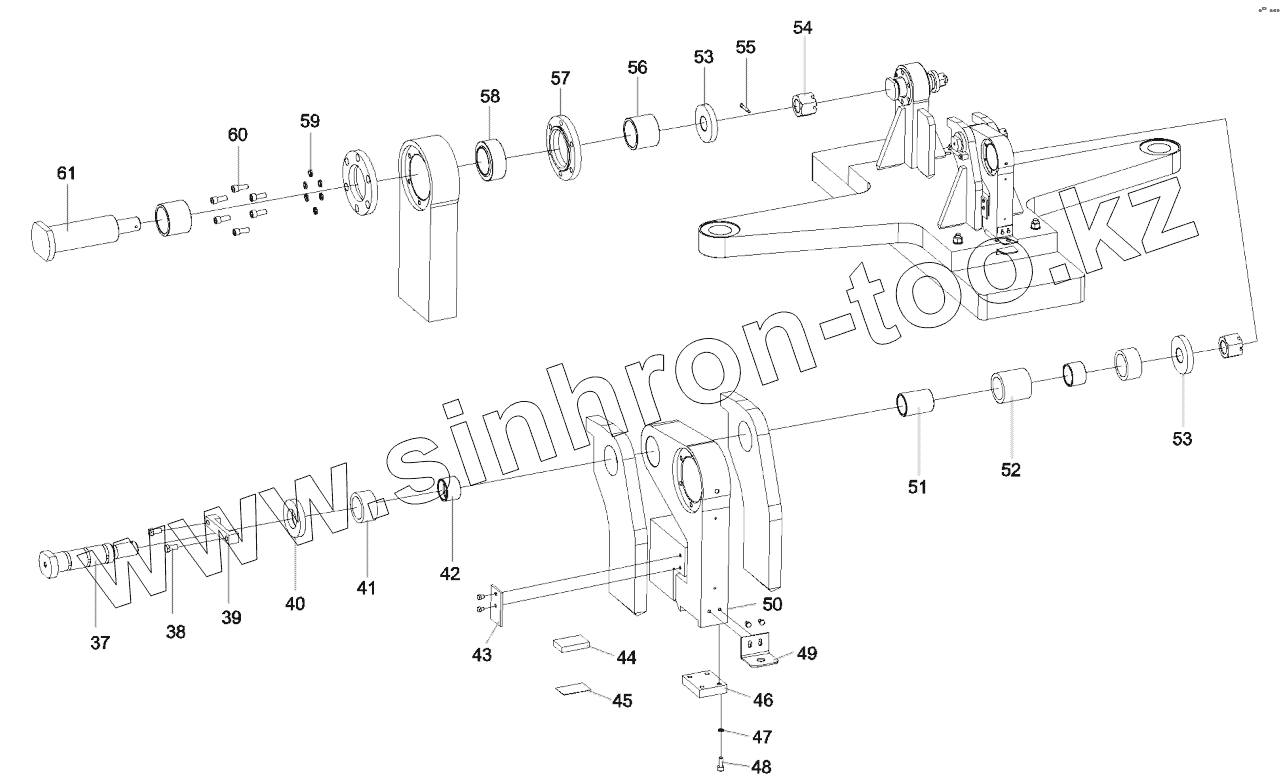

Каталог запасных частей к технике: SANY RSC45C. 10424819 Steering shaft RSC45.8

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
53
54
55
56
57
58
59
60
61
Позиция на иллюстрации Заводской номер детали Название детали
37 A820301020690 Shaft RSC45.8-30
38 A210111000119 Bolt
39 10575078 Stop RSC45.8A-76
40 A820102010538 Washer RSC45.8-41
41 A221500000196 Rubber bearing GZ60-80-40
42 A820202003381 Shaft sleeve RSC45.8-27
43 A820101314705 Baffle of slide block RSC45.8-37
44 A820699000475 Upper slide block RSC45.8-36
45 A820101314675 Adjusting spacer RSC45.8-34
46 A820699000474 Lower slide block RSC45.8-32
47 A210401000001 Washer
48 A210204000161 Screw
49 A820101313648 Bent plate for switch installation RSC45.8-33
50 10423742 Chain RSC45.8-38
51 A820202003382 Shaft sleeve RSC45.8-28
52 A221500000197 Rubber bearing GZ60-80-80
53 A820102010533 Washer RSC45.8-17
54 A210356000006 Nut M36x3GB9458
55 A210491000023 Pin
56 A820202003384 Shaft Sleeve RSC45.8-19
57 A820201000724 Bearing end cover RSC45.8-20
58 A221500000195 Joint bearing GEG70ES-2RSGB9163
59 A210401000002 Washer
60 A210204000021 Screw
61 A820301020689 Rotating shaft RSC45.8-18
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
