Каталог запасных частей к технике: SANY RSC45C. 10397015 Radiating device assembly RSC45M.2.3.33

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано QY50CS93 RSC45C RSC45C SDCY90K6C SSR120AC-8 STC250H STC250S5 STG190C-8 SY135C8 SY210C8 SY215C9 SY335C8 SY5250GJB6C SY5320THB 470C-8S SY55C9 SY65C SY75C SY75C9I2H SYM5190THBDZ 30 YZ18C YZ20C

Схема > Не выбрано 10451014 RSC45-5M Reach Stacker body 10440611 Power system RSC45.1 10440611 Power system RSC45.1 10440611 Power system RSC45.1 10440611 Power system RSC45.1 10440611 Power system RSC45.1 10440611 Power system RSC45.1 10450696 Hydraulic system RSC45M.2 10032938 Boom clamp layout 10434188 Boom layout RSC45M.2.2 A810299000205 Extension cylinder valve body RSC45.2.2.10 A810299000205 Extension cylinder valve body RSC45.2.2.10 A810201060300 Anti-sway hydraulic system SDJ450.3.1 A810201062339 Anti-sway valve group SDJ450.3.1.2 A810201062339 Anti-sway valve group SDJ450.3.1.2 A810201062373 Right valve block of lifting cylinder RSC45.2.2.9 A810201062372 Left valve block of lifting cylinder RSC45.2.2.8 10450139 Steering system RSC45M.2.4 10450139 Steering system RSC45M.2.4 A810201062404 Flow amplifier assembly RSC45.2.4.5 10397319 Radiating & Braking system RSC45M.2.3 10397319 Radiating & Braking system RSC45M.2.3 10397319 Radiating & Braking system RSC45M.2.3 10397319 Radiating & Braking system RSC45M.2.3 10266030 Assembly of large accumulator RSC45.2.3.32 A819700001629 Cooling switching valve group RSC45.2.3.16 A810201062430 Brake control valve group RSC45.2.3.15 10397015 Radiating device assembly RSC45M.2.3.33 10432886 Layout of movement RSC45M.2.5 10432886 Layout of movement RSC45M.2.5 A819700001387 Valve group for moving RSC45.2.5.7 10427001 Control system RSC45M.2.6 A810299000204 Guide valve group for oil supply RSC45.2.1.30 10450647 Frame pipeline layout RSC45M.2.1 10450647 Frame pipeline layout RSC45M.2.1 10450647 Frame pipeline layout RSC45M.2.1 10450647 Frame pipeline layout RSC45M.2.1 10450647 Frame pipeline layout RSC45M.2.1 10450647 Frame pipeline layout RSC45M.2.1 A810299000203 Back pressure valve group RSC45.2.1.29 A819700001390 Valve of spreader RSC45.2.1.31 10409053 Main valve layout RSC45M.2.1.1 A810399000723 Oil draining valve RSC45.2.1.39 A819700001385 One-way valve seat body RSC45.2.1.28 10441205 Frame assembly RSC45M.3 10468244 Moveable counterweight system RSC45M.3.7 10468244 Moveable counterweight system RSC45M.3.7 10941541 Platform assembly of rail RSC45C.3.6 Cab assembly SRSC45F.4 11227769 Cab assembly SRSC45F.4 11154964 Control console assembly SRSC45F.5 11154848 Dual pedal SRSC45F.5.3 11154848 Dual pedal SRSC45F.5.3 11152307 Refashioned pedal SRSC45F.5.2 11152307 Refashioned pedal SRSC45F.5.2 10259957 Electrical system RSC45M.10 10259957 Electrical system RSC45M.10 A810201055623 Display panel assembly of front operation RSC45.6.3 A810201052817 Terminal box assembly RSC45.6.1 A810201055624 Right operation panel assembly RSC45.6.4 A810201052818 Control box assembly RSC45.6.5 10117173 Nameplate assembly RSC45M.7 10117173 Nameplate assembly RSC45M.7 10117173 Nameplate assembly RSC45M.7 10117173 Nameplate assembly RSC45M.7 10505432 Control function nameplate RSC45M.7.1 10424819 Steering shaft RSC45.8 10424819 Steering shaft RSC45.8 10424819 Steering shaft RSC45.8 10424819 Steering shaft RSC45.8 10421960 Steering cylinder RSC45.8.3 10697674 Lubrication system RSC45C. 10971941 Frame lubrication system RSC45C.9.1 10971942 Boom lubrication system RSC45C.9.2 10971943 Steering axle lubrication system RSC45C.9.3 10419481 Boom assembly RSC45.10 10419481 Boom assembly RSC45.10 10419481 Boom assembly RSC45.10 10201648 Lifting cylinder RSC45.10.12B 10424848 Expansion Oil Cylinder Assy 10202942 Damping Oil Cylinder A810103070033 Traveling system RSC45.12 10945117 Working oil tank assembly RSC45C.13 10945119 Fuel tank assembly RSC45C.14 10945119 Fuel tank assembly RSC45C.14 10945119 Fuel tank assembly RSC45C.14 10679877 Movement mechanism of cab RSC45C.15 11156030 Air conditioning system SRSC45F.16 11156030 Air conditioning system SRSC45F.16 60051847 Air conditioning assembly KGT4610 Container Reach Stacker F 60051847 Air conditioning assembly KGT4610 Container Reach Stacker F 60040111 Air conditioning assembly KGT4607 for Empty Container Handler F 10557614 Fire fighting system RSC45C.20

1

2

3

4

5

6

7

8

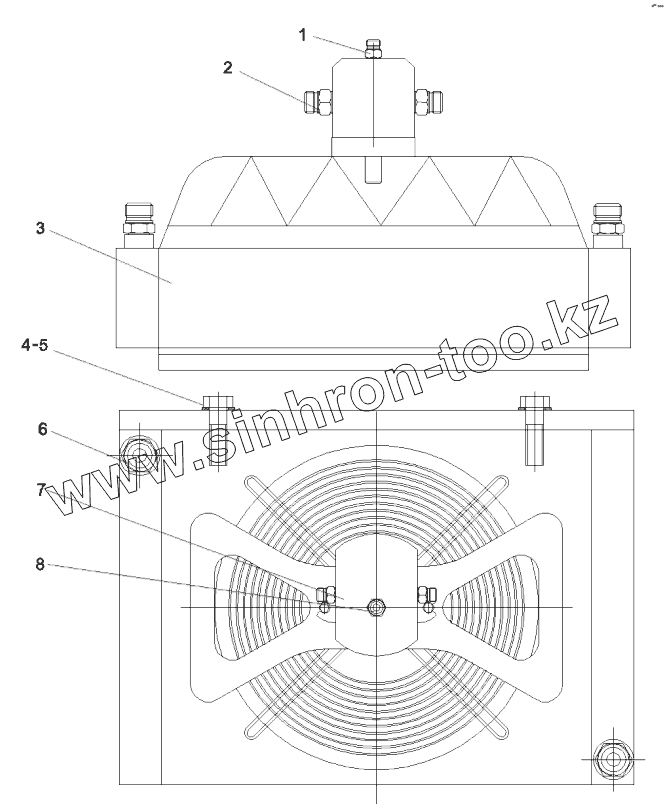

Позиция на иллюстрации	Заводской номер детали		Название детали
1	B210780000036		Connector, pipe
2	B210780000131		Connector, hose, GE18LMEDOMDA3C
3	B229900001004		Radiator, Y920x620x400-50Q/SY015028
4	A210111000012		Bolt
5	A210401000001		Washer
6	B210780001181		Pipe joint GE35LREDOMDA3C
7	B220501000269		Motor, gear
8	A210111000092		Bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
