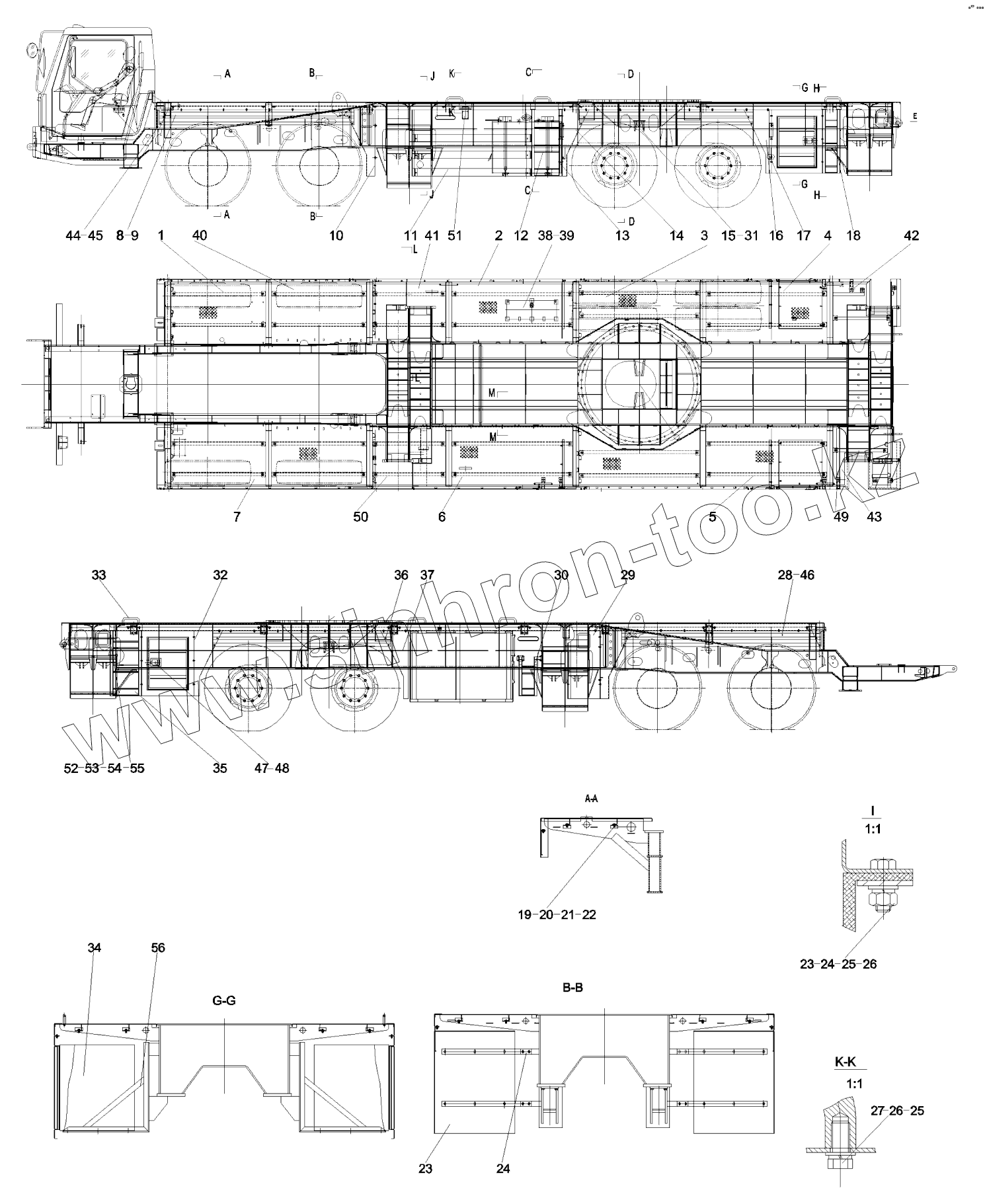

Каталог запасных частей к технике: SANY QY50CS93. 10671016 Platform & bracket assy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 10668682 | Platform, front, right | |
| 2 | 10669419 | Cover plate, tank, hydrulic oil | |
| 3 | 10669520 | Platform, central, right | |
| 4 | 10669843 | Platform, rear, right | |
| 5 | 10670853 | Platform, rear, left | |
| 6 | 10670863 | Cover plate, fuel tank | |
| 7 | 10671012 | Platform, front, left | |
| 8 | 10173426 | Plate, rubber, front, left | |
| 9 | 10173713 | Pressure plate, rubber, front, left | |
| 10 | 10574175 | Fender, front, left | |
| 11 | 10569366 | Fender assy, left | |
| 12 | 10575004 | Step assy, front, left | |
| 13 | A210111000094 | Bolt | |
| 14 | 10575050 | Fender, middle, left | |
| 15 | 10173774 | Plate, rubber, rear, left | |
| 16 | 10577210 | Repair kit assy, rear, left | |
| 17 | 10575536 | Fender, rear | |
| 18 | 10173873 | Step assy, rear, left | |
| 19 | A210111000090 | Bolt | |
| 20 | A210401000017 | Washer | |
| 21 | A210405000007 | Washer | |
| 22 | A210307000012 | Nut | |
| 23 | 10575929 | Fender, front, right | |
| 24 | 10173778 | Connector, fender | |
| 25 | A210401000001 | Washer | |
| 26 | A210405000011 | Washer | |
| 27 | A210111000018 | Bolt | |
| 28 | 10173786 | Plate, rubber, front, right | |
| 29 | 10575915 | Cover, outrigger, right | |
| 30 | 10173872 | Step assy, right | |
| 31 | 10173791 | Pressure plate, rubber, rear, right | |
| 32 | 10577733 | Door assy, repair kit, rear, right | |
| 33 | A290000002357 | Handle, aluminum | |
| 34 | 10173923 | Repair kit assy | |
| 35 | 10173889 | Step assy, rear, right | |
| 36 | A210202000042 | Screw | |
| 37 | 10576158 | Fender, middle, right | |
| 38 | 10002419 | Cap installation assy, fuel tank | |
| 39 | A210210000007 | Screw | |
| 40 | 10864869 | Platform, front, right | |
| 41 | 10864870 | Cover plate, outrigger, front, right | |
| 42 | 10864871 | Cover, outrigger, rear, right | |
| 43 | 10864872 | Cover, outrigger, rear, left | |
| 44 | 10864823 | Connector, right | |
| 45 | 10864824 | Connector, left | |
| 46 | 10782445 | Pressure plate, rubber, front, right | |
| 47 | A222200000042 | Door lock | |
| 48 | 11104916 | Strip, rubber, seal | |
| 49 | 10131490 | Rod, connecting | |
| 50 | 11179206 | Cover plate, outrigger, front, left | |
| 51 | 10015945 | Bracket, switch, accelerator, outrigger | |
| 52 | A210210000017 | Screw, M6Ч20GB818 | |
| 53 | A210405000006 | Washer | |
| 54 | A210401000016 | Washer | |
| 55 | A210307000016 | Nut | |
| 56 | 11214503 | tool case bracket |
