17
19
21
48
49
50
56
61
61
62
63
102
133

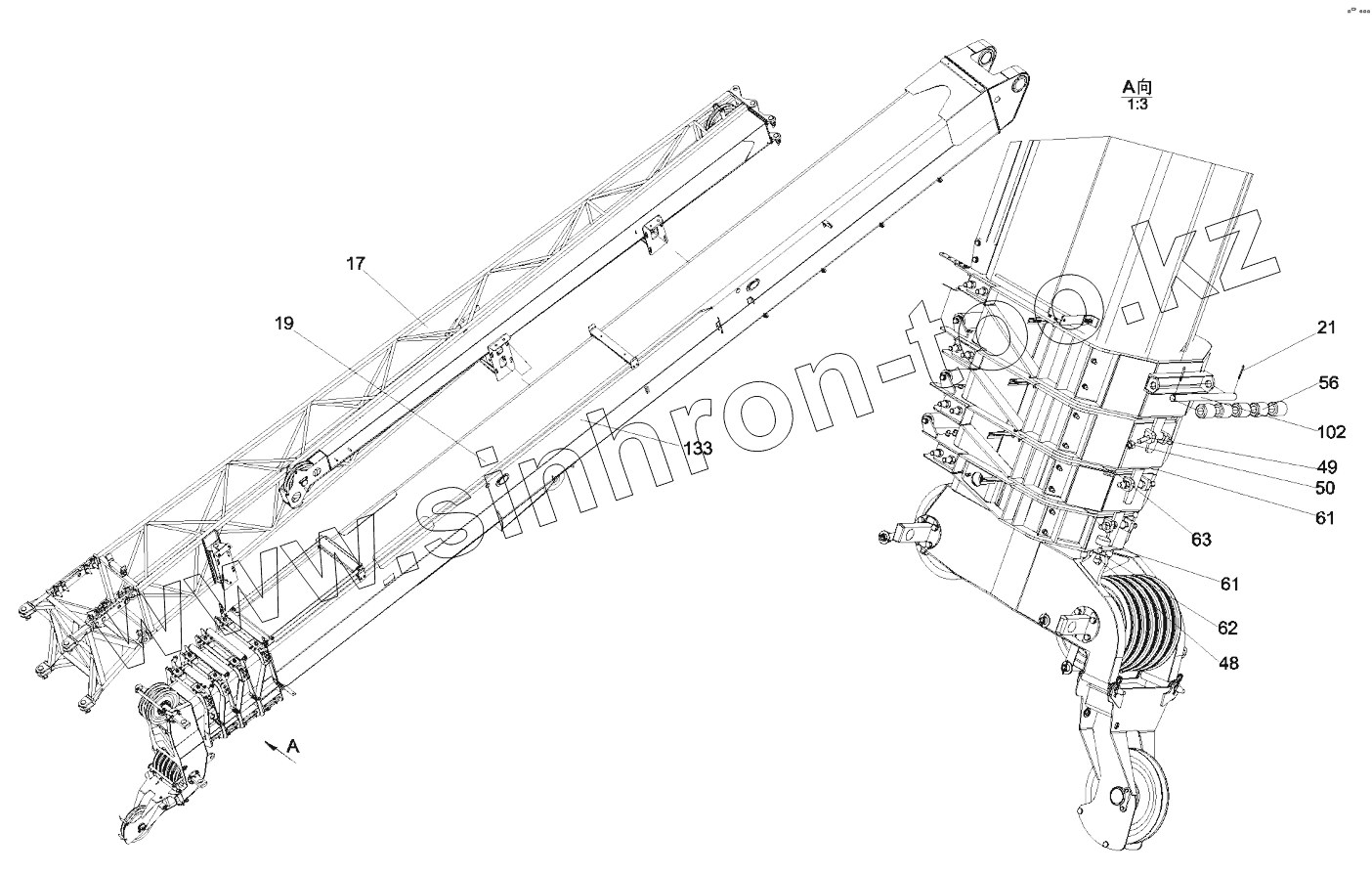

Позиция на иллюстрации
Заводской номер детали
Название детали
17
10667459
Jib
19
10649855
Telescoping mechanism
21
A210501000039
Pin
48
A210204000160
Screw
49
A210307000005
Nut
50
A210111000117
Bolt
56
10138993
Sleeve
61
10041332
Block, bumper
62
10041333
Pillow, adjusting
63
10041336
Pillow, adjusting
102
10260636
Shaft
133
10047105
Cylinder assy, boom, telescoping
