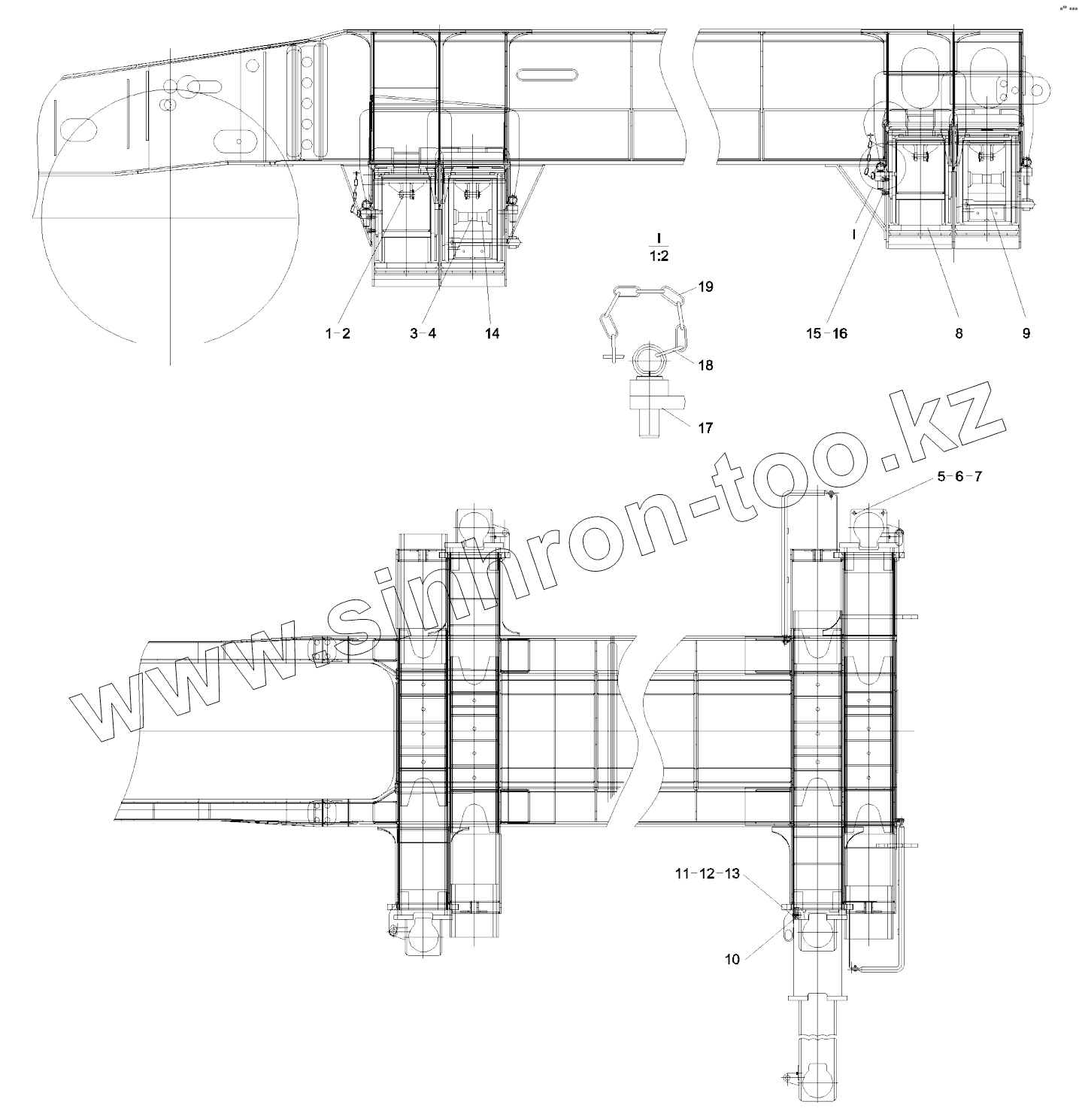

10467307 Outrigger assy
Каталог запасных частей к технике: SANY QY50CS93. 10467307 Outrigger assy
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
QY50CS93
RSC45C
RSC45C
SDCY90K6C
SSR120AC-8
STC250H
STC250S5
STG190C-8
SY135C8
SY210C8
SY215C9
SY335C8
SY5250GJB6C
SY5320THB 470C-8S
SY55C9
SY65C
SY75C
SY75C9I2H
SYM5190THBDZ 30
YZ18C
YZ20C
Схема
>
Не выбрано
10661213 QY50CS93 Truck Crane body
10217854 Chassis, truck crane
10224206 Cab and air-condition device
10218631 Cab assy, operator, installation
60019171 Cab assy, operator
10223762 Air conditioner, chassis
10214285 Power system device
10199380 Suspension, diesel engine
10209484 Oil supply system
10207320 Air inlet system
10210603 Exhaust system
10208511 Cooling system
10449538 Steering system device
A810305000030 Hydraulic steering system
A810305990026 Steering axle assy, bracket assy
10435089 Piping, steering
A810299019000 Steering reservoir assy
10203390 Drive system device
10597787 Clutch, operation mechanism
10930898 Transimission, operation mechanism
A810103000242 Drive shaft device
60033734 Shaft, transmission
10633857 PTO & transmission device
10221787 Main body, structure
10182108 Fifth Outrigger Oil Cylinder
A810312000264 Float, 5th outrigger
10131163 Boom bracket
10267537 Cover installation assy, diesel engine
10130755 Fender assy
10671016 Platform & bracket assy
10575004 Step assy, front, left
10173873 Step assy, rear, left
10002419 Cap installation assy, fuel tank
10173872 Step assy, right
10173889 Step assy, rear, right
10115869 Operation device, chassis
10041143 Tow hook
00000196 Bracket assy, spare wheel
10467307 Outrigger assy
10865623 Horizontal Cylinder
10865624 Horizontal Cylinder
10865628 Horizontal Cylinder
10059849 Front vertical oil cylinder
10059851 Rear vertical oil cylinder
A810399000584 Float
10054662 Suspension device, axle
A810314000011 Suspension system, front
A810314000010 Suspension assy, rear
10136396 Suspension walking beam assy
11448811 Cent support assy
A229900003121 Spring assembly, rear steel plate
10428901 Wheel & tire
10238570 Brake system device
10490133 Pipe assy, steel , valve, air inlet, protective, four-loop
10490247 Pipe assy, steel, valve, air inlet, dryer
10135646 Band assy, reservoir, air
10180366 Hydraulic system, chassis
10180365 Pipeline, hydraulic, chassis
10180365 Pipeline, hydraulic, chassis
10180365 Pipeline, hydraulic, chassis
10180365 Pipeline, hydraulic, chassis
A810201023784 Piping, outrigger, front
A810201062325 Catcher assy, oil
11008111 Bracket assy, oil inlet
10138579 Multi-way valve assy
A810201023785 Piping, outrigger, rear
10180367 Oil pump assy
11008120 Piping, hydraulic, elevating
11234474 Valve assy, balance, luffing
00002137 Joint, rotary
10095616 Installation, cylinder, hydraulic, chassis
10095616 Installation, cylinder, hydraulic, chassis
A810201069383 Joint, oil return
10217425 Electric system, chassis
10217425 Electric system, chassis
10217425 Electric system, chassis
10957737 Installation assy, battery
11031379 Layout, installation, plate, name
10663087 Boom
10663087 Boom
10663087 Boom
10663087 Boom
10663087 Boom
10663087 Boom
10667459 Jib
A819700000631 Pulley subassy
10649855 Telescoping mechanism
10649855 Telescoping mechanism
10649337 Bracket assy, guide wheel
10587474 Pulley assy
10583572 Bracket, cylinder
10048659 Pulley assy
10048663 Pulley assy
10047105 Cylinder assy, boom, telescoping
10047023 Telescopic boom oil cylinder
10047028 Telescopic boom oil cylinder
10042264 Roller, rope support
10042317 Roller, rope guard
10042316 Roller
10042078 Roller, rope support
10585149 Pulley, boom end
11205605 Pulley assy
10789107 Swing table assy
10059435 Amplitude Oil Cylinder
A810302081015 Bearing, swing
A810302030079 Swing mechanism
10779330 Cover, swing frame
10764978 Footstep
10057072 Fixing, shaft, triple-hinge
10171030 Counterweight subassy
10123663 Mirror assy
A810308000044 Elevating mechanism
10003107 Rope guard
10172980 Cab, operator, superstructure
11156301 Cab, operator
10452422 Operation device assy
10225860 Protection device
10136970 Air conditioner, cab, operator
10136483 Heater, cab, operator
10057484 Hydraulic system, superstructure
10124601 Piping, hydraulic, superstructure
10124601 Piping, hydraulic, superstructure
10124601 Piping, hydraulic, superstructure
10118526 Piping, cylinder, telescoping
10905927 Switching valve, telescoping cylinder
A810201062444 Adaptor seat assy, 4-way
A810201062445 Adaptor seat assy, 5-way
11008088 Valve assy, check
11008465 Master control&oil draining circuit
10117048 Assembling assy, block, valve, master control
11007924 Adaptor body assy, 5-way
11159276 Piping, pressure measurement
10115809 Assembling assy, motor, winch
11008069 Valve assy, balance, winch
11008070 Block, transferable
10995938 Valve assy, check
10114704 Assembling assy, valve, main
A810201062455 Valve assembling assy, solenoid
10118515 Piping, superstructure swing & air-conditioner
11242934 Valve assy, control, air-conditioner
11008089 Valve assy, shuttle
10138470 Valve assy, throttle, check
11011669 Cushion valve assy, swing
10138667 Block, relief, brake
11127475 Motor assy, air-conditioner
10182732 Electrical system
A810201055589 Electrical device, boom
11141483 Harness 2, boom
10166002 Harness, boom
10010739 Detctor subassy, overwind
10044528 Weight hammer
10044511 Weight hammer
10182622 Electrical system, swing table
10181950 Layout, panel, operation
10182609 Harness, sensor, pressure
10117085 Conduction ring subassy
10181949 Harness, solenoid valve
10142437 Harness 1
10140655 Lamp subassy, outline, rear
10181910 Electrical system, jib
10181901 Harness 1, jib
10181902 Harness 2, jib
10022380 Weight hammer, ring
10203754 Layout, plate, name
10037105 Hook, auxiliary
10137968 Hook, auxiliary, subassy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Позиция на иллюстрации
Заводской номер детали
Название детали
1
A210508000125
Shaft, pin
2
A210501000008
Pin
3
10009421
Pin shaft
4
A210416000048
Ring, retainer
5
A210111000222
Bolt
6
A210401000006
Washer
7
A210405000008
Washer
8
10467257
Box 1, cylinder, extender
9
10467276
Box 2, cylinder, extender
10
10710007
Stopper
11
A210111000038
Bolt
12
A210401000002
Washer
13
A210405000001
Washer
14
10009419
Spacer
15
A210111000041
Bolt
16
A210307000001
Nut
17
A810420000979
Lock pin welding
18
A229900000176
Ring, key
19
11053706
Spacer Sleeve
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
